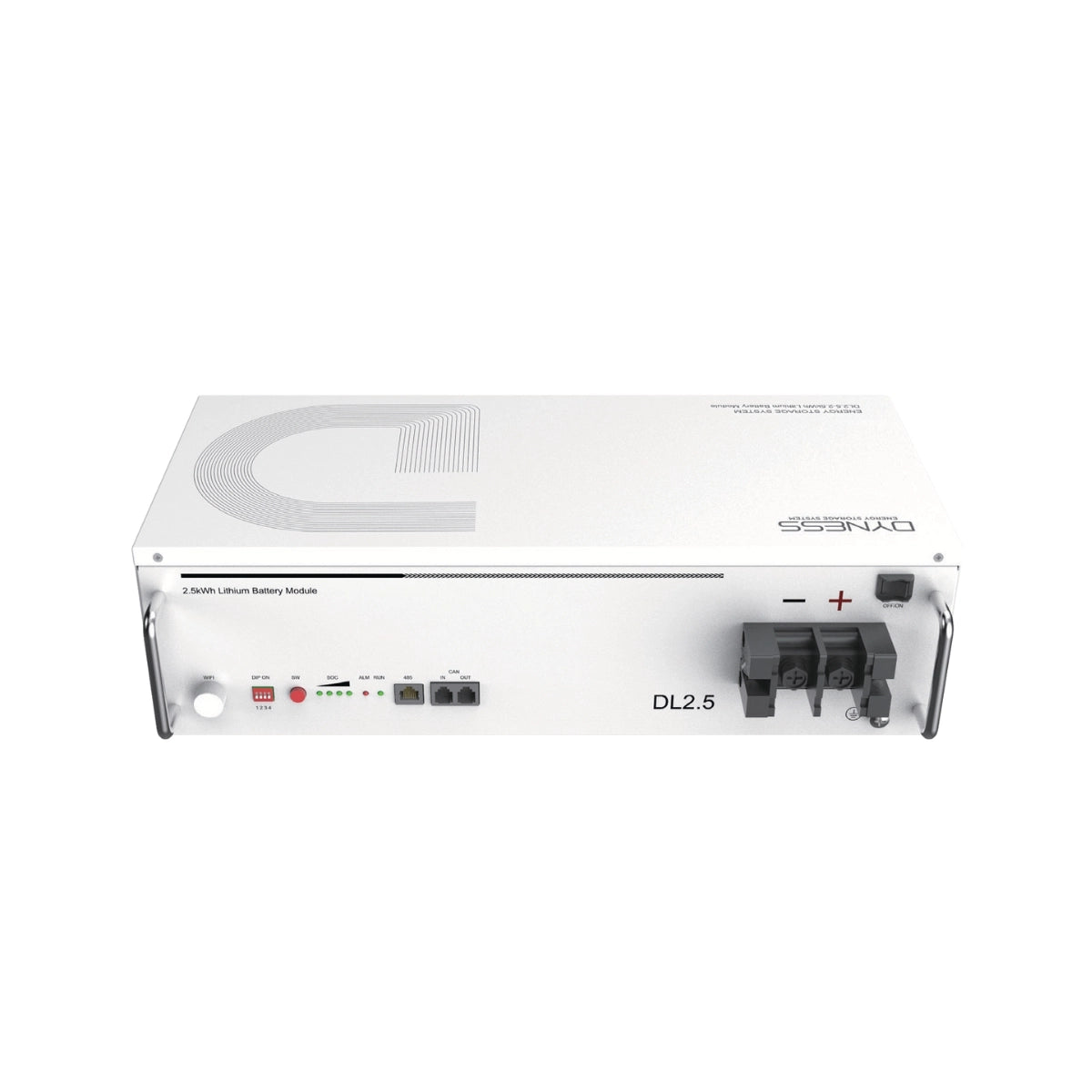

Dyness Lithium Ion Battery DL2.5 2.56KWH 25.6V 100AH

Dyness Lithium Ion Battery DL2.5 2.56KWH 25.6V 100AH

The Dyness DL2.5 serves as an excellent substitute for lead-acid batteries, ideally suited for off-grid setups in locations with limited or no grid connectivity. Its capacity is expandable from 2.56kWh up to 40.96kWh by connecting up to 16 units in parallel, providing flexible energy storage solutions tailored to various needs.

Product Features:

• Small Size

• Easy To Install

• Supports 1.3C Discharge

• Supports CAN & 485 Communication

• WIFI Function (Optional)

• High Cycle Times

• Scalable up to 40.96KWH (16 Units Parallel)

Specifications:

• Cell Technology: DL2.5 Li-ion LFP
• Battery Module Capacity: 2.56 kWh
• Battery Module Voltage: 25.6 Vdc
• Battery Module Capacity: 100 Ah
• Battery Module Cell Quantity: 8 pcs
• Battery Cell Capacity (Wh): 320 Wh
• Battery Cell Voltage: 3.2 Vdc
• Battery Cell Capacity: 100 Ah
• Battery Module Cell Quantity in Series: 8 pcs
• Battery Module Charge Voltage: [Not specified]
• Battery Discharge Current: 50 A (recommended) / 130 A (max for 30 minutes)
• Battery Charge Current: 50 A (recommended) / 75 A (max for 40 minutes)
• Depth of Discharge (DoD): 95%
• Dimensions (W × D × H): 481 × 221 × 133 mm
• Communication Interfaces: CAN / RS485 / Wi-Fi (Optional)
• Pollution Degree (PD): II
• IP Grade: IP20
• Weight: 23 kg

Environmental Conditions:

• Working Temperature:
  • Charging: 0℃ ~ +55℃
  • Discharging: -20℃ ~ +55℃
• Humidity: 5% ~ 85% RH (No condensation, system operates well)
• Storage Temperature: -10℃ ~ +35℃

Important Notice: Click Here
