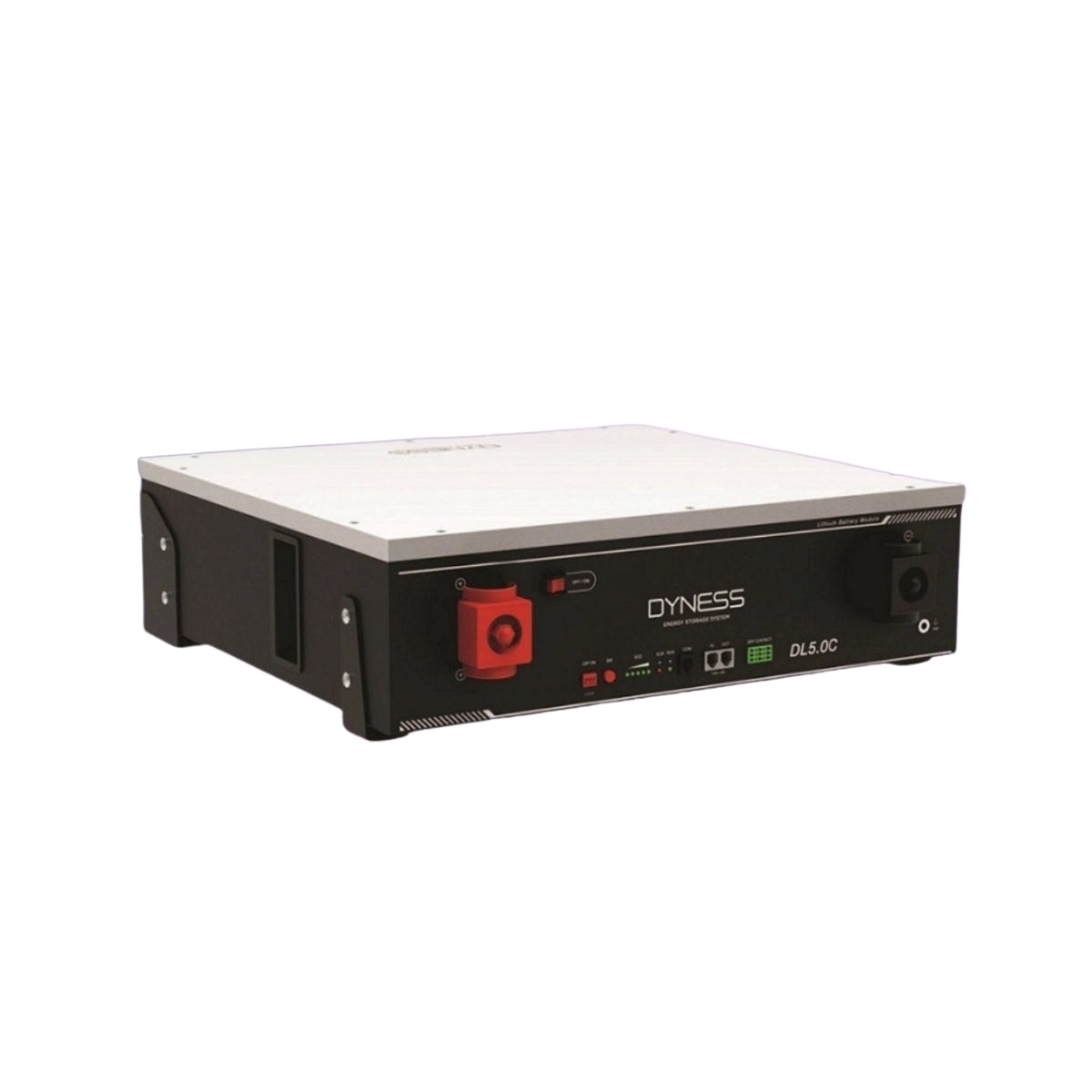

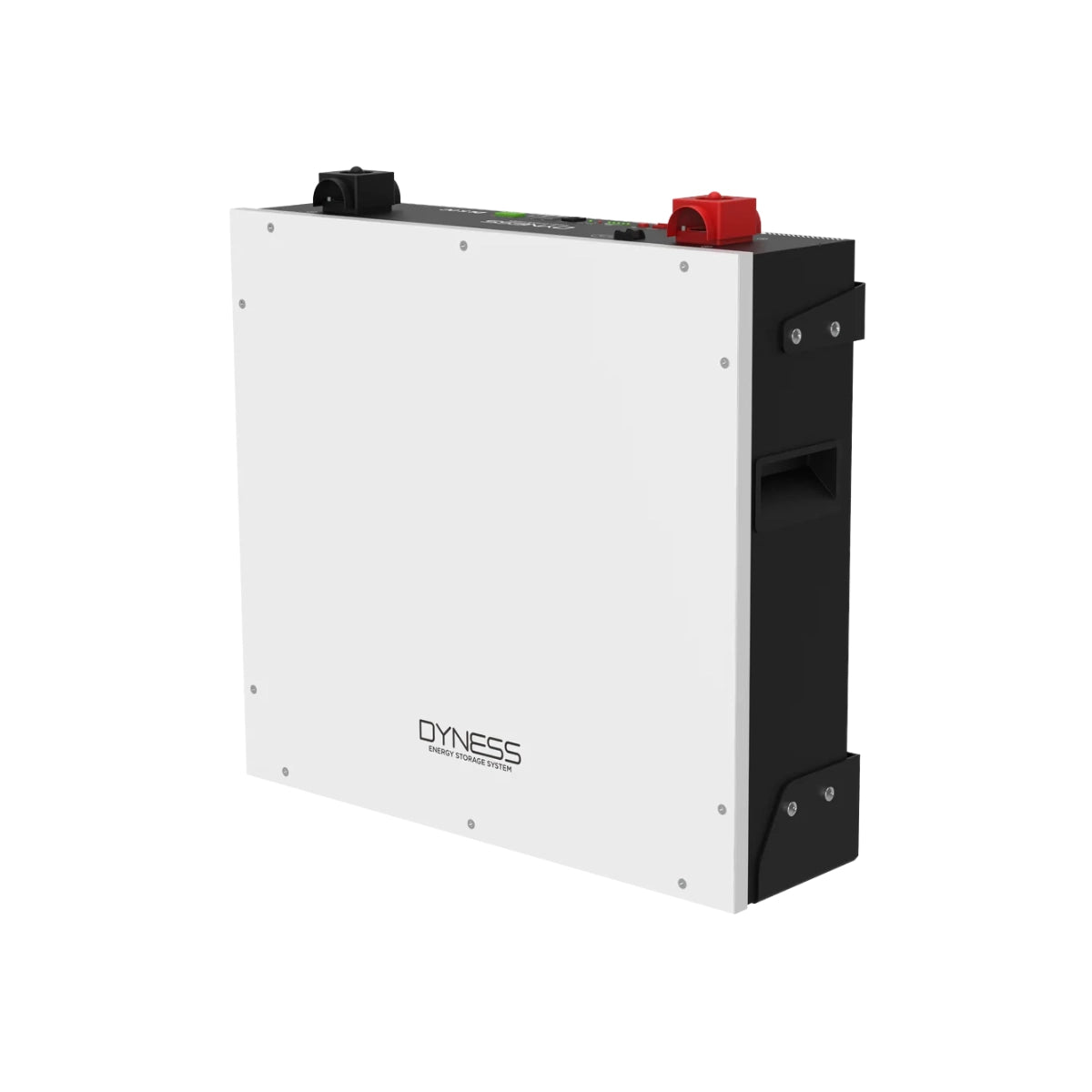

Dyness DL5.0C (Version 2.0) Lithium Ion Battery 5.12KWH 51.2V 100Ah

Dyness DL5.0C (Version 2.0) Lithium Ion Battery 5.12KWH 51.2V 100Ah

This 5.12kWh Lithium Iron Phosphate (LiFePO₄) battery is built for reliable performance, long cycle life, and safe energy storage. Designed with advanced protection features and intelligent communication options, it is ideal for both off-grid and hybrid solar setups. With a robust cycle life of over 6000 cycles, deep discharge capability, and parallel expansion of up to 50 units, it delivers scalable power solutions for residential and commercial energy needs. Certified to international safety and performance standards, this battery ensures peace of mind, durability, and efficiency for years to come.

Product Features:

• Advanced LiFePO₄ (Lithium Iron Phosphate) technology for safety and long life.
• High energy capacity of 5.12kWh with 100Ah for reliable storage.
• Deep cycle performance with 90% Depth of Discharge (DoD).
• Long lifespan of more than 6000 cycles under test conditions.
• Flexible scalability – supports expansion up to 50 units in parallel.
• Multiple communication protocols (CAN, RS485, RS232) for smart integration.
• Wide compatibility with leading inverter brands (SMA, Schneider, Victron, Solis, GoodWe, Growatt, DEYE, and more).
• Heating function allows charging even in low-temperature environments.
• Optional Wi-Fi module for remote monitoring and management.
• Certified for international safety and quality standards (UN38.3, CE-EMC, IEC62619, CEl-021, GOST-R).


Specifications:

• Model: DL5.0C
• Battery Type: LiFePO₄
• Nominal Energy: 5.12kWh
• Nominal Capacity: 100Ah
• Nominal Voltage: 51.2V
• Operating Voltage: 44.8V – 57.6V
• Recommended Charge & Discharge C-Rate: 0.5C
• Maximum Discharge C-Rate: 1C
• Recommended Charge/Discharge Current: 50A
• Maximum Charge Current: 75A
• Maximum Discharge Current: 100A
• Peak Discharge Current: 110A (15s)
• Depth of Discharge (DoD): 90%
• Cycle Life: ≥6000 cycles (0.2C charge/discharge @25°C, 90% DoD)
• Net Weight: 49.9 kg
• Dimensions (W × D × H): 558 × 545 × 150 mm
• Charging Temperature Range: 0°C to 55°C / -20°C to 55°C (with heating function)
• Discharging Temperature Range: -20°C to 55°C
• Protection Level: IP20
• Communication: CAN / RS485 / RS232
• Expansion: Up to 50 units in parallel
• Optional Module: Wi-Fi for monitoring
• Compatible Inverters: SMA, Schneider, Victron, Ingeteam, Solis, GoodWe, Growatt, Soplanet, Luxpower, DEYE, etc.
• Certifications: UN38.3, CE-EMC, IEC62619, CEl-021, GOST-R

• Standard Warranty is 7 Years
