Dyness: Battery Lithium Ion PowerBrick 14.33Kwh 51.2V 280Ah

Dyness: Battery Lithium Ion PowerBrick 14.33Kwh 51.2V 280Ah

R 35,408.00
R 36,824.32 R 35,408.00
Sale Sold out
Tax included. Shipping calculated at checkout.

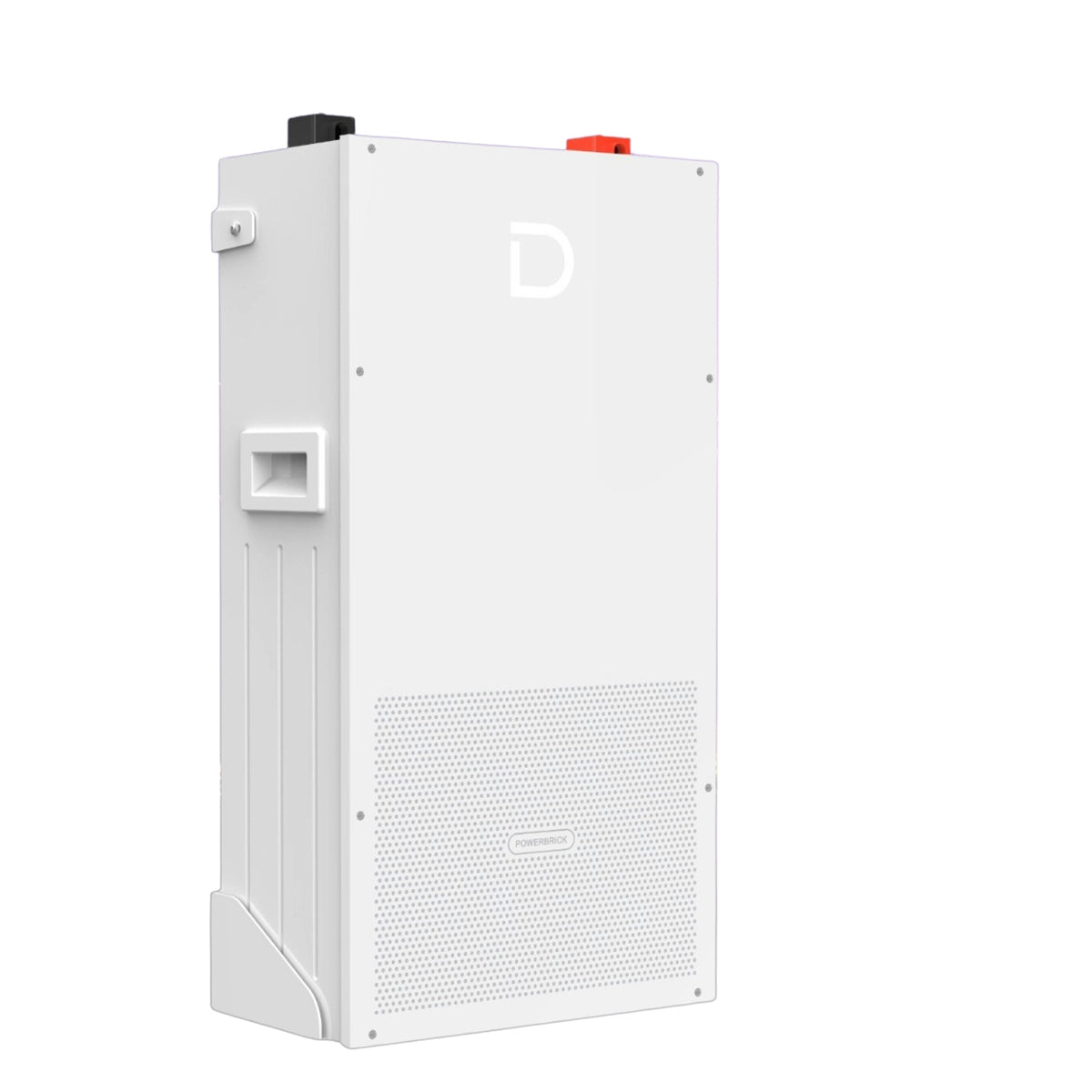

Dyness: Battery Lithium Ion PowerBrick 14.33Kwh 51.2V 280Ah (Wall & Floor Mount) (DYN-PowerBrick)

The Dyness PowerBrick 14.336kWh lithium battery is a high-capacity energy storage solution designed for residential and modular applications. With advanced LiFePO₄ chemistry, it ensures safety, long cycle life, and exceptional performance. The PowerBrick features a 40% increase in capacity and a 24% reduction in size compared to previous generations, making it ideal for space-efficient energy systems. With optional fire protection and wide inverter compatibility, it offers reliability and scalability up to 716.8kWh without the need for a hub.

Product Features:

  • High capacity: 14.336kWh for robust energy storage
  • Long lifespan: Unlimited cycles or 10 years under standard test conditions
  • Compact design: 24% smaller footprint than the previous generation
  • Enhanced capacity: 40% higher than previous models
  • Modular architecture: Expandable up to 50 units (716.8kWh total) without hub
  • High discharge rate: Continuous 200A, supporting up to 10kW discharge power
  • Built-in WiFi with mobile app OTA updates
  • Optional integrated aerosol fire extinguisher for added safety
  • Supports multiple leading inverter brands
  • Safe and stable LiFePO₄ technology

PRODUCT SPECIFICATIONS

- Model: PowerBrick
- Battery Type: LiFePO₄ (Lithium Iron Phosphate)
- Nominal Battery Energy: 14.336kWh
- Nominal Voltage / Capacity: 51.2V / 280Ah
- Recommended Charge/Discharge Current: 140A (0.5C)
- Maximum Charge Current: 200A
- Maximum Discharge Current: 200A
- Depth of Discharge (DOD): 95%
- Cycle Life: Unlimited cycles or 10 years
- Communication Protocol: CAN / RS485
- Protection Level: IP20
- Net Weight: 114kg
- Dimensions (W × D × H): 435mm × 233mm × 857mm (without wall-mount bracket)
- Maximum Parallel Modules: 50 units
- Charging Temperature Range: 0°C to 55°C
- Discharging Temperature Range: -20°C to 55°C
- WiFi Module: Built-in with app OTA function
- Fire Protection: Optional aerosol fire extinguisher
- Certifications: UN38.3, CE, IEC62619
- Compatible Inverters: SMA, Schneider, Victron Energy, Ingeteam, Solis, GoodWe, Growatt, Soplanet, SOFAR, SAJ, DEYE

IMPORTANT NOTICE

Please ensure that the battery bank's power and storage capacity is sufficient for the inverter and installation requirements.

This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. Crystal Communications and its Supplier will not be held liable for any product malfunctions as a result of incorrectly installed systems.

Technical specifications and general features are provided on our website, however, as individual needs and requirements may differ, it is recommended that our sales team is contacted for any specific questions before a purchase is made to ensure that the item being purchased will satisfy your requirements.

The images shown are for illustration purposes only and may not be an exact representation of the product.

Crystal Communications (Pty) Ltd may not have all the specific items or quantities of stock you have requested. Our dedicated Customer Service Team will use our extensive network to try to source the stock for you ASAP. You will be notified within 24 hours if we cannot source the required item, and a full refund will be processed on your order. Should you wish to contact us directly, please call 0118670488 or email sales@crystalcom.co.za
