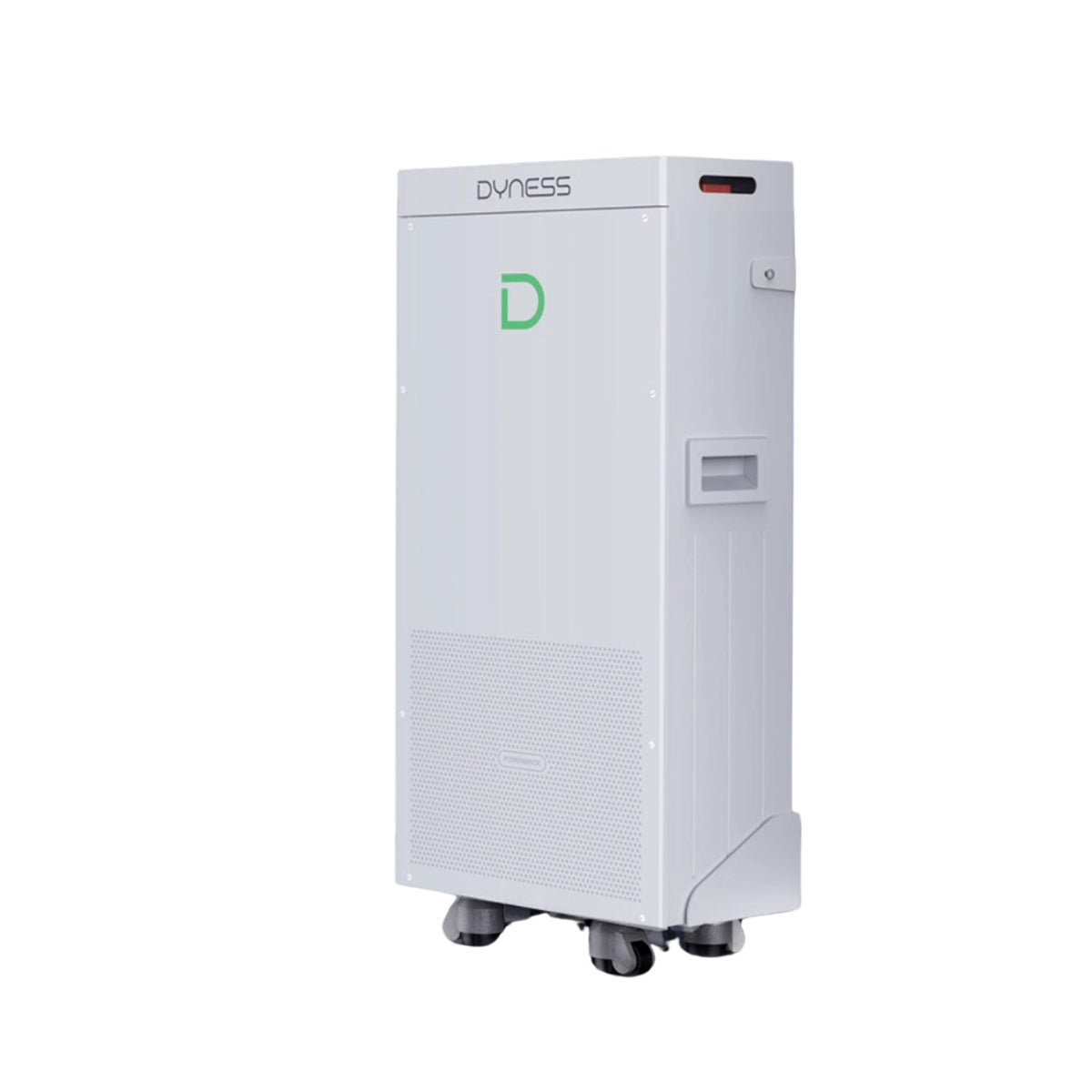

Dyness: Battery Lithium Ion PowerBrick 16.07kWh 51.2V

Dyness: Battery Lithium Ion PowerBrick 16.07kWh 51.2V

R 34,958.00
R 34,958.00
Sale Sold out
Tax included. Shipping calculated at checkout.

Dyness: Battery Lithium Ion PowerBrick 16.07kWh 51.2V

Experience superior energy independence with the Dyness PowerBrick, a high-performance lithium-ion storage solution engineered for demanding residential and commercial environments. Designed to provide reliable, scalable power, the PowerBrick combines cutting-edge safety features with industry-leading longevity to keep your operations running seamlessly.

Product Features:

  • Large capacity - 16.076 kWh energy storage capacity
  • Flexible expansion - Supports up to 50 units in parallel for up to 803.8kWh
  • High power output - discharge up to 200A for 10.24kWh
  • Reliable protection - Intelligent fire extinguishing system, detects and extinguishes fire in 5s
  • Smart management - Integrated WiFi for system monitoring and updates
  • Long term reliability - Uses 314Ah cells, 8000+ cycles, and designed for 95% depth of discharge (DoD)
  • 10-year warranty
  • This unit does not include wheels.

PRODUCT SPECIFICATIONS

General Specifications
- Model: PowerBrick Max
- Battery Type: LiFePO₄ (LFP)
- Nominal Battery Energy: 16.076kWh
- Usable Battery Energy: 15.272kWh
- Nominal Capacity: 314Ah
- Nominal Voltage: 51.2V
- Operating Voltage: 44.8V~57.6V
- Depth of Discharge (DOD): 95%
- Cycle Life: ≥8000 Cycles

Performance & Power
- Recommended Charge & Discharge C Rate: 0.45C (140A)
- Max. Charge C Rate: 0.64C (200A)
- Max. Discharge C Rate: 0.64C (200A)
- Peak Discharge Current (25°C): 300A, 2min
- Recommended Charge & Discharge Power: 7.168kW
- Max. Charge Power: 10.24kW
- Max. Discharge Power: 10.24kW

Environmental & Safety
- Charge Temp. Range: 0°C~55°C
- Discharge Temp. Range: -20°C~55°C
- Protection Level: IP20
- Safety Protection: Built-in aerosol fire extinguisher
- Certification & Safety Standard: UN38.3/IEC62619

Physical & Mechanical
- Net Weight: 116Kg
- Dimensions (W/D/H): 435/233/857mm
- Installation: Floor-mounted, Wall-mounted

Optional Accessories:
- Regulating Wheel (4pcs): 1kg, 80/80/80
- Top Cover: 2kg, 422/232/60
- Expansion: Up to 50 units in parallel

Connectivity & Compatibility
- Communication: CAN/RS485
- User Interface: WIFI+APP
- Compatible Inverters: SMA, Victron Energy, Ingeteam, Solis, GoodWe, Growatt, Solplanet, Luxpower, Deye, Apsystem, etc.
- Warranty Period: 10 Years

IMPORTANT NOTICE

Please ensure that the battery bank's power and storage capacity is sufficient for the inverter and installation requirements.

This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. Crystal Communications and its Supplier will not be held liable for any product malfunctions as a result of incorrectly installed systems.

Technical specifications and general features are provided on our website, however, as individual needs and requirements may differ, it is recommended that our sales team is contacted for any specific questions before a purchase is made to ensure that the item being purchased will satisfy your requirements.

The images shown are for illustration purposes only and may not be an exact representation of the product.

Crystal Communications (Pty) Ltd may not have all the specific items or quantities of stock you have requested. Our dedicated Customer Service Team will use our extensive network to try to source the stock for you ASAP. You will be notified within 24 hours if we cannot source the required item, and a full refund will be processed on your order. Should you wish to contact us directly, please call 0118670488 or email sales@crystalcom.co.za
