Dyness: Battery Lithium Ion PowerBrick PLUS 16Kwh 51.2V 314Ah IP65

Dyness: Battery Lithium Ion PowerBrick PLUS 16Kwh 51.2V 314Ah IP65

R 39,371.00
R 39,371.00
Sale Sold out
Tax included. Shipping calculated at checkout.

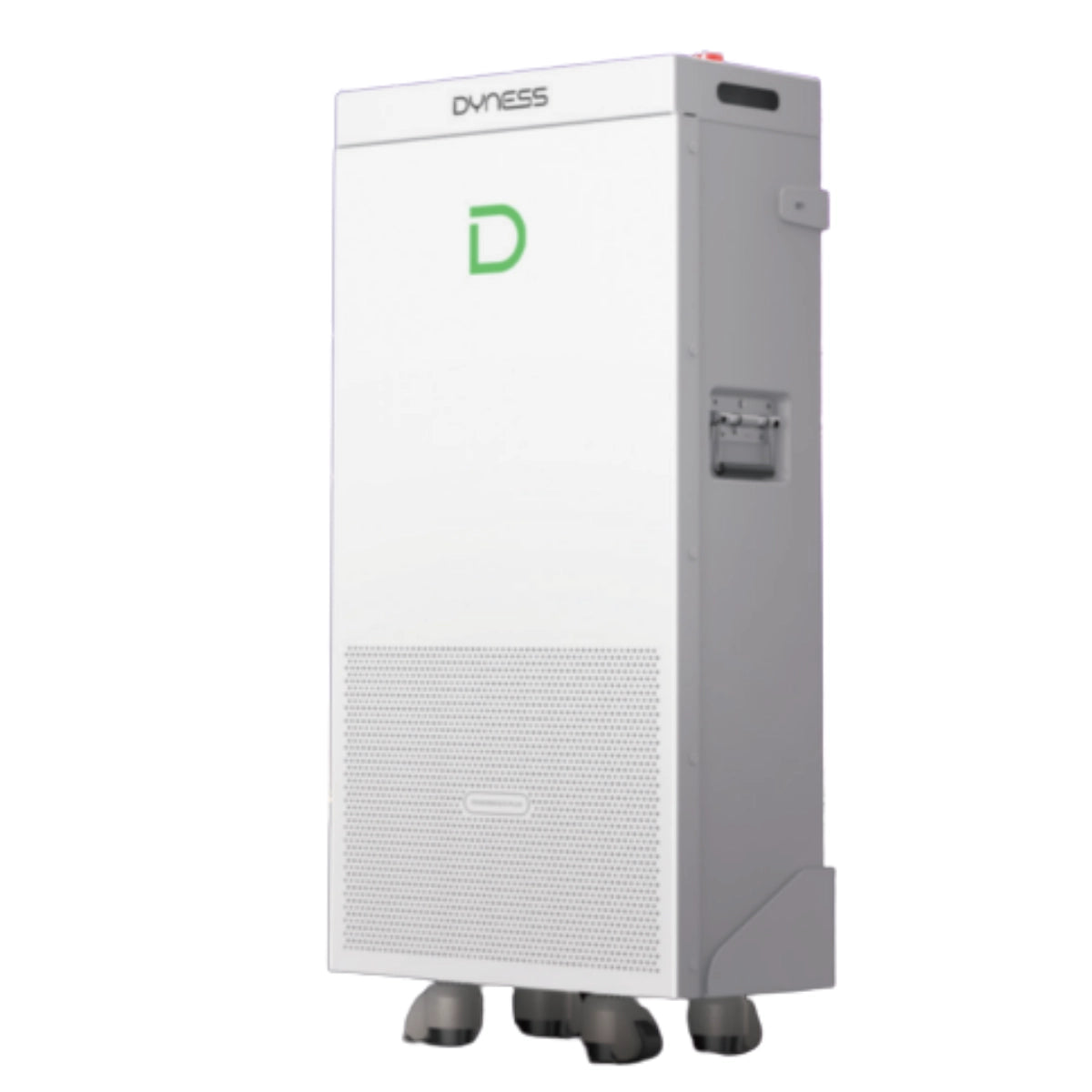

Dyness: Battery Lithium Ion PowerBrick PLUS 16Kwh 51.2V 314Ah IP65 Wall & Floor Mount

Dyness PowerBrick Plus is a low-voltage product designed for household energy storage scenarios. It has a high IP65 protection rating and supports indoor and outdoor installation. It uses a high capacity 314Ah Battery to support 50 parallel units with a capacity range from 16kWh to 803kWh, easily satisfying home power needs.

Product Features:

  • Fast Charge/Discharge: Maximum charge/discharge current of 200A, capable of simultaneously supplying power to multiple loads.
  • Ultra Safe: Built-in intelligent fire extinguishing system that detects and extinguishes fires within 5 seconds.
  • Automatic Self-Heating: Supports a -20°C to 55°C operating temperature range (optional feature).
  • Easy Installation: Supports both wall-mounted and floor-mounted installations, featuring wheels for easy, single-person mobility.
  • Long-Term Reliability: Built with 314Ah LFP cells, delivering 8,000+ cycles backed by a 10-year warranty.
  • IP65 Protection: Fully weatherproof design for fearless outdoor installation and strong environmental adaptability.

PRODUCT SPECIFICATIONS

- Model: PowerBrick Plus
- Battery Type: LiFePO4
- Nominal Battery Energy: 16.07kWh
- Usable Battery Energy: 15.27kWh
- Nominal Capacity: 314Ah
- Nominal Voltage: 51.2V
- Operating Voltage: 44.8V~57.6V
- Recommended Charge & Discharge C Rate: 0.5C (157A)
- Max. Charge C Rate: 0.64C (200A)
- Max. Discharge C Rate: 0.64C (200A)
- Peak Discharge Current (25°C): 300A, 2min
- Recommended Charge & Discharge Power: 8.03kW
- Max. Charge Power: 10.24kW
- Max. Discharge Power: 10.24kW
- Depth of Discharge (DOD): 95%
- Charge Temp. Range: 0°C~55°C / -20°C~55°C (optional)
- Discharge Temp. Range: -20°C~55°C
- Net Weight: 119kg
- Dimension [W/D/H]: 435/235/850mm
- Protection Level: IP65
- Communication: CAN/RS485
- Cycle Life: ≥8000 Cycles
- User Interface: WIFI+APP
- Safety Protection: Built-in aerosol fire extinguisher
- Installation: Floor-mounted, Wall-mounted
- Regulating Wheel (4pcs): 1kg, 80/80/80 (optional)
- Top Cover: 2kg, 422/232/60 (optional)
- Expansion: Up to 50 units in parallel
- Warranty Period: 10 Years
- Certification & Safety Standard: UN38.3 / IEC62619

Compatible Inverters: Solis/Goodwe/Growatt/SMA/Victron/Deye/APsystem etc.

IMPORTANT NOTICE

Please ensure that the battery bank's power and storage capacity is sufficient for the inverter and installation requirements.

This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. Crystal Communications and its Supplier will not be held liable for any product malfunctions as a result of incorrectly installed systems.

Technical specifications and general features are provided on our website, however, as individual needs and requirements may differ, it is recommended that our sales team is contacted for any specific questions before a purchase is made to ensure that the item being purchased will satisfy your requirements.

The images shown are for illustration purposes only and may not be an exact representation of the product.

Crystal Communications (Pty) Ltd may not have all the specific items or quantities of stock you have requested. Our dedicated Customer Service Team will use our extensive network to try to source the stock for you ASAP. You will be notified within 24 hours if we cannot source the required item, and a full refund will be processed on your order. Should you wish to contact us directly, please call 0118670488 or email sales@crystalcom.co.za
