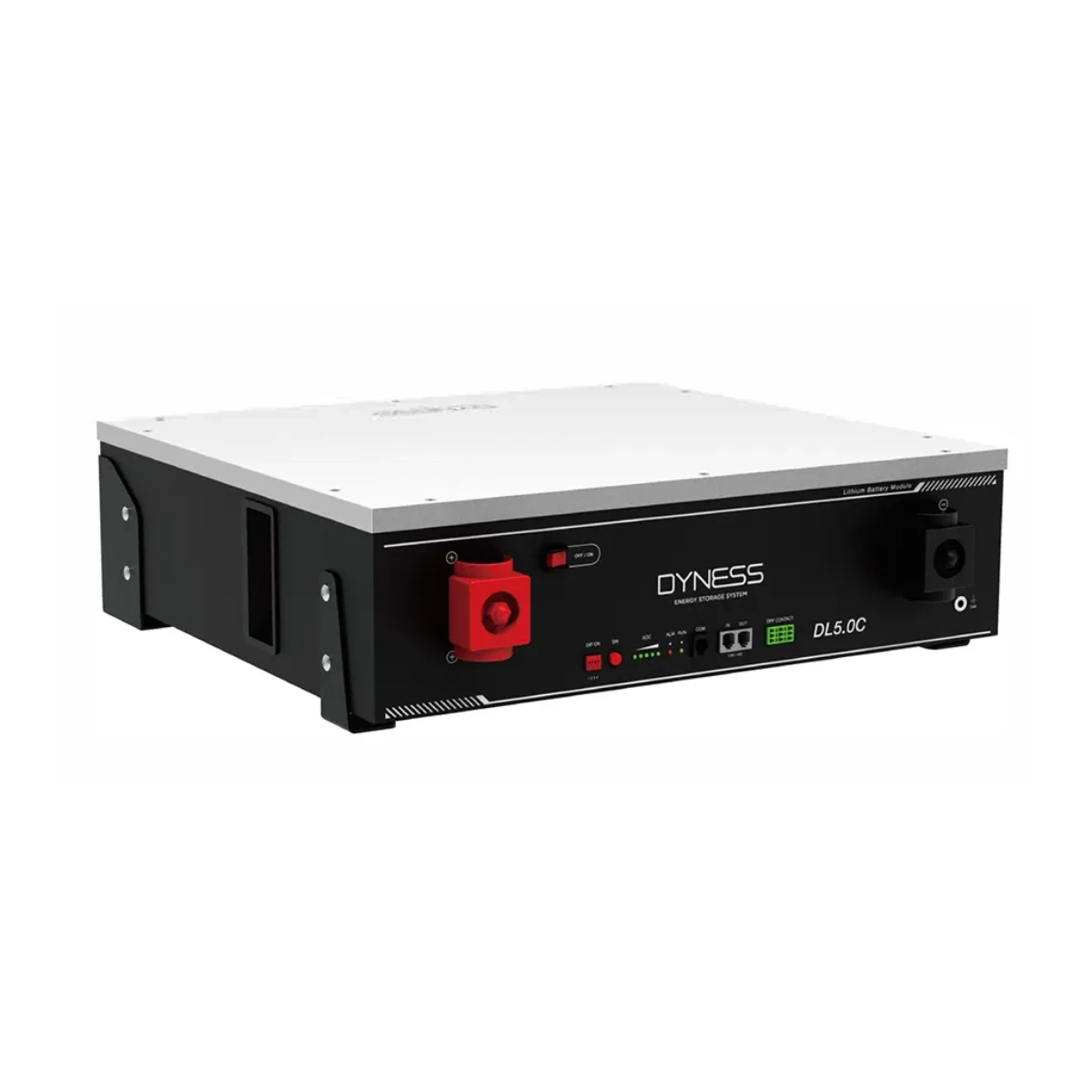

Dyness DL5.0C Lithium Ion Battery 5.12KWH 51.2V 100Ah

Dyness DL5.0C Lithium Ion Battery 5.12KWH 51.2V 100Ah

R 14,076.00
R 14,076.00
Sale Sold out
Tax included. Shipping calculated at checkout.

Dyness DL5.0C Lithium Ion Battery  5.12KWH 51.2V 100Ah - DYN-DL5.0C

DYNESS DL5.0C adopts economic design, and is tailor-made for residential & light commercial. This LFP battery module supports remote update and APP monitoring and provides multiple installation options - wall-mounted, floor-standing and stack. It is scalable from 5.12 -256 kWh (max. 50 modules in parallel), providing various energy storage options to meet different requirements.

Product Features:

  • APP Monitoring(Optional): Real-time monitoring Remote upgrade available
  • Modular Design: Flexible expansion
  • Wide Compatibility: Matching with leading inverter brands
  • Various Mounting Methods: Wall-mounted, floor-standing and stack
  • High Safety LFP: Cell level monitoring and balancing

PRODUCT SPECIFICATIONS

Battery Type: LiFePO4
Nominal Battery Energy: 5.12kWh
Nominal Capacity: 100Ah
Nominal Voltage: 51.2V
Operating Voltage: 44.8~57.6V
Recommended C Rate: 0.5C
Recommended Charge/Discharge Current: 50A
Max. Power Charge Current: 75A
Peak Power Charge/Discharge Current: 110A(15s)
Depth of Discharge: 85%
Net Weight: 54kg
Dimension[W*D*H]: 558*545*150mm
Cycle Life: 6000 Cycles (Test conditions:0.2C Charging/Discharging,@25°C,8D% DOD)
Warranty 10Year
Expansion: Up to 50 units in parallel

IMPORTANT NOTICE

Please ensure that the battery bank's power and storage capacity is sufficient for the inverter and installation requirements.

This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. Crystal Communications and its Supplier will not be held liable for any product malfunctions as a result of incorrectly installed systems.

Technical specifications and general features are provided on our website, however, as individual needs and requirements may differ, it is recommended that our sales team is contacted for any specific questions before a purchase is made to ensure that the item being purchased will satisfy your requirements.

The images shown are for illustration purposes only and may not be an exact representation of the product.

Crystal Communications (Pty) Ltd may not have all the specific items or quantities of stock you have requested. Our dedicated Customer Service Team will use our extensive network to try to source the stock for you ASAP. You will be notified within 24 hours if we cannot source the required item, and a full refund will be processed on your order. Should you wish to contact us directly, please call 0118670488 or email sales@crystalcom.co.za
