Dyness DL5.0C Pro Lithium Ion Battery 5.12KWH 51.2V 100Ah
Dyness DL5.0C Pro Lithium Ion Battery 5.12KWH 51.2V 100Ah
Couldn't load pickup availability

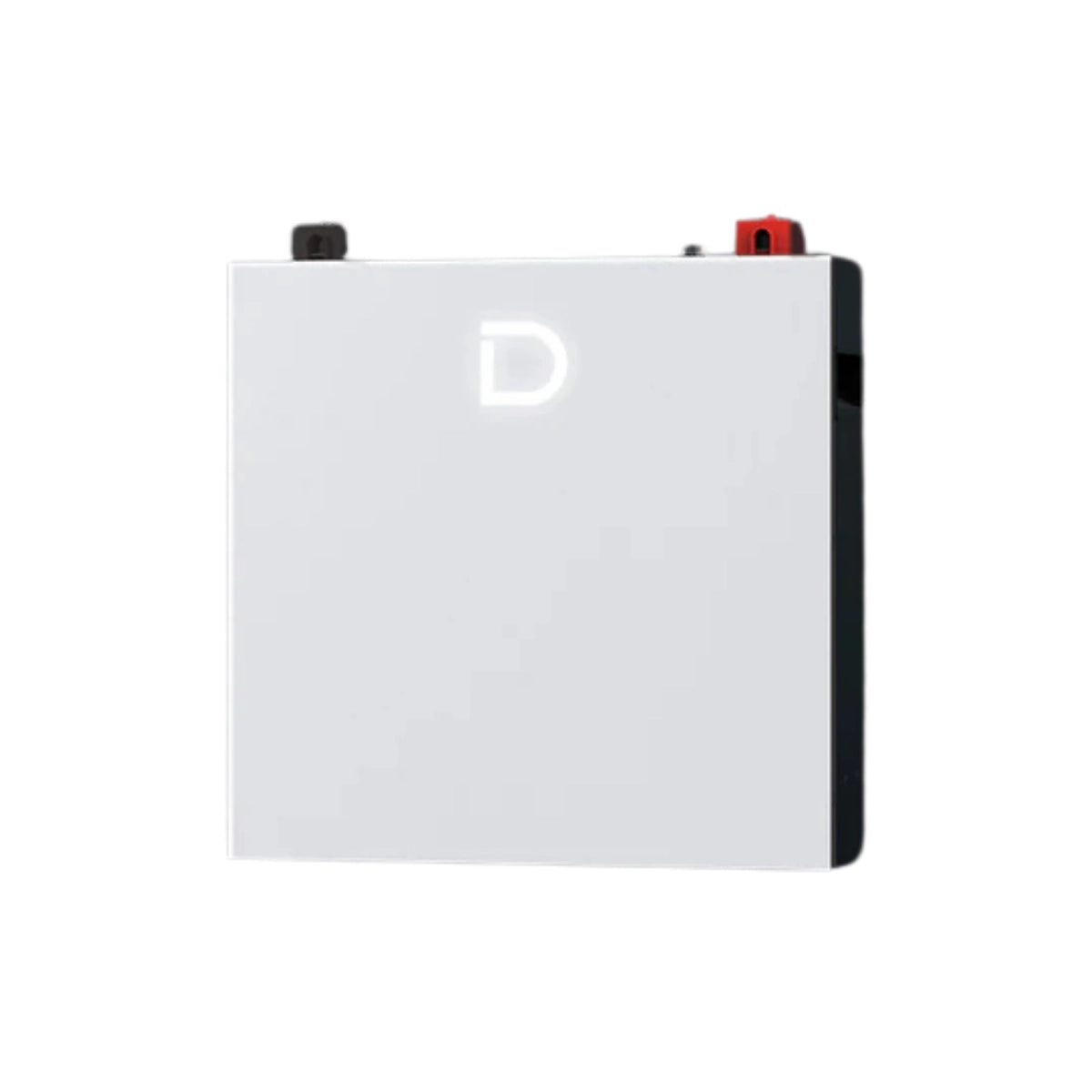

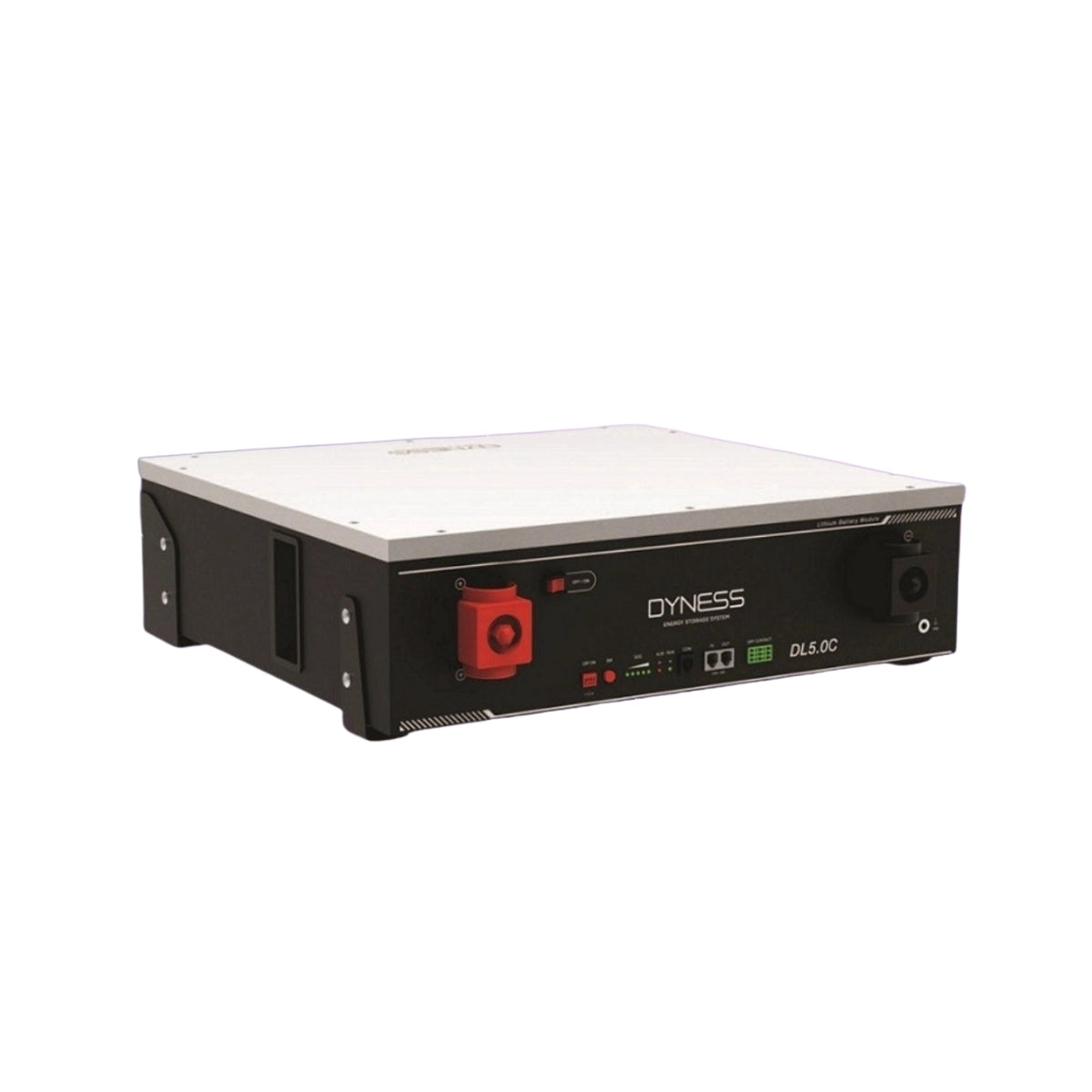

Dyness DL5.0C Pro Lithium Ion Battery 5.12KWH 51.2V 100Ah
The DL5.0C Pro is a high-performance LiFePO₄ lithium battery designed for residential, commercial, and small industrial energy storage systems. With a nominal capacity of 5.12kWh, it offers exceptional safety, smart management, and flexible scalability — supporting up to 50 units in parallel for a total capacity of 256kWh. Built with intelligent monitoring, Wi-Fi connectivity, and active fire protection, the DL5.0C Pro ensures long-lasting reliability, seamless integration with top inverter brands, and superior efficiency for both off-grid and hybrid setups.
Product Features:
- Flexible Expansion: Connect up to 50 units for a total capacity of 256kWh.
- High Power Output: 1.2C discharge for 10 minutes to handle peak loads.
- Smart Management: Built-in Wi-Fi for monitoring, remote control, and OTA updates.
- Ultra Safe: Automatic fire detection and extinguishing within 5 seconds.
- Long Lifespan: Over 6000 cycles at 95% DOD.
- Easy Installation: Wall or floor mounting, compact 46kg design.
- Wide Compatibility: Works with SMA, Schneider, Victron, Solis, Growatt, DEYE, and more.
PRODUCT SPECIFICATIONS
PRODUCT SPECIFICATIONS
- Model: DL5.0C
- Battery Type: LiFePO₄
- Nominal Energy: 5.12kWh
- Nominal Capacity: 100Ah
- Nominal Voltage: 51.2V
- Operating Voltage: 44.8V – 57.6V
- Recommended Charge & Discharge C-Rate: 0.5C
- Maximum Discharge C-Rate: 1C
- Recommended Charge/Discharge Current: 50A
- Maximum Charge Current: 75A
- Maximum Discharge Current: 100A
- Peak Discharge Current: 120A (10s)
- Depth of Discharge (DoD): 95%
- Cycle Life: ≥6000 cycles
- Net Weight: 46 kg
- Dimensions (W × D × H): 488 × 515 × 150 mm
- Charging Temperature Range: 0°C to 55°C / -20°C to 55°C (with heating function)
- Discharging Temperature Range: -20°C to 55°C
- Protection Level: IP20
- Communication: CAN / RS485
- Expansion: Up to 50 units in parallel
- Optional Module: Wi-Fi for monitoring
- Compatible Inverters: SMA, Schneider, Victron, Ingeteam, Solis, GoodWe, Growatt, Soplanet, Luxpower, DEYE, etc.
- Certifications: UN38.3, CE-EMC, IEC62619, CEl-021, GOST-R
IMPORTANT NOTICE
IMPORTANT NOTICE
Please ensure that the battery bank's power and storage capacity is sufficient for the inverter and installation requirements.
This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. Crystal Communications and its Supplier will not be held liable for any product malfunctions as a result of incorrectly installed systems.
Technical specifications and general features are provided on our website, however, as individual needs and requirements may differ, it is recommended that our sales team is contacted for any specific questions before a purchase is made to ensure that the item being purchased will satisfy your requirements.
The images shown are for illustration purposes only and may not be an exact representation of the product.
Crystal Communications (Pty) Ltd may not have all the specific items or quantities of stock you have requested. Our dedicated Customer Service Team will use our extensive network to try to source the stock for you ASAP. You will be notified within 24 hours if we cannot source the required item, and a full refund will be processed on your order. Should you wish to contact us directly, please call 0118670488 or email sales@crystalcom.co.za
