Dyness Battery Lithium Ion 1.28KWH 12.8V 100AH

Dyness Battery Lithium Ion 1.28KWH 12.8V 100AH

R 3,567.00
R 3,567.00
Sale Sold out
Tax included. Shipping calculated at checkout.

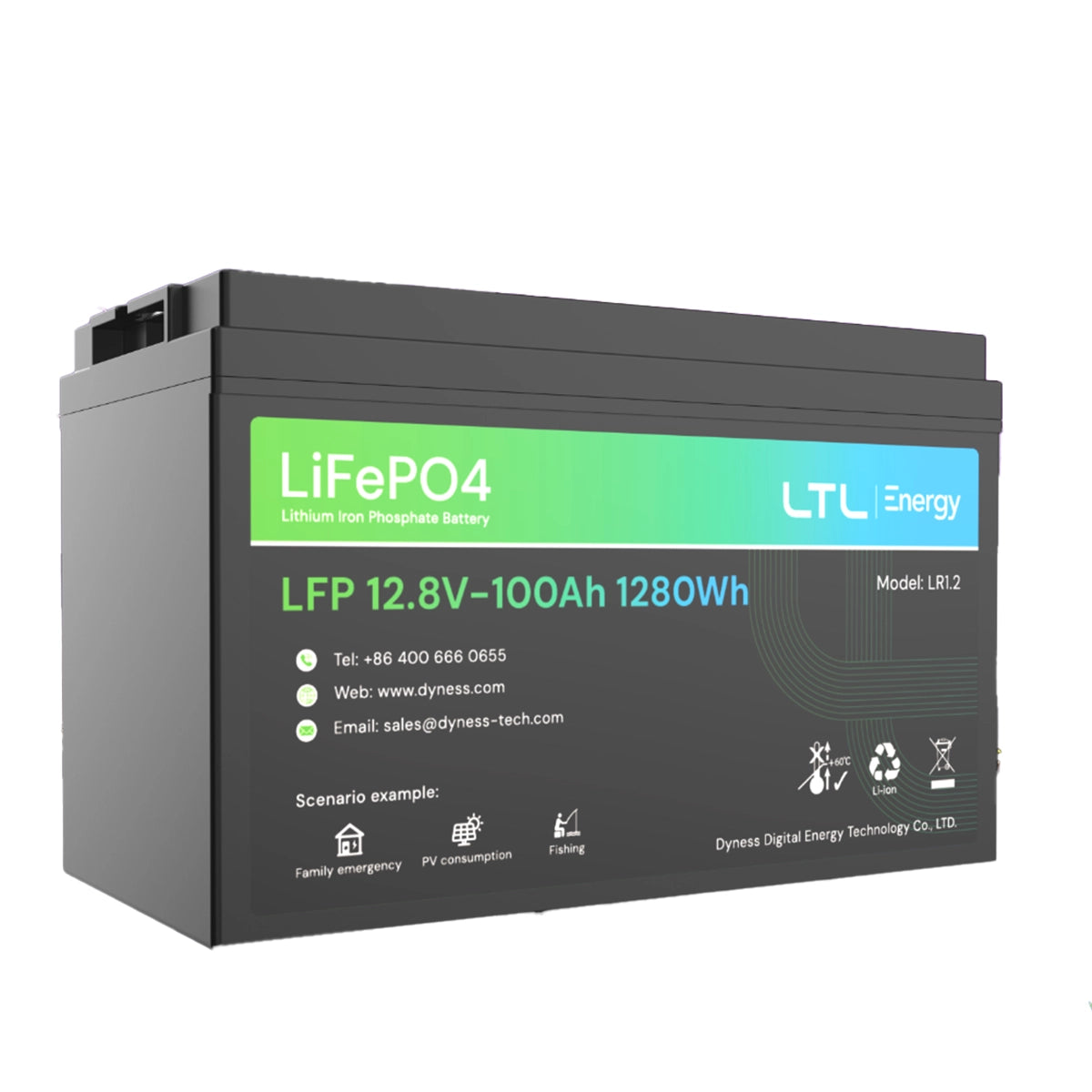

Dyness (LTL): Battery Lithium Ion 1.28KWH 12.8V 100AH (DYN-LR1.2)

The Dyness LR1.2 is a compact and lightweight 1.28kWh lithium battery engineered for efficient energy storage and reliable performance across a wide range of scenarios. Whether it's for residential energy backup, solar applications, or portable off-grid use, this battery offers long service life, easy installation, and high environmental protection with an IP65 rating. Its modular design allows flexible expansion, making it ideal for customized setups.

Product Features:

  • Lightweight design at only 12kg, approximately one-third the weight of equivalent lead-acid batteries
  • Long lifespan with over 3000 cycles at 100% Depth of Discharge (DOD)
  • Easy to handle and install across various usage environments
  • Modular architecture supports series or parallel expansion
  • High protection level with IP65 rating
  • LFP chemistry ensures thermal stability and safety
  • Versatile applications including solar PV storage, household backup, security systems, and outdoor activities

PRODUCT SPECIFICATIONS

- Model: LR1.2
- Battery Type: LFP (Lithium Iron Phosphate)
- Nominal Battery Energy: 1.28kWh
- Nominal Capacity: 100Ah
- Nominal Voltage: 10–14.8V
- Max Charge/Discharge Current: 100A (1C)
- Depth of Discharge (DOD): 100%
- Net Weight: ≈12kg
- Dimensions (W×D×H): 330mm × 172mm × 214mm
- Charging Temperature Range: 0°C to 50°C
- Discharging Temperature Range: -20°C to 55°C
- Protection Level: IP65

Cycle Life:
- 3000 cycles at 100% DOD
- 4000 cycles at 80% DOD

- Expansion Capability: Up to 4 units in series or parallel
- Certification: UN38.3

IMPORTANT NOTICE

Please ensure that the battery bank's power and storage capacity is sufficient for the inverter and installation requirements.

This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. Crystal Communications and its Supplier will not be held liable for any product malfunctions as a result of incorrectly installed systems.

Technical specifications and general features are provided on our website, however, as individual needs and requirements may differ, it is recommended that our sales team is contacted for any specific questions before a purchase is made to ensure that the item being purchased will satisfy your requirements.

The images shown are for illustration purposes only and may not be an exact representation of the product.

Crystal Communications (Pty) Ltd may not have all the specific items or quantities of stock you have requested. Our dedicated Customer Service Team will use our extensive network to try to source the stock for you ASAP. You will be notified within 24 hours if we cannot source the required item, and a full refund will be processed on your order. Should you wish to contact us directly, please call 0118670488 or email sales@crystalcom.co.za
