Eenovance Battery 61.44kWh HV 624V

Product Description

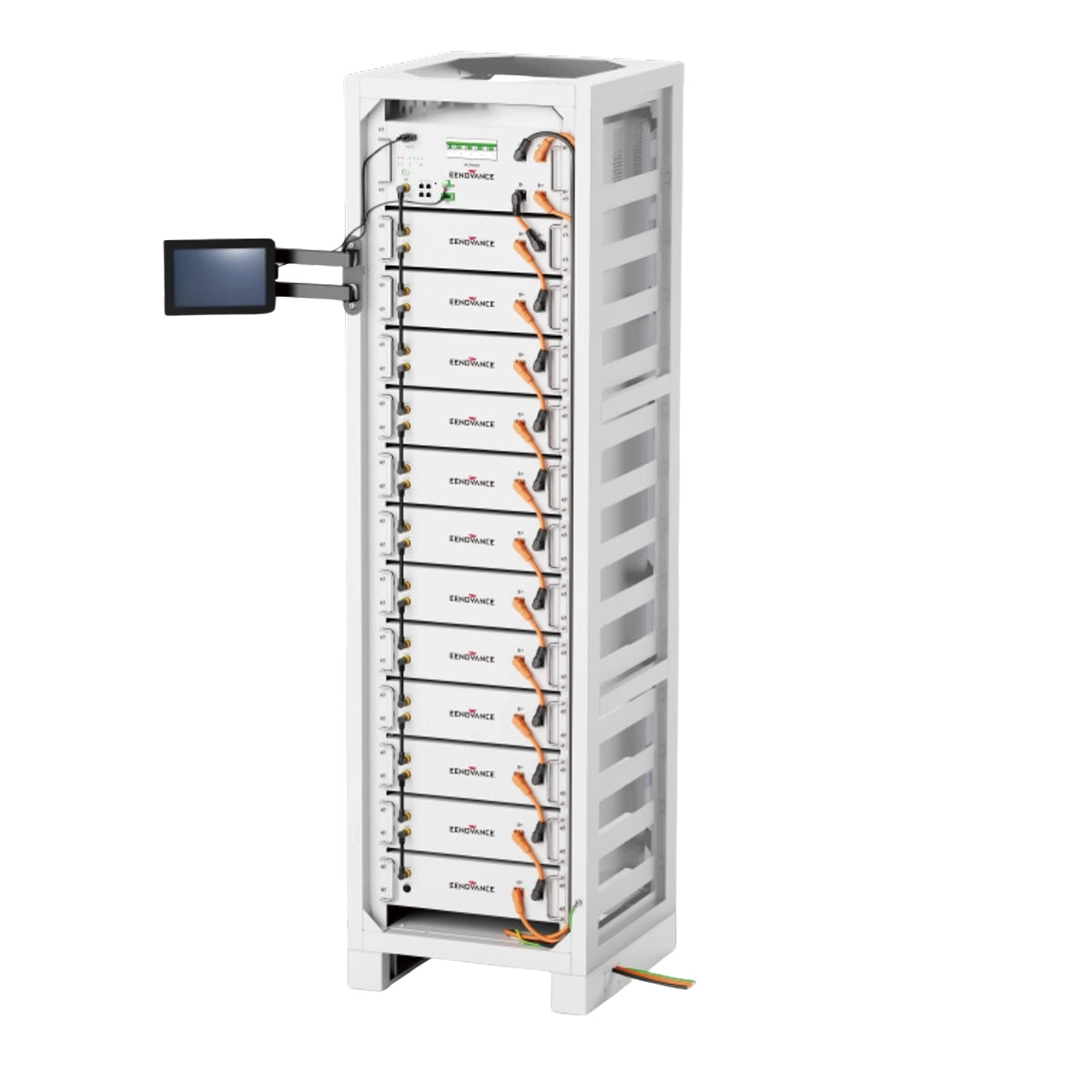

The RT 5.12-H is a high-voltage, modular lithium iron phosphate (LFP) battery system designed for commercial and smart home energy storage applications. With a capacity range from 20.48 kWh up to 61.44 kWh, it offers reliable, scalable, and safe energy storage. The modular design allows for flexible expansion, while intelligent communication and remote monitoring capabilities make it ideal for both grid-tied and off-grid applications.

Key Features

• Modular Design: 5.12 kWh per module, supports up to 12 modules per cluster, 4 clusters in parallel.
• Long Cycle Life: Up to 6,000 cycles or 10 years at 80% DOD and 0.5C rate.
• Easy Installation: Quick-connect coupling for hassle-free setup and maintenance.
• Smart Monitoring: Real-time data monitoring and remote firmware upgrades.
• Flexible Application: Compatible with ON Grid, ON Grid + Backup, and Off Grid systems.
• Advanced Communication: Supports CAN, RS485, RS232 protocols.
• User-Friendly Display: LED/LCD display options for SOC and system status.
• High Safety Standards: Certified under UN38.3, IEC62619, IEC62040-1, and more.

Technical Specifications

• Battery Type: LFP (LiFePO₄)
• Usable Energy Capacity: 61.44 kWh
• Nominal Voltage: 614.4 V depending on configuration
• Operating Voltage Range: 537.6 - 673.92 V
• Max. Charge/Discharge Current: 100 A
• Cycle Life: 6,000 cycles @ 80% DOD, 25°C, 0.5C
• Scalability: Up to 12 modules per stack, 4 stacks in parallel
• Installation: Floor-standing
• Operating Temperature: Charge: 0 to 50°C | Discharge: -15 to 50°C
• Ingress Protection: IP20
• Humidity Tolerance: ≤ 95% RH (non-condensing)
• Communication Interfaces: CAN, RS485, RS232
• Functions: SOC indicators, EMS integration, remote upgrades, real-time monitoring
• Compatible Inverters: Refer to the approved PCS list (supports major brands)

Important Notice: Click Here
