EN+: AC EV Charger Memo Series Portable Box 3.5kw 230V (Type2 Cable)

EN+: AC EV Charger Memo Series Portable Box 3.5kw 230V (Type2 Cable)

Regular price R 3,329.00
Regular price Sale price R 3,329.00
Sale Sold out
Tax included. Shipping calculated at checkout.

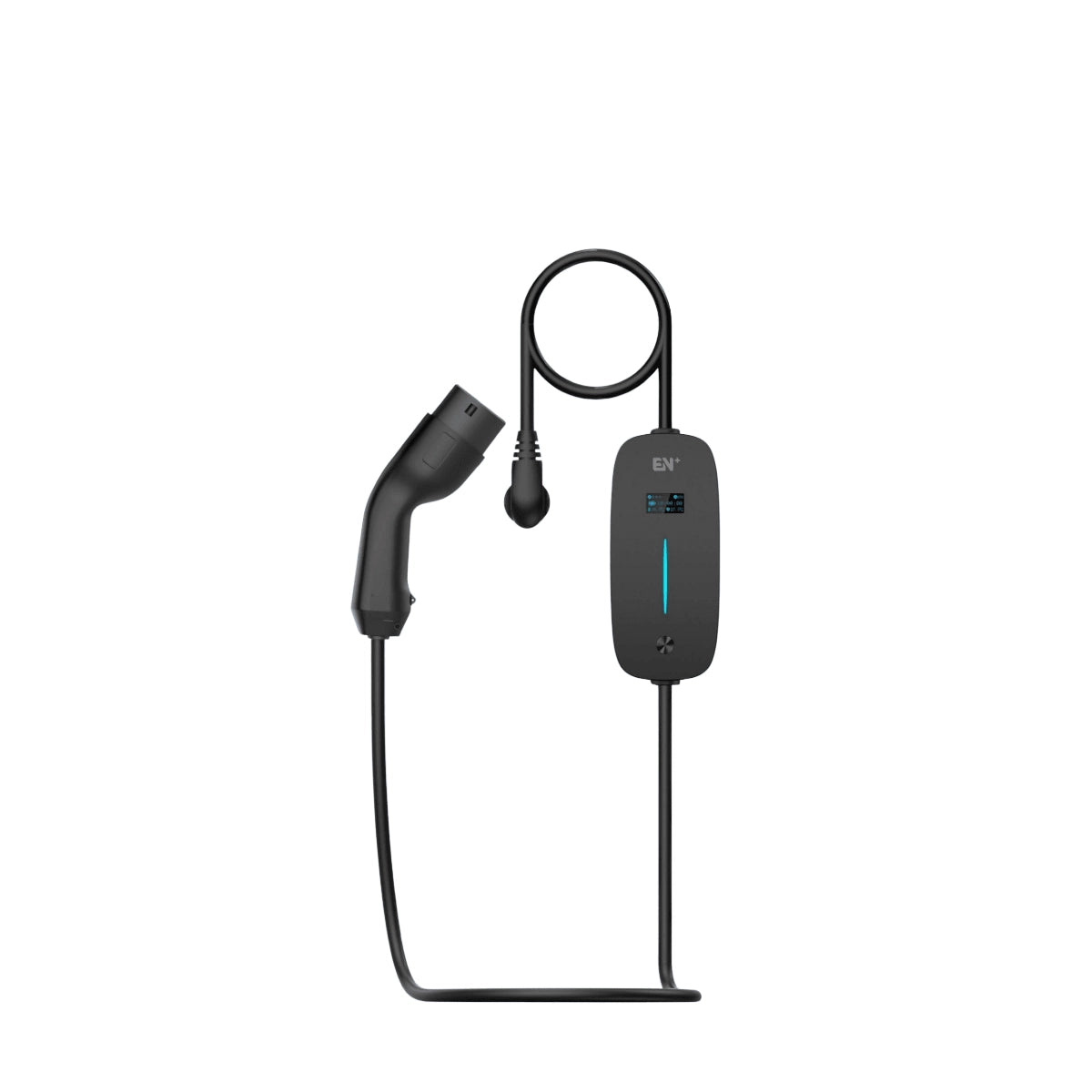

Memo Series Portable Box 3.5kW 230V (Type 2 Cable)

The Memo Series Portable Box adopts a clever wire-winding design for space-saving storage and easy transport. Engineered for durability, it employs comprehensive electrical protection alongside an IP67 ingress rating and UV resistance to ensure safe charging in any environment.

Product Features:

  • Simple: Highly portable and easy to carry with a built-in cable winding system and simple plug-to-charge functionality.
  • Flexible: Equipped with a Type 2 cable; supports wall or pole mounting with App, RFID, or Plug & Play start options.
  • Durable: Features a corrosion-proof enclosure with an IP67 protection rating against dust and water.
  • Safe: Comprehensive safety suite including overcurrent, residual current, surge, and over-temperature protection.

PRODUCT SPECIFICATIONS

Electrical Specification
- Power Supply: 1P+N+PE
- Rated Voltage: 230V AC
- Rated Current: 16A
- Frequency: 50/60Hz
- Rated Power: 3.5kW

Basic Attributes
- Charge Connector: Type 2 Cable
- Cable Length: 4m
- Enclosure: PC943
- LCD:  1.3'' Monochrome Screen
- LED Indicator: Blue
- Start Mode: Plug to Charge

Safety
- Ingress Protection: IP67 (Body)
- Impact Protection: IK10 (w / o Screen)
- Electrical Protection: Over current protection, Residual current protection Surge protection, Over / Under voltage protection, Over / Under frequency protection, Over temperature protection
- Certification Standard: IEC 62752-2018 IEC61851-21-2:2021
- Warranty: 2 Years

Working Environment
- Operation Temperature: -30°C-+50°C
- Work Humidity: 5%-95%
- Work Altitude: ≤2000m

Safety
- Ingress Protection: IP67 (Body)
- Impact Protection: IK10 (w / o Screen)
- Electrical Protection: Over current protection, Residual - current protection Surge protection, Over / Under voltage protection, Over / Under frequency protection, Over temperature protection
- Certification Standard: IEC 62752-2018 IEC61851-21-2:2021
- Warranty: 2 Years

Package
- Product Dimension:  212*92*55mm (H*W*D)
- Package Dimension: 300*130*270mm (L*W*H)
- Net Weight: 2kg
- Gross Weight: 3kg

IMPORTANT NOTICE

Please ensure that the battery bank's power and storage capacity is sufficient for the inverter and installation requirements.

This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. Crystal Communications and its Supplier will not be held liable for any product malfunctions as a result of incorrectly installed systems.

Technical specifications and general features are provided on our website, however, as individual needs and requirements may differ, it is recommended that our sales team is contacted for any specific questions before a purchase is made to ensure that the item being purchased will satisfy your requirements.

The images shown are for illustration purposes only and may not be an exact representation of the product.

Crystal Communications (Pty) Ltd may not have all the specific items or quantities of stock you have requested. Our dedicated Customer Service Team will use our extensive network to try to source the stock for you ASAP. You will be notified within 24 hours if we cannot source the required item, and a full refund will be processed on your order. Should you wish to contact us directly, please call 0118670488 or email sales@crystalcom.co.za
