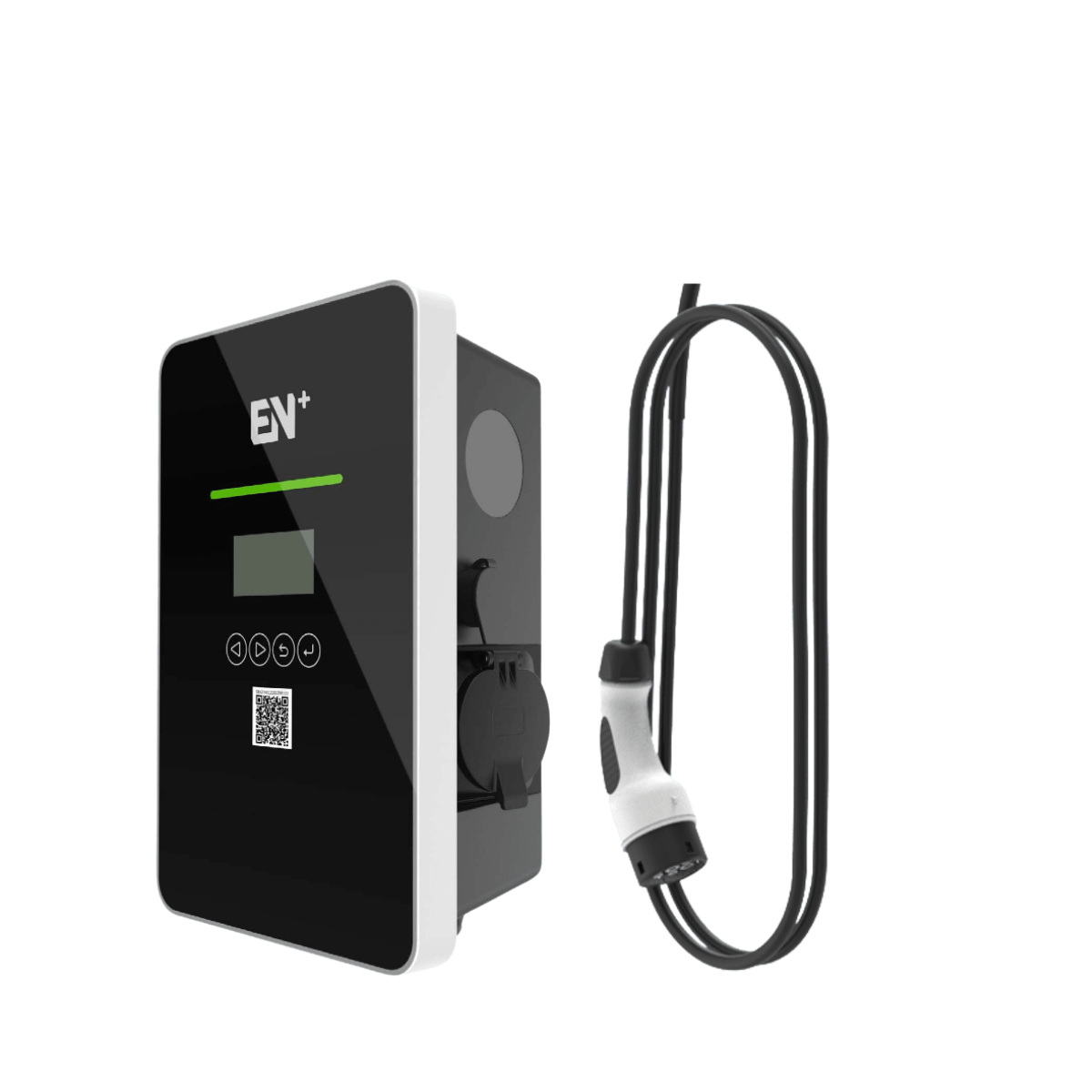

Vita Series Business Wallbox prioritizes safety and efficiency, complying with UK's EVSCP & EU standards. It seamlessly integrates into any setup. Effortlessly manage your charging through the cloud platform and remote maintenance. The sleek design ensures easy installation, while Wi-Fi & Ethernet connectivity enables convenient control via the mobile app. Rest assured, the MID certified energy meter guarantees the utmost accuracy in your charging experience.
Product Features:
Simple
- Temper glass front panel
- Robust enclosure
- Easy installation
- Vinyl branding options available
Flexible
- Type 2 cable/Type 2 socket
- Wall-mount/ Pole-mount installation
- App operation/RFID authentication/Plug to play
Intelligent
- Communications- Wi-Fi+4G/Wi-Fi+Ethernet
- Smart mobile
- App control
- 2.7” B&W information display
- OCPP 1.6 Json
Secure & Safe
- 30mA AC+6mA DC
- Independent RCBO
- MID certified energy meter with accurate measurement
Specifications:
Electrical Specification
- Power Supply: 3P+N+PE
- Rated Voltage: 400V AC
- Rated Current: 32A
- Frequency: 50/60Hz
- Rated Power: 22kW
Basic Attributes:
- Product Standard: EU
- Charge Connector: Type 2 Cable
- Cable Length: 7m(4m Optional)
- Enclosure: Galvanized Steel+Temper Glass
- Installation: Wall-mount/Pole-mount (Optional)
Interactive Interface
- LED Indicator: Green/Yellow/Red
- LCD Display: 2.7" Black & White LCD
- RFID Reader: Mifare ISO/IEC 14443 A
- Start Mode: Plug to play/RFID Card/App
Communication
- Wi-Fi & Ethernet: Standard
Wi-Fi & 4G: Standard
- Bluetooth : Hardware Ready
- OCPP: OCPP 1.6 Json
Safety
- RCD: 30mA Type A + 6mA DC
- RCBO: Type A
- Energy Meter: MID Certified
- Ingress Protection: IP65
- Impact Protection: IK08
- Electrical Protection: Over current protection, Residual current protection Surge protection, Over/Under voltage protection, Over/Under frequency protection, Over temperature protection
- Certification: CE/CB/Pen Fault/UKCA
- Certification Standard:IEC 61851-1:2017 EN IEC 61851-1:2019 EN IEC 61851-21-2:2021 EN IEC 61000-6-1:2019 EN IEC61000-6-2/-4: 2019 EN IEC 61000-6-3:2007+A1 EN 300 328 V2.2.2:2019 EN 300 330 V2.1.1:2017 EN 301 489-1 V2.2.3:2019 EN 301 489-3 V2.1.1:2019 EN 301 489-17 V3.2.0:2017 EN 62311:2020 BS 7671:2018+A2:2022
- Warranty: 2 Years
Working Environment:
- Operation Temperature: -30℃-+50℃
- Work Humidity: 5%-95%
- Work Altitude: ≤2000m
Package
- Product Dimension: 452*295*148mm (H*W*D)
- Package Dimension: 570*390*220mm (L*W*H)
- Net Weight: 13.5kg
- Gross Weight: 15.5kg
- External Package: Carton
