Epson EB-685W 3500lm WXGA Ultra Short Throw Projector

Epson EB-685W 3500lm WXGA Ultra Short Throw Projector

R 22,998.00
R 24,600.00 R 22,998.00
Sale Sold out
Tax included. Shipping calculated at checkout.

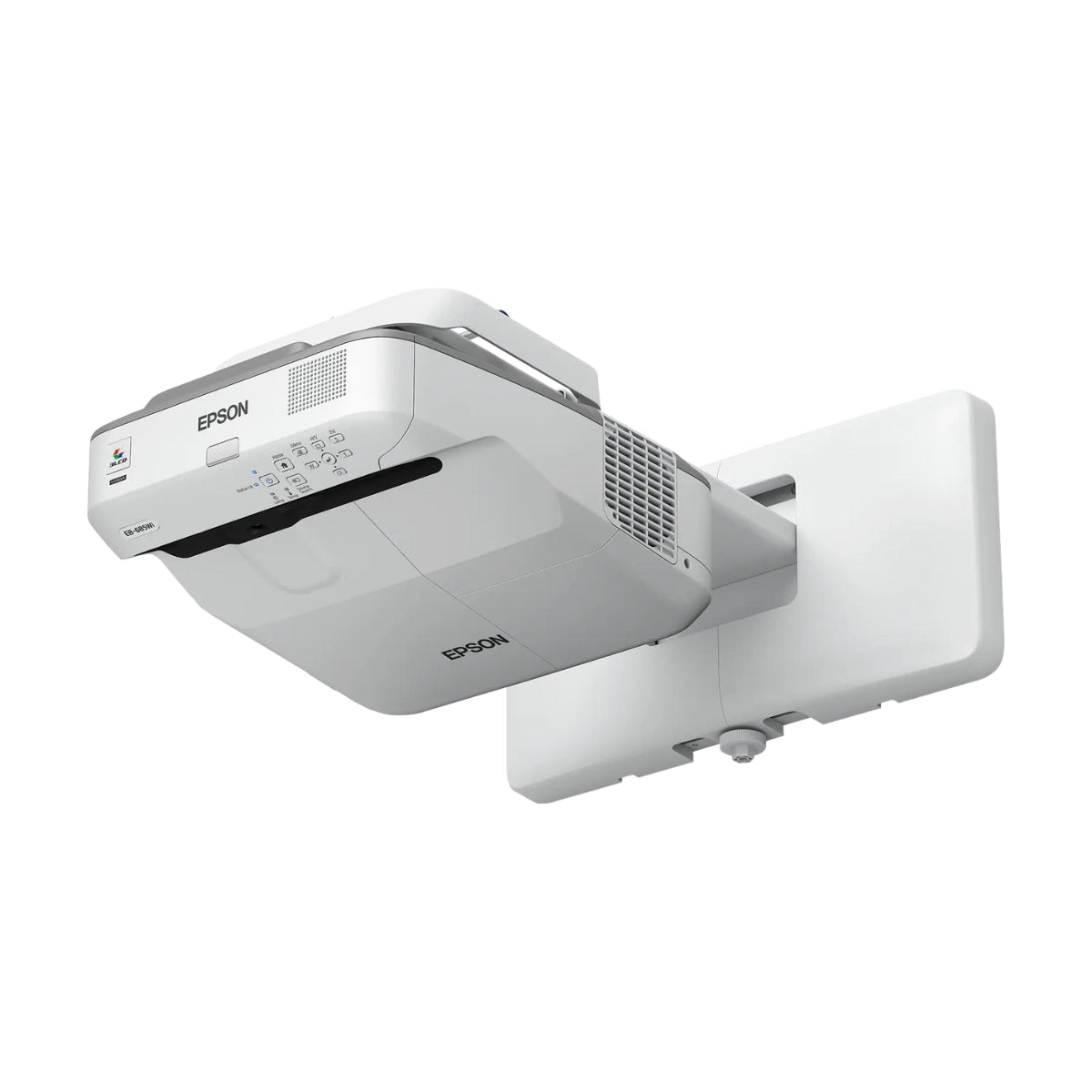

Epson EB-685W 3500lm WXGA Ultra Short Throw Projector

Create large, high-impact visuals in compact spaces with the Epson EB-685W. Capable of projecting up to a 100-inch display, this ultra short throw projector delivers outstanding image quality using HD-ready WXGA resolution and Epson’s advanced 3LCD technology for bright, accurate colours and clear detail.

Product Features:

  • Up to 100-Inch Display – Enjoy large, clear visuals with outstanding image quality.
  • HD-Ready WXGA Resolution – Sharp and vibrant images powered by Epson 3LCD technology.
  • Reliable Performance – Enhanced durability with improved reliability and longer lamp life.
  • Wireless Connectivity (Optional) – Easily present content from multiple devices without cables.
  • Long Lamp Life – Up to 10,000 hours in Eco Mode for extended use and lower maintenance.
  • 3500 Lumens

Specifications:

Technology

  • Projection System: 3LCD Technology
  • LCD Panel: 0,59 inch with D9


  • Color Light Output : 3.500 Lumen- 2.900 Lumen (economy) In accordance with IDMS15.4
  • White Light Output: 3.500 Lumen - 2.900 Lumen (economy) In accordance with ISO 21118:2020
  • Resolution: WXGA 2
  • Resolution Enhancement: HD ready
  • Aspect Ratio: 16:10
  • Light source:  Lamp
  • Lamp: 250 W, 5.000 h durability, 10.000 h durability (economy mode), 9.000 h durability (economy mode)
  • Keystone Correction: Manual vertical: ±3 °, Manual horizontal ±3 °
  • Colour Video Processing: 10 Bits
  • 2D Vertical Refresh Rate: 100 Hz - 120 Hz
  • Colour Reproduction: Upto 1.07 billion colours

Optical

  • Throw Ratio: 0,28 - 0,37:1
  • Zoom: Digital, Factor:1 - 1,35
  • Screen Size: 60 inches - 100 inches
  •  Projection Distance Wide:   0,4 m ( 60 inch screen )
  •  Projection Distance Tele:  0,6 m ( 100 inch screen )
  • Projection Lens F Number: 1,6
  • Projection Lens Focus: Manual
  • Offset:  6 : 1

Connectivity

  • Interfaces: USB 2.0-A, USB 2.0, RS-232C, HDMI in (3x), Composite in, RGB in (2x), RGB out, Jack plug out, Jack plug in (3x), Microphone input, Ethernet interface (100 Base-TX / 10 Base-T), Wireless LAN IEEE 802.11b/g/n (optional), VGA in (2x), VGA out, MHL
  • Epson iProjection App: Ad-Hoc / Infrastructure

Advanced Features

  • Security: Kensington lock, Password lock, Security cable hole, Wireless LAN unit lock, Wireless LAN security, Password protection
  • Other features : Auto brightness adjustment, Automatic input selection, Built-in speaker, CEC compatible, Customizable user logo, Digital zoom, Direct Power on/off, Document Camera Compatible, Dynamic lamp control, Easy OSD pre-setting, Home Screen, Long lamp life, Split-Screen-Function, Wireless LAN capable
  • Video Color Modes: Blackboard, Dynamic, Presentation, Sports, sRGB, Theatre, Whiteboard

General

  • Power consumption: 301 Watt (Normal On-Mode), 258 Watt (Eco On-Mode), 354 Watt (Normal Peak-mode), 309 Watt (Eco Peak-Mode), 0,37 Watt (Energy saving standby)
  • Supply Voltage:  AC 100 V - 240 V, 50 Hz - 60 Hz
  • Product dimensions: 367‎ x 400 x 149 mm (Width x Depth x Height)
  • Product weight: 5,7 kg
  • Noise Level: Normal:35 dB (A) - Economy:30 dB (A) - Eco2:29 dB (A)
  • Supported Temperature: Operation 5° C - 40° C, Storage -10° C - 60° C
  • Supported Humidity: Operation 20% - 80%, Storage 10% - 90%
  • Loudspeaker: 16 Watt
  • What's in the box: Installation/safety manual, Main unit, Power cable, Projector feet, Quick Start Guide, Remote control incl. batteries, Safety wire set, Template Sheet, Wall hanging bracket
  • Room Type / Application: Meeting room / Classroom
  • Positioning:  Wall Mounted
  • Colour: White / Grey
