Esener 129kWh Lithium-ion Battery Energy Storage System
Esener 129kWh Lithium-ion Battery Energy Storage System
Couldn't load pickup availability

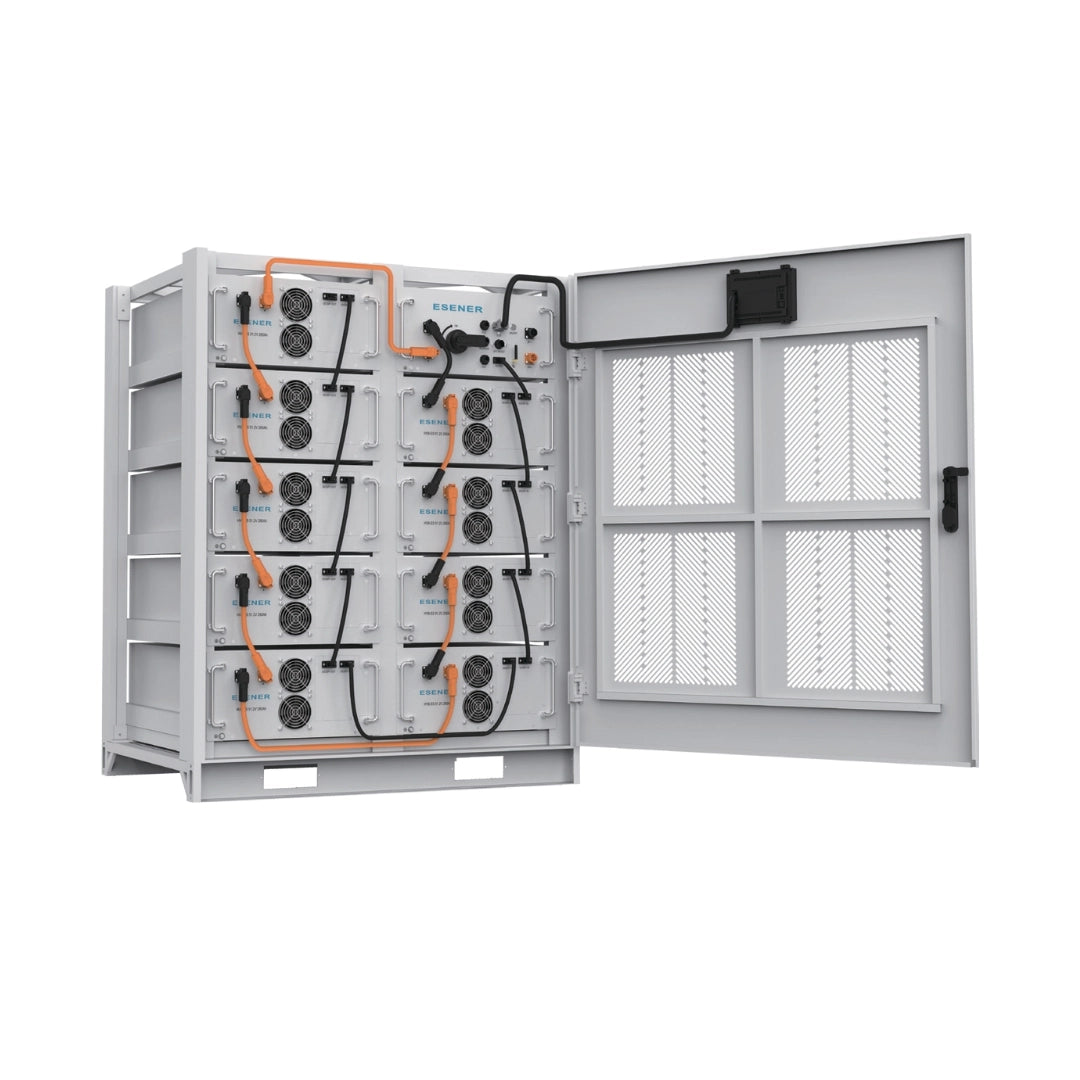

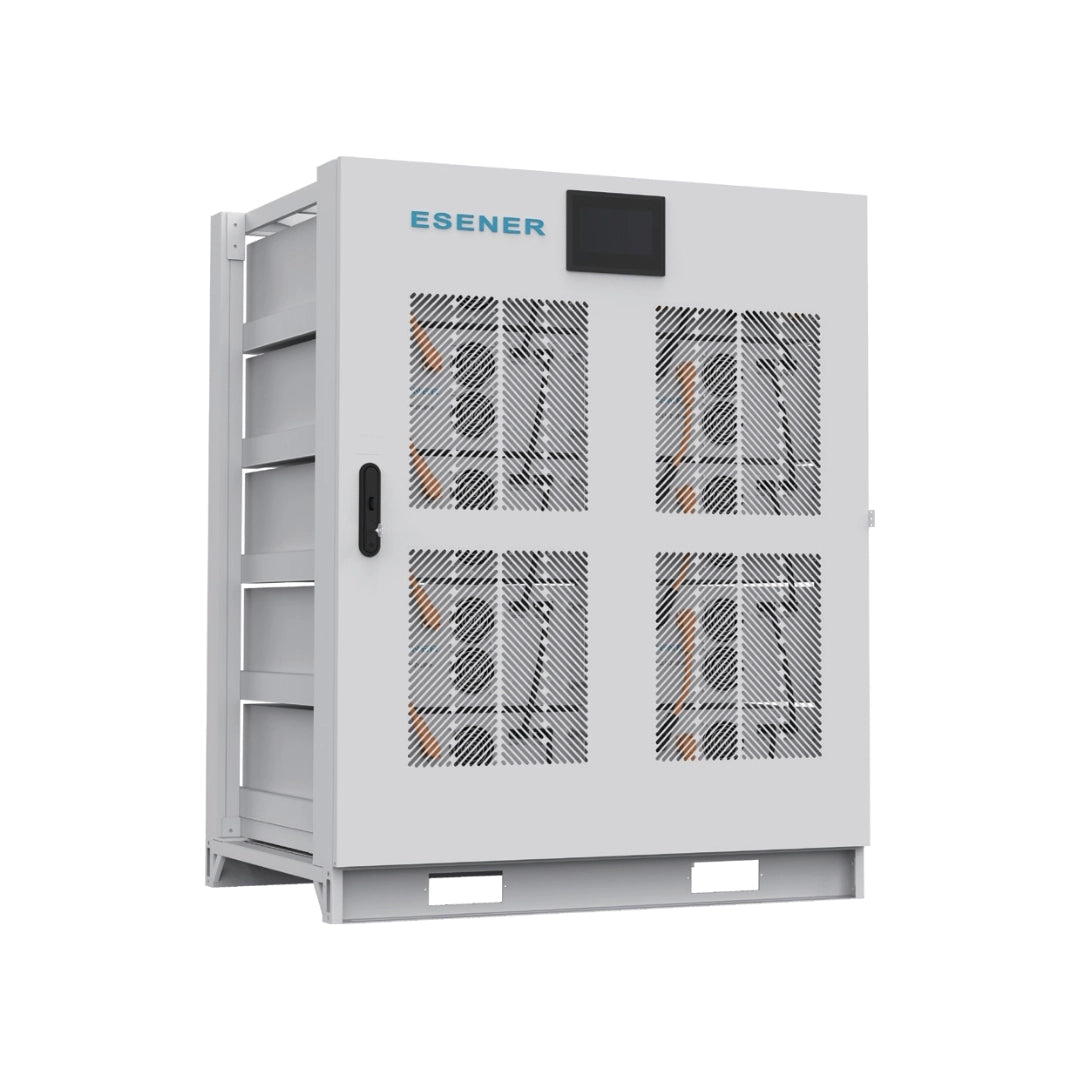

Esener 129kWh Lithium-ion Battery Energy Storage System
The Esener 129kWh Lithium-ion Battery Energy Storage System is a high-performance indoor energy storage system designed for commercial, industrial, and large-scale residential applications. Featuring a modular rack-mounted design, it utilizes lithium-iron-phosphate (LiFePO₄) battery technology, which meets high safety standards and offers a long cycle life. With integrated self-developed B-level BMS, smart monitoring, and compatibility with top inverter brands, this system ensures dependable, scalable energy storage for a wide range of energy management needs—whether for On-grid, Off-grid, or Backup power systems.
Product Features:
- Built-in self-developed B-level Battery Management System (BMS) for high safety and system stability
- Standard rack and module design with front access for easy installation and maintenance
- Local and remote monitoring capabilities
- High energy density lithium-ion cells with aluminum casing
- Long lifespan with 8000 cycles at 80% Depth of Discharge (DOD)
- Passive cell balancing technology for improved performance and battery health
- LCD display with SOC (State of Charge) and alarm indication
- Supports CAN and RS485 communication protocols
- Modular and scalable design allows for capacity expansion
- Compatible with multiple inverter brands: SOLIS, DEYE, SUNSYNK, ATESS, MEGAREVO
- Suitable for On-grid, Off-grid, and Backup power systems
- Indoor use with IP20 protection rating
Specifications:
- Model: HVB-ES-129KWh
- Battery Type: Lithium Iron Phosphate (LiFePO₄)
- Usable Energy (DC): 129.024 kWh
- Battery Module Capacity: 14.336 kWh, 51.2 V
- Number of Modules: 9
- Nominal Voltage: 460.8 V
- Operating Voltage Range: 403.2-526.6 V
- Standard Charge/Discharge Current: 140 A / 0.5 C
- Maximum Continuous Charge/Discharge Current: 140 A / 0.5 C
- Cycle Life: ≥8000 cycles at 80% DOD, 25°C, 0.5C
- Protection Rating: IP20
- Dimensions (W x D x H)(mm): 1120 x 845 x 1400
- Weight: Approximately 1240 kg
- Discharge Temperature Range: -20°C to 55°C
- Charge Temperature Range: 0°C to 55°C
- Storage Temperature Range: -10°C to 45°C
- Humidity Range: 5% – 85% RH
- Communication Interfaces: CAN, RS485
- Display: LCD with SOC and alarm indicators
- Scalability: Yes
- Compatible Inverters: SOLIS, DEYE, SUNSYNK, ATESS, MEGAREVO
- Applications: On-grid, Off-grid, Backup systems
Note: Delivery Not Included - Once your order has been placed, our sales team will contact you to confirm delivery fees.
