ESENER ES-14.33kWh 51 .2 V 280Ah Lithium Battery

ESENER ES-14.33kWh 51 .2 V 280Ah Lithium Battery

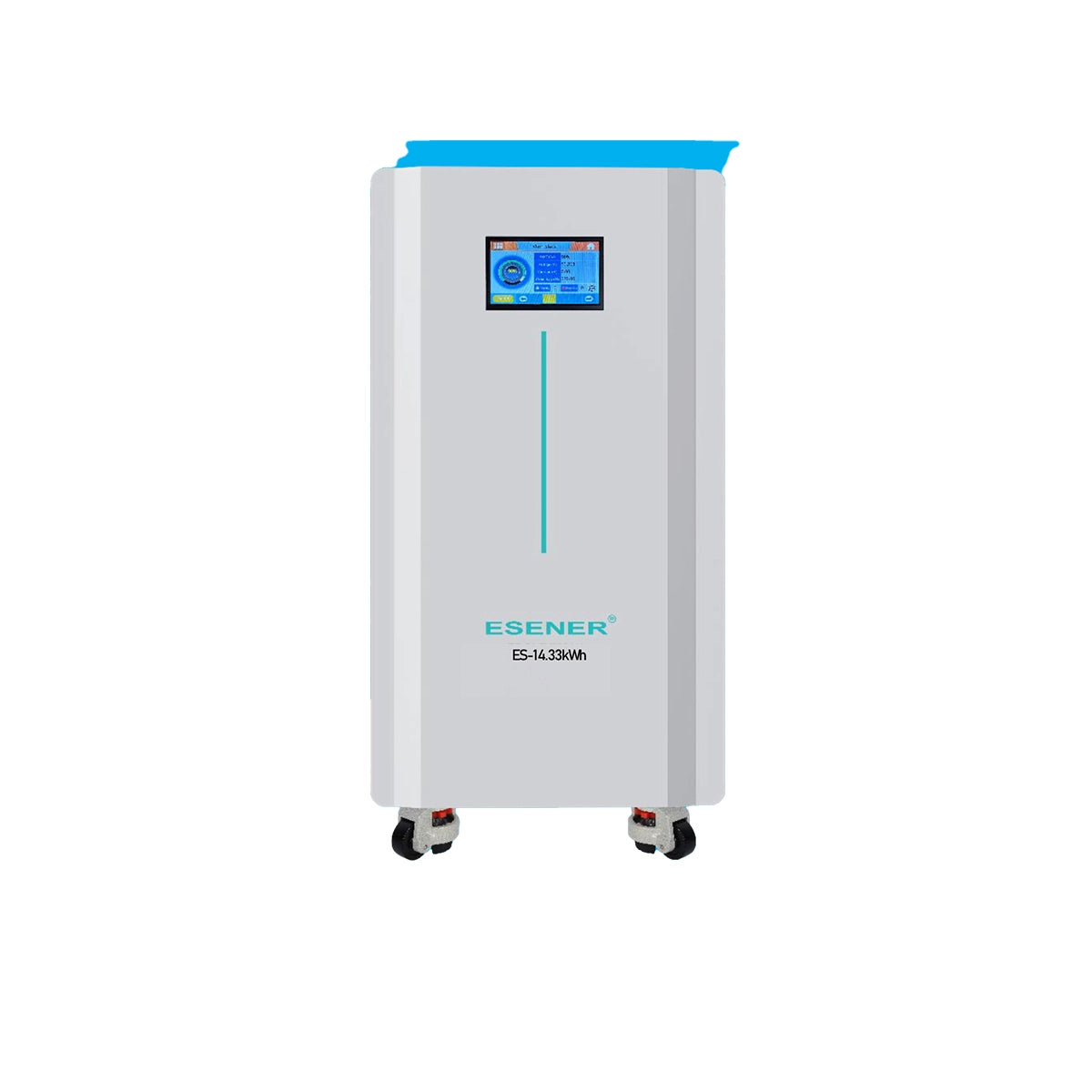

The ESENER ES-14.33kWh Lithium Battery is a high-performance, wall-mountable energy storage solution designed for both residential and commercial solar systems. Featuring advanced lithium technology, robust safety mechanisms, and seamless inverter compatibility, this smart battery provides reliable backup power, high energy density, and intelligent monitoring through its built-in 9” touchscreen and app connectivity.

Product Features:

• Smart Battery Management System (BMS) with current limiting function
• Fully compatible via CAN Bus with top inverter brands (e.g. Growatt, SOLAX, LuxPower, DEYE, MUST, Victron, SMA, Voltronic)
• Excellent high-temperature performance
• Long cycle life and extended service lifespan
• High energy density and efficient energy conversion
• Integrated 9” color touchscreen for monitoring and inverter protocol selection
• Bluetooth and app-based monitoring capabilities
• WiFi-enabled for OTA (Over-the-Air) firmware upgrades
• Heavy-duty side handles for easy wall-mount or shelf rack installation
• Low self-discharge rate for energy retention
• Built-in electronic protections against overcharge, over-discharge, and over-temperature
• Supports parallel connection of up to 15 units with full communication
• Compatible with most inverters and chargers on the market
• Durable steel case with white bake lacquer finish

Specifications:

• Model: ES-14.33kWh
• Rated Capacity (5HR): 280Ah
• Nominal Voltage: 51.2V
• Discharge Cut-off Voltage: 44.8V
• Equalized Charge Voltage: 56.8V
• Max Continuous Charging Current: 200A
• Max Continuous Discharging Current: 200A
• Weight: Approx. 120kg
• Display: 9” Touchscreen LCD
• Parallel Capability: Up to 15 packs with full communications
• Ports:
  • 1x CAN-bus
  • 1x RS-485 battery link
  • 2x Parallel instruction ports
• Battery Cells: New Li-ion Prismatic Cells
• BMS: Pace BMS
• Cycle Life:
  • ~4000 cycles @ 100% DOD
  • Over 6000 cycles @ 80% DOD
• Design Life: +/- 15 Years
• Warranty: 5 Years
• Operating Temperature:
  • Charging: 0°C to +50°C
  • Discharging: -10°C to +50°C
  • Storage: -10°C to +50°C
• Dimensions (WxDxH): 900mm x 430mm x 230mm
• Enclosure: White bake lacquer steel case
• Certifications: UN38.3, IEC, MSDS
• Protections:
  • Electronic circuit breaker
  • Voltage protection
  • Current limiting
