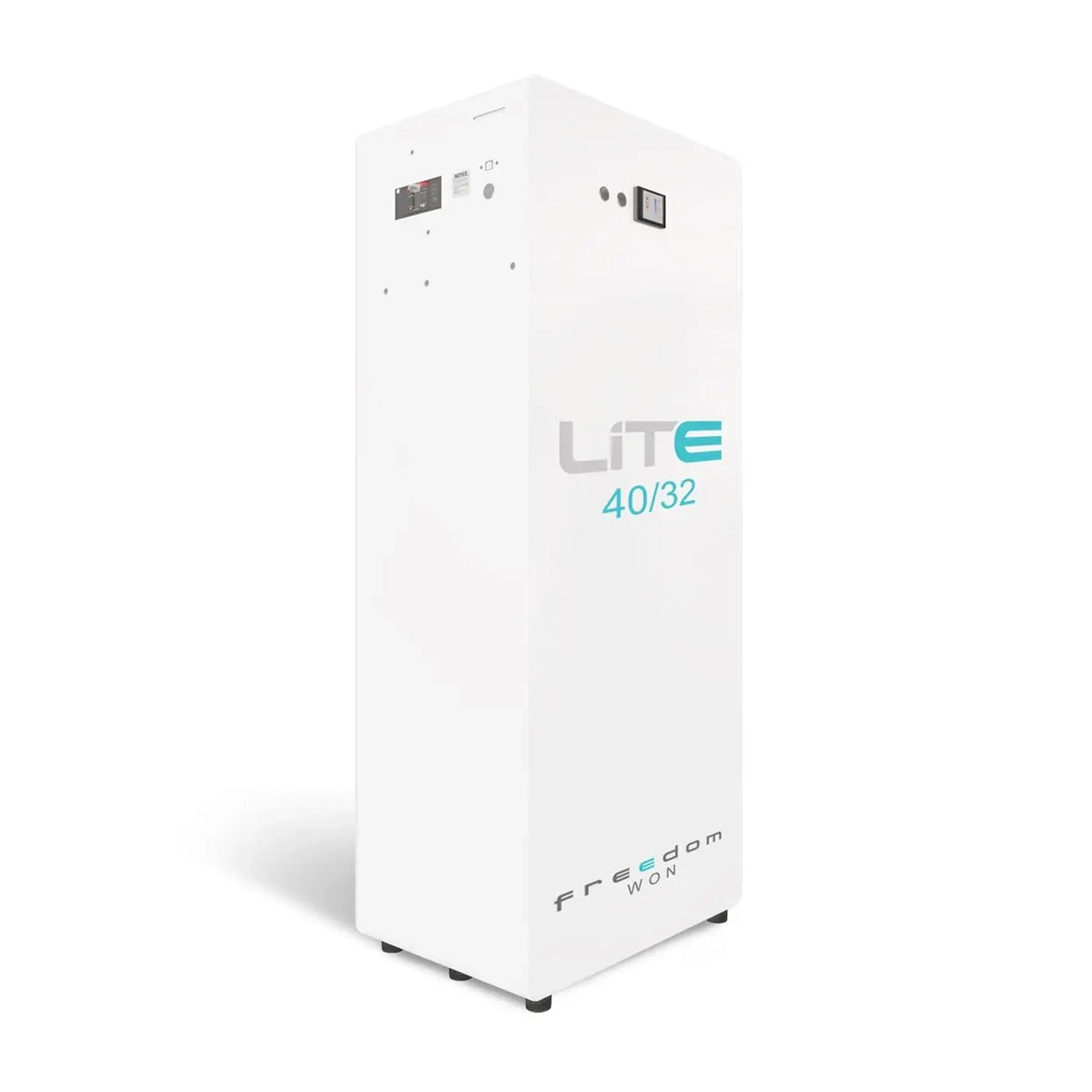

Freedom Won Lite 2 Business 40/32 LV (Low Voltage) Battery 40kW 52V

- Total Energy Capacity 40kWh
- Energy, 80% DoD - 32kWh
- Energy, 90% DoD - 36kWh
- Current Capacity - 100Ah
- Max & Cont. Charge Current - 600A
- Max & Cont. Charge Power - 30kW
- Max/Cont. Discharge Current - 750/600A
- Max/Cont. Discharge Power - 38/30kW
- Max Recommended Inverter Total Rated Power (cont.) - 25kVA
- Nominal Voltage - 52V, to suit 48V Inverters, min 47V, max 56V
- Weight - 412kg
- Dimensions on or against wall - Height x Width x Depth [mm] - 1895x584x310
- Enclosure - Aluminium – powder coated white front, rated for indoor use
- DC Connection - Integrated Cables [no. per -electrode] - 2x 95mm²
- Control Interface - RJ45 Socket x 2 – CAN Bus for Interfacing with Compatible Inverters and System Controllers
- Warranty - 10 years or 4 000 cycles for average 80% DoD, and max 90% DoD
- Service Life - 16 years (> 5 500 cycles) expected life at 80% DoD (1), > 20 years (> 7 500 cycles) at 50% DoD

Please ensure that the battery bank's power and storage capacity is sufficient for the inverter and
installation requirements.

This product must be installed by a qualified electrician/technician. All installations must adhere to
local wiring regulations and standards. Crystal Communications and its Supplier will not be held
liable for any product malfunctions as a result of incorrectly installed systems.

Technical specifications and general features are provided on our website, however, as individual
needs and requirements may differ, it is recommended that our sales team is contacted for any
specific questions before a purchase is made to ensure that the item being purchased will satisfy
your requirements.

The images shown are for illustration purposes only and may not be an exact
representation of the product.

Crystal Communications (Pty) Ltd may not have all the specific items or quantities of stock you have
requested. Our dedicated Customer Service Team will use our extensive network to try to source the
stock for you ASAP. You will be notified within 24 hours if we cannot source the required item, and a
full refund will be processed on your order. Should you wish to contact us directly, please call
0118670488 or email sales@crystalcom.co.za
