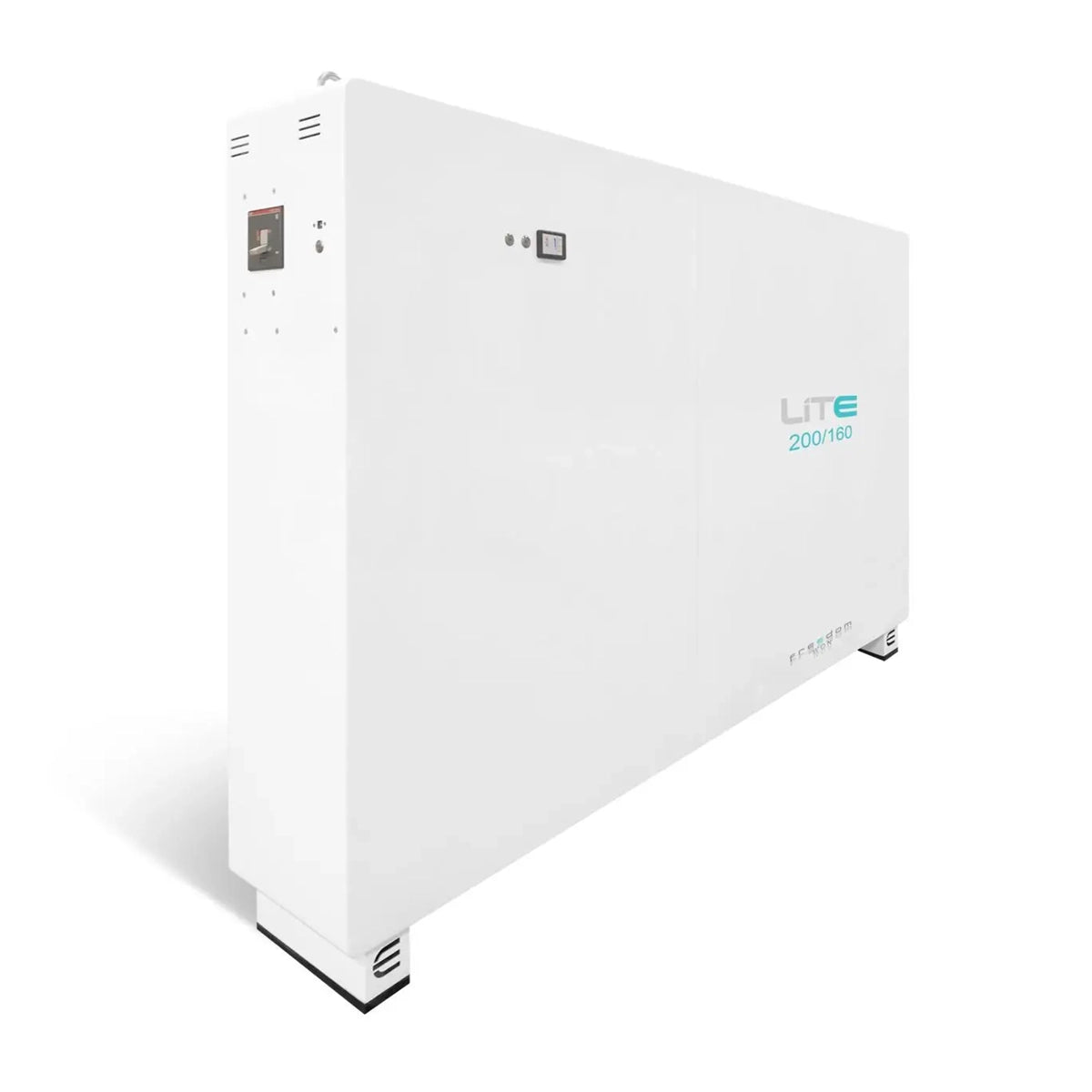

Freedom Won Lite Commercial 200/160 HV Battery

Freedom Won Lite Commercial 200/160 HV Battery

This Freedom Won Lite Commercial HV LiFePO4 battery is the perfect high quality battery for all your large commercial and industrial solar solutions. The range is from 100KWh to 700KWh batteries.

Product Features:

• Large Commercial Storage solution in single deployment
• 10 year Local manufacturer's warranty

Specifications:

• Total Energy Capacity [kWh] - 200
• 80% DoD Energy [kWh] - 160
• 90% DoD Energy [kWh] - 180
• Current Capacity [Ah] - 400
• Max. Cont. Charge and Discharge Current (1) [A] - 400
• Max. Cont. Charge & Discharge Power (1) [kW] - 200
• Nominal Voltage (2) [V] - 512
• Max. Inverter Cap. [kVA] - 200
• Total Weight [kg] - 2200
• Height [mm] - 2100
• Depth (from wall) [mm] - 350
• Length (width along wall) [mm] - 3200
• DC Cables, [no. per electrode] (3) [mm2 ] - 1x95
• Round Trip Efficiency - 96-97%
• Enclosure - 3mm thick Aluminium, powder coated, tamper proof, indoor use
• External Interface - CAN Bus
• On-board Management - Full battery management system and internal trip protection
• Human Interfaces - On and Off Buttons, State of Charge Display (0 to 100%), Error light, Error Reset Button, CANdapter for Programming and data access with PC, main breaker
• Remote Monitoring - Real time data logging and transmission via WiFi to online portal of key battery information
• Warranty (5) - 10 years or 4 000 cycles for average 80% DoD, and max 90% DoD
• Design Life – Cycles  -  >16 years (>5 500 cycles) expected life at 80% DoD per cycle, >20 years (>7 500 cycles) at 50% DoD

Note: Delivery Not Included - Once your order has been placed, our sales team will contact you to confirm delivery fees.

Important Notice: Click Here
