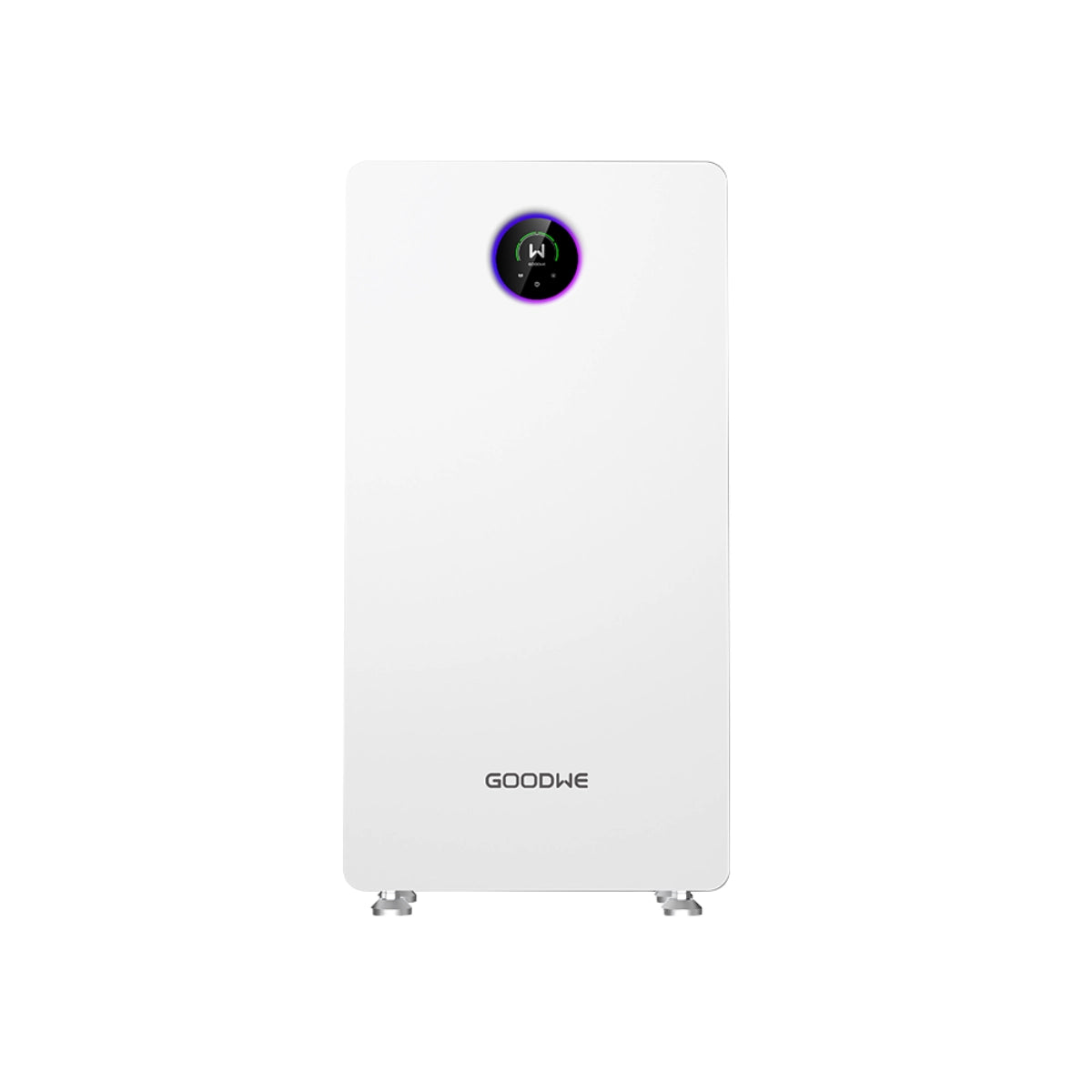

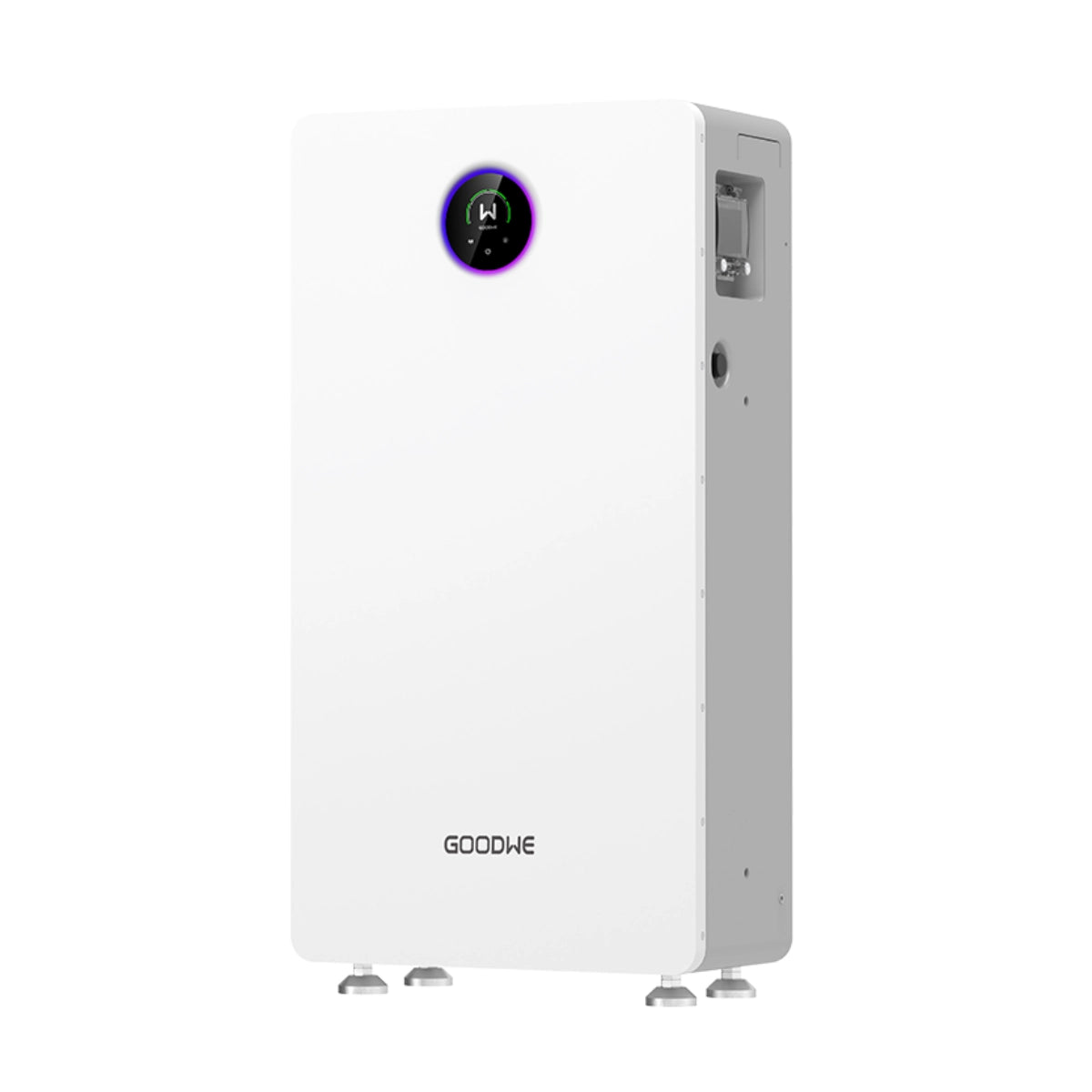

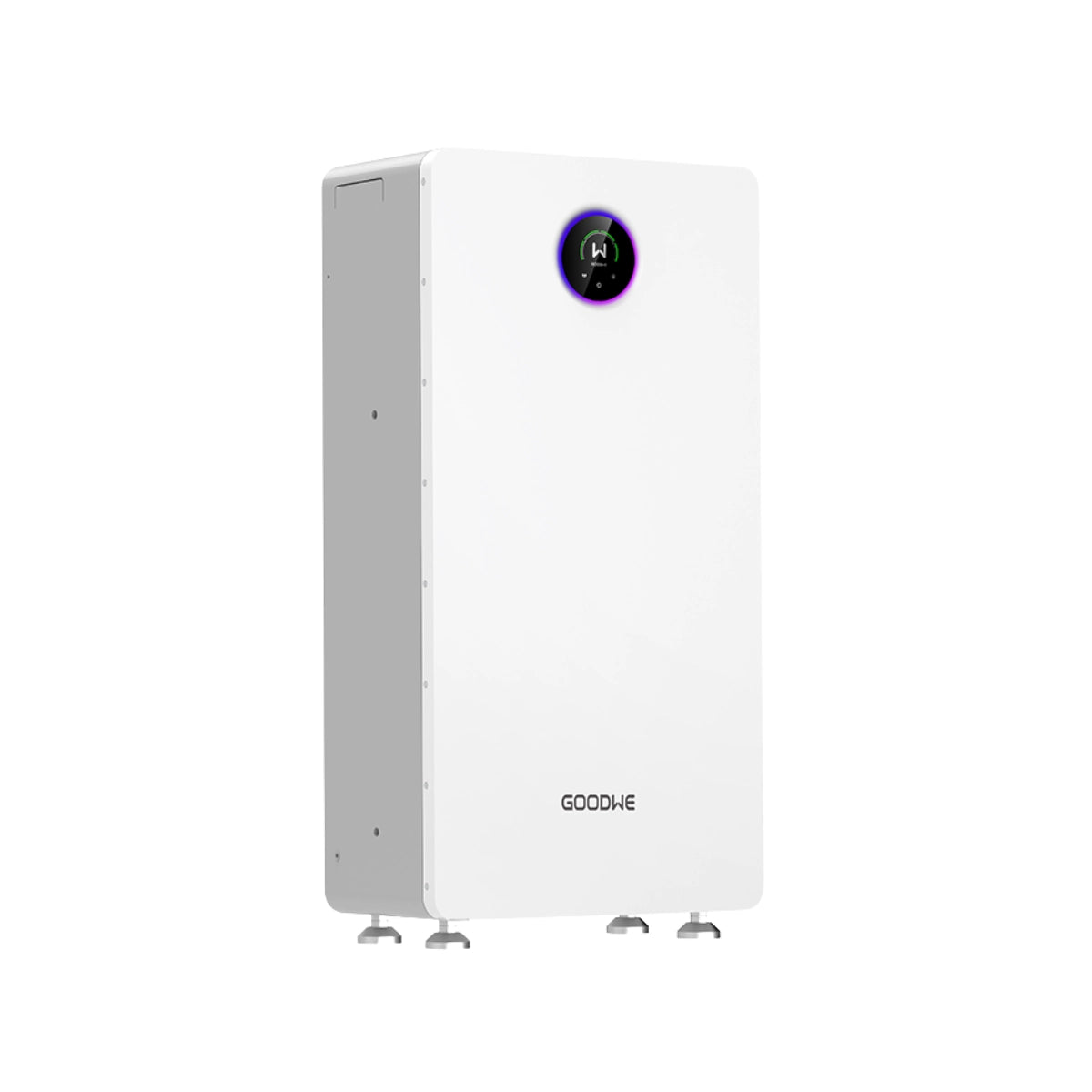

GoodWe 16kWh LV Battery GW16-BAT-LV-G10 with Aerosol

GoodWe 16kWh LV Battery GW16-BAT-LV-G10 with Aerosol

R 41,443.00
R 41,443.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

GoodWe 16kWh LV Battery GW16-BAT-LV-G10 with Aerosol

The Lynx A G4 Series 16kWh battery is a high-capacity, low-voltage energy storage solution designed for residential use. It allows homeowners to store excess solar energy for peak demand and backup power, increasing energy independence and maximizing self-consumption. Fully compatible with GoodWe low-voltage inverters, it delivers seamless integration and optimized performance for a reliable and efficient home energy experience.

Product Features:

  • High Capacity & Output: 16.1 kWh nominal energy (≥14.9 kWh usable) powered by 314Ah LFP cells, supporting 10 kW continuous discharge and 16 kW peak power (15 seconds).
  • Multi-Layer Safety: Thermal-electric physical separation, cell-level thermal barriers, an integrated DC circuit breaker, and optional aerosol fire suppression.
  • Easy Scalability: Dual-terminal design enables busbar-free wiring, allowing up to 30 units in parallel (up to ~480 kWh capacity).
  • Flexible Installation: Compact footprint supporting floor-standing or wall-mounting, with optional mounting wheels for easy transport.
  • Harsh-Environment Ready: IP65 water/dust resistance and C5M corrosion protection, featuring built-in heating for operating temperatures from -20°C to 55°C.
  • Inverter Integration: Native CAN communication for seamless setup with GoodWe low-voltage hybrid inverters.

PRODUCT SPECIFICATIONS

- Battery Type: LFP (LiFePO4)
- Rated Capacity: 314 Ah
- Rated Energy: 16.1 kWh
- Usable Energy: ≥ 14.9 kWh
- Nominal Voltage: 51.2 V
- Voltage Range: 45.92 – 57.76 V
- Max. Continuous Charging Current (System): 157 A
- Max. Continuous Discharging Current (System): 200 A
- Max. Input Power: 8 kW
- Max. Output Power: 10 kW
- Peak Output Power (System): 16 kW (15s)
- Charging Temperature Range: 0 to +55 °C
- Discharging Temperature Range: -20 to +55 °C
- Relative Humidity: 5% – 95%
- Max. Operating Altitude: 4000 m
- Communication: CAN
- Weight: ≤ 122 kg
- Usable Extinguishing Agent: CO2, H2O
- Crucial Material: LiFePO4, C, Cu, LiPF6, Al, (C3H6)n
- Ingress Protection: IP65
- Protective Class: I
- Dimensions (W x H x D): ≤ 470 x 895 x 245 mm (No base)
- Function Configuration: Regulating wheel (Optional); Aerosol fire extinguishing (Optional)
- Max. Storage Time: -20 to +35°C ≤ 12 months; +35 to +45°C ≤ 6 months
Scalability: 30P
- Mounting Method: Wall-Mounted, Floor-Mounted
- Cycle Life: ≥ 10000
- Safety Certifications: IEC62619, IEC60730, IEC63056, CE
- EMC Certifications: CE
- Transportation Certifications: UN38.3, MSDS

IMPORTANT NOTICE

Please ensure that the battery bank's power and storage capacity is sufficient for the inverter and installation requirements.

This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. Crystal Communications and its Supplier will not be held liable for any product malfunctions as a result of incorrectly installed systems.

Technical specifications and general features are provided on our website, however, as individual needs and requirements may differ, it is recommended that our sales team is contacted for any specific questions before a purchase is made to ensure that the item being purchased will satisfy your requirements.

The images shown are for illustration purposes only and may not be an exact representation of the product.

Crystal Communications (Pty) Ltd may not have all the specific items or quantities of stock you have requested. Our dedicated Customer Service Team will use our extensive network to try to source the stock for you ASAP. You will be notified within 24 hours if we cannot source the required item, and a full refund will be processed on your order. Should you wish to contact us directly, please call 0118670488 or email sales@crystalcom.co.za
