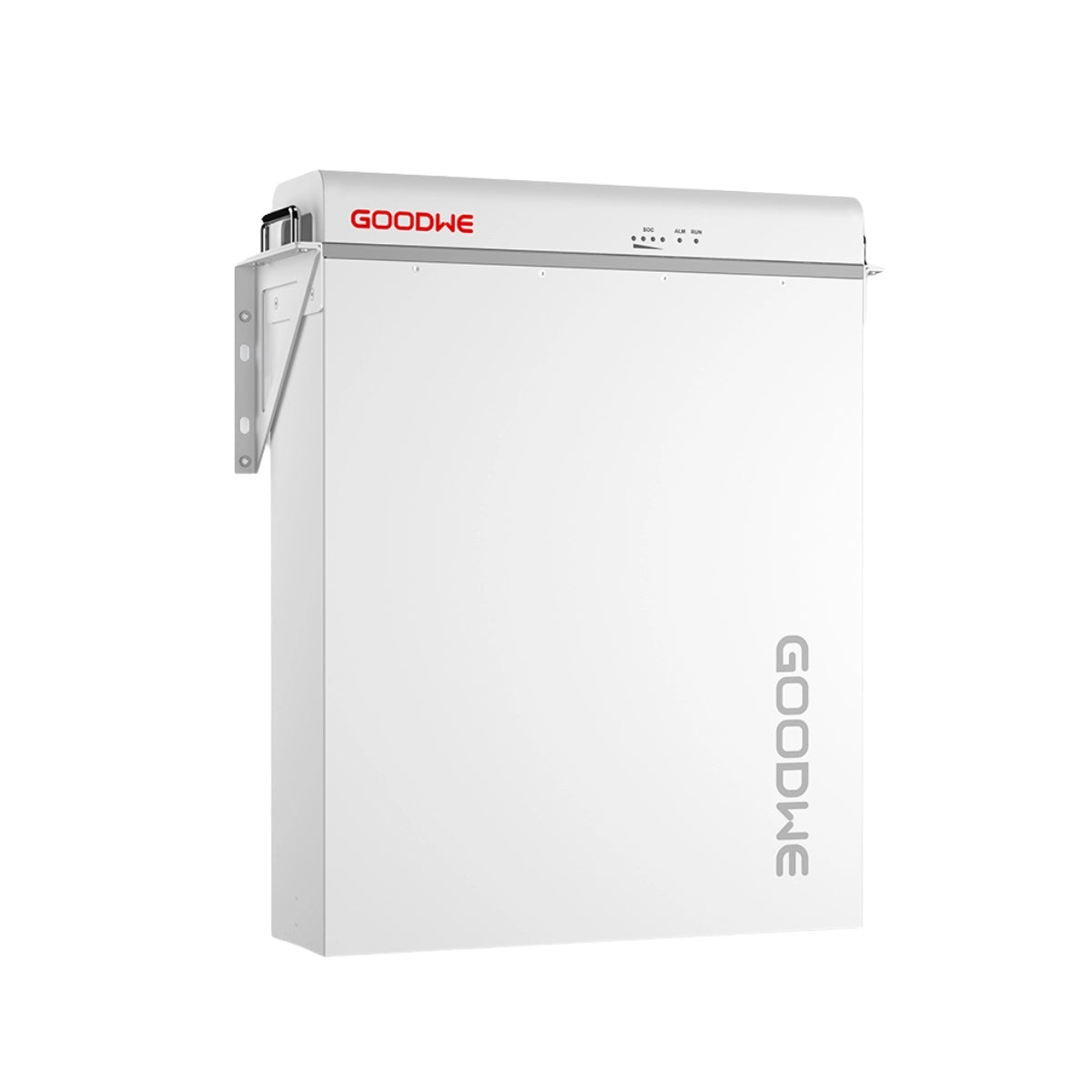

GoodWe 5kw Battery Lynx A G3 Series (LV) - LX A5.0-30 ( 5kWh )

- Nominal Battery Energy: 5.12 kWh
- Usable Energy: 5 kWh
- Cell Type: LFP (LiFePO₄)
- Operating Voltage Range: 43.20 ~ 58.24 V
- Nominal Charge Current: 60 A
- Max. Continuous Charge Current: 90 A
- Nominal Discharge Current: 100 A
- Max. Continuous Discharge Current: 150 A
- Max. Pulse Discharge Current: < 200 A (30 seconds)
- Max. Continuous Discharging Power: 7200 W
- Communication: CAN

Operating Temperature:
- Charge: 0°C & < T ≤ 55°C
- Discharge: -20°C &l < T ≤ 55°C

- Max. Storage Time: 12 months (maintenance-free)
- Max. Operating Altitude: 4000 m
- Weight: 44 kg

Dimensions (W × H × D):
- Core part: 442 × 133 × 520 mm
- Maximum: 483 × 133 × 559 mm

- Ingress Protection Rating: IP20
- Applications: On Grid / On Grid + Backup / Off Grid

Scalability: Up to 30 units in parallel (150 kWh total)
- Hand to hand / Combiner box / Busbar supported

- Mounting Method: 19-inch standard rack, floor-mounted, wall-mounted
- Round-trip Efficiency: ≥96%
- Cycle Life:>6000 cycles @ 25 ± 2°C, 0.5C, 70% SOH, 90% DOD

Certifications:
- Safety: IEC62619, IEC63056, N140
- EMC: EN IEC 61000-6-1 / -6-2 / -6-3 / -6-4
- Transportation: UN38.3, ADR
- Environmental: RoHS

Please ensure that the battery bank's power and storage capacity is sufficient for the inverter and installation requirements.

This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. Crystal Communications and its Supplier will not be held liable for any product malfunctions as a result of incorrectly installed systems.

Technical specifications and general features are provided on our website, however, as individual needs and requirements may differ, it is recommended that our sales team is contacted for any specific questions before a purchase is made to ensure that the item being purchased will satisfy your requirements.

The images shown are for illustration purposes only and may not be an exact representation of the product.
