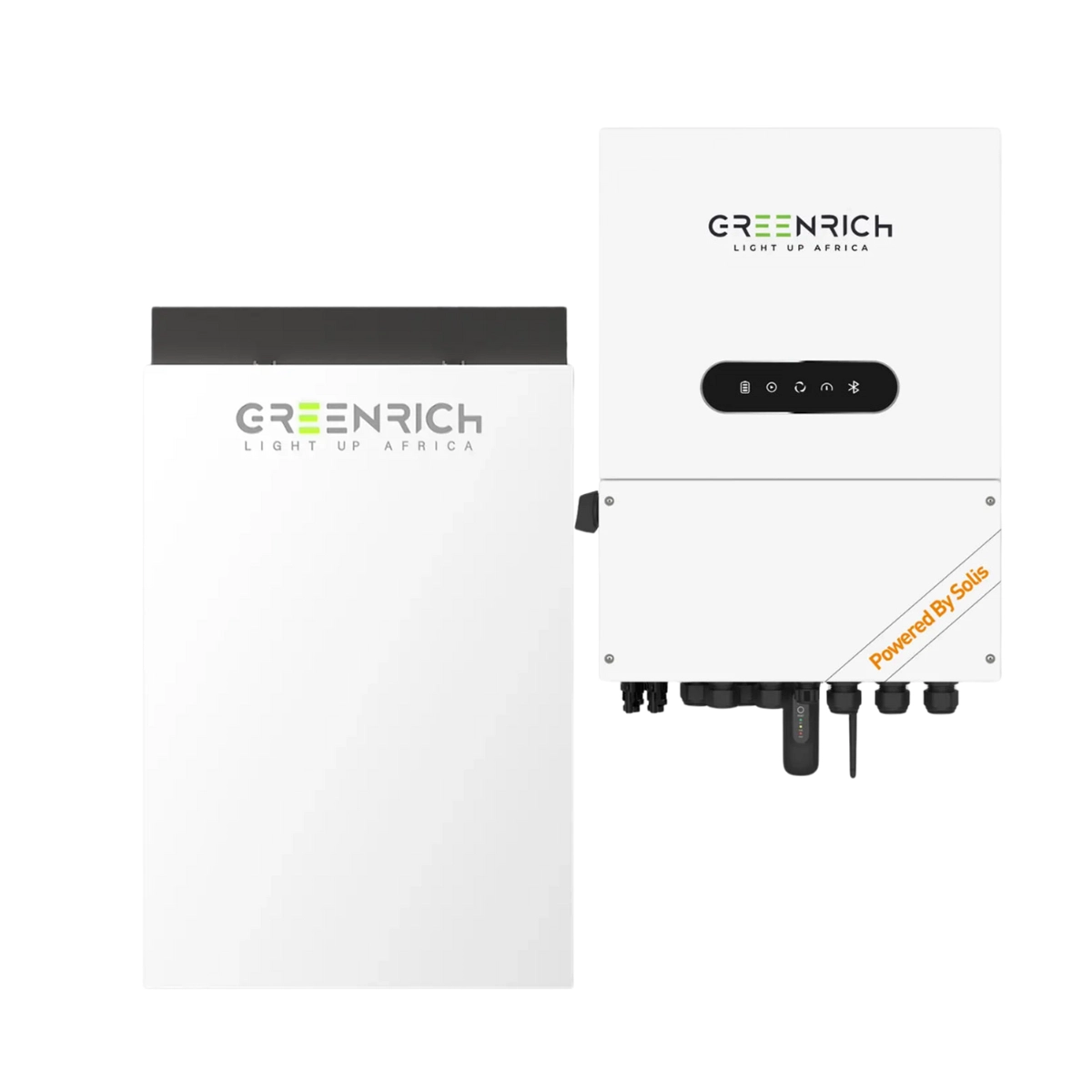

Greenrich 6kW Hybrid Inverter 4.95kWh Wall Mount Lithium Battery - Bundle

Greenrich 6kW Hybrid Inverter 4.95kWh Wall Mount Lithium Battery - PLUS 10-Year Warranty - Bundle

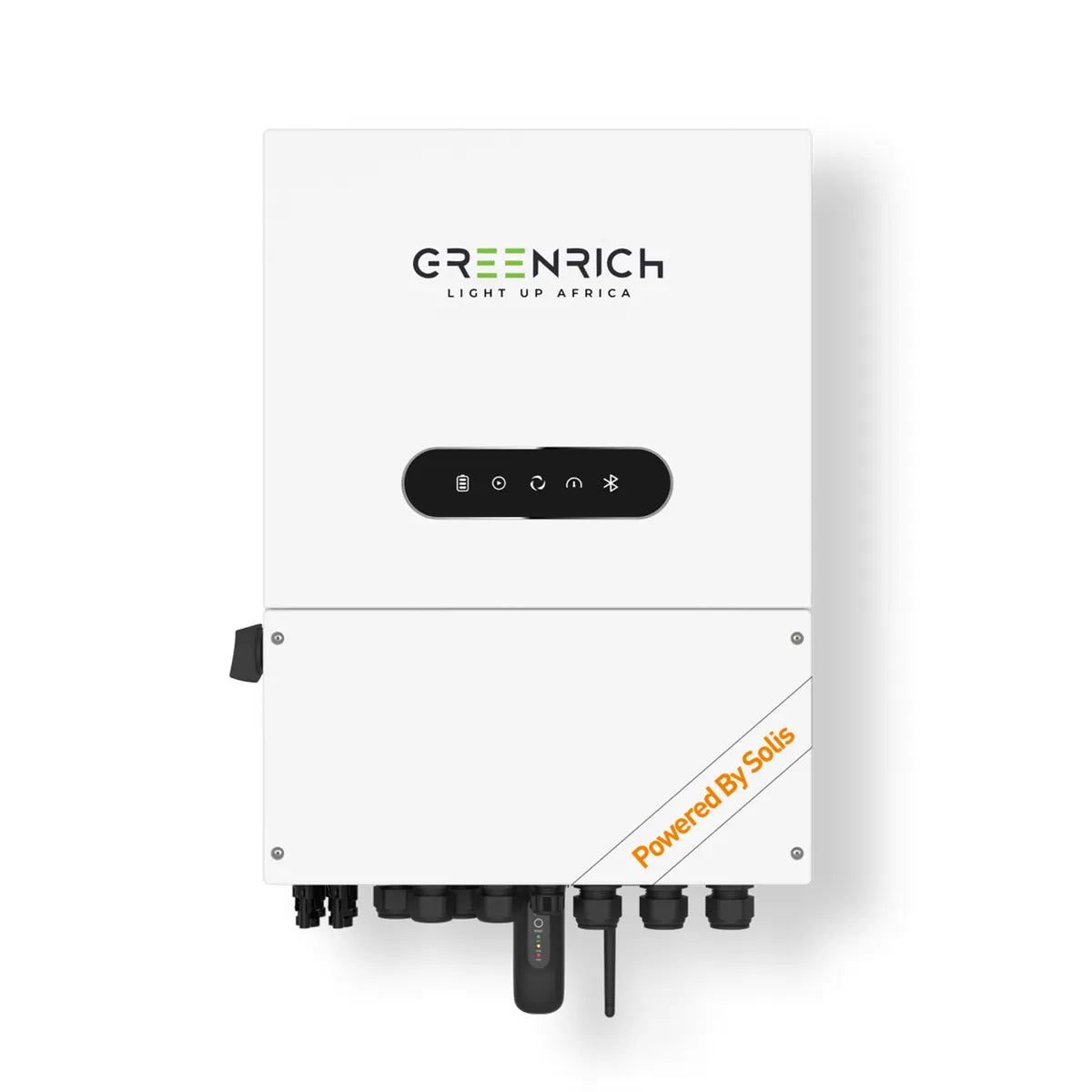

INVERTER

Product Features:

• 200% Power Surge Overload (10 seconds)
• Smart App
• IP66 Weather Rating
• 150% More Solar Power
• Bluetooth Connectivity

Specifications:

Input DC (PV side)

• Recommended max. PV power: 9.6kW
• Max. input voltage: 600 V
• Rated voltage: 90V
• Start-up voltage: 90 V
• MPPT voltage range: 90‑520V
• Max. input current: 16 A / 16 A
• Max. short circuit current: 24 A / 24 A
• MPPT number/Max. input strings number: 2/2

Input AC (Grid side)

• Input voltage range: 187-253 V
• Max. input current: 40A
• Frequency range: 45-55 Hz / 55-65 Hz

Output AC (Grid side)

• Rated output power: 6kW
• Max. apparent output power: 6.6 kVA
• Rated grid voltage: 220 V / 230 V
• Rated grid frequency: 50 Hz / 60 Hz
• Rated grid output current: 27.3A/26.1A
• Max. output current: 30A

Battery

• Battery type: Li-ion / Lead-acid
• Battery voltage range: 40-60 V
• Max. charge / discharge power: 6kW
• Max. charge / discharge current: 135A
• Communication: CAN/RS485

Physical

• Dimensions (W*H*D): 406*560*205 mm
• Weight: 24 kg
• Ingress protection: IP66
• Cooling concept: Natural convection

BATTERY

Product Features:

• Discharge
Current
150A
(1.5C
continous)
• Overvoltage & Undervoltage protection
• Short‑circuit protection
• Low & High temperature charge protection
• Low & High temperature discharge protection
• Charge & Discharge over‑current protection
• Dormancy function
• RS485 & Rs232 communication
• CAN communication

Specifications:

• Charging current: 80A
• Charging cut‑off Voltage: 57.4V
• Discharging cut‑off voltage: 44.8V
• Max. Discharge Current: 150A
• Peak Discharge Current: 350A (100ms)
• Rated Voltage: 51.2V
• Nominal capacity: 96.6Ah | 4.95kWh
• Dimentions: 175.4
x
366
x
586mm
• Weight: about about
48
kg
• COMPATABILITY: Deye, SUNSYNK, Growatt, LUX Power, Goodwe, Voltronic, KODAK, Axpert, Victron etc.
• Warranty: 10 years warranty, > 6000 cycles life
