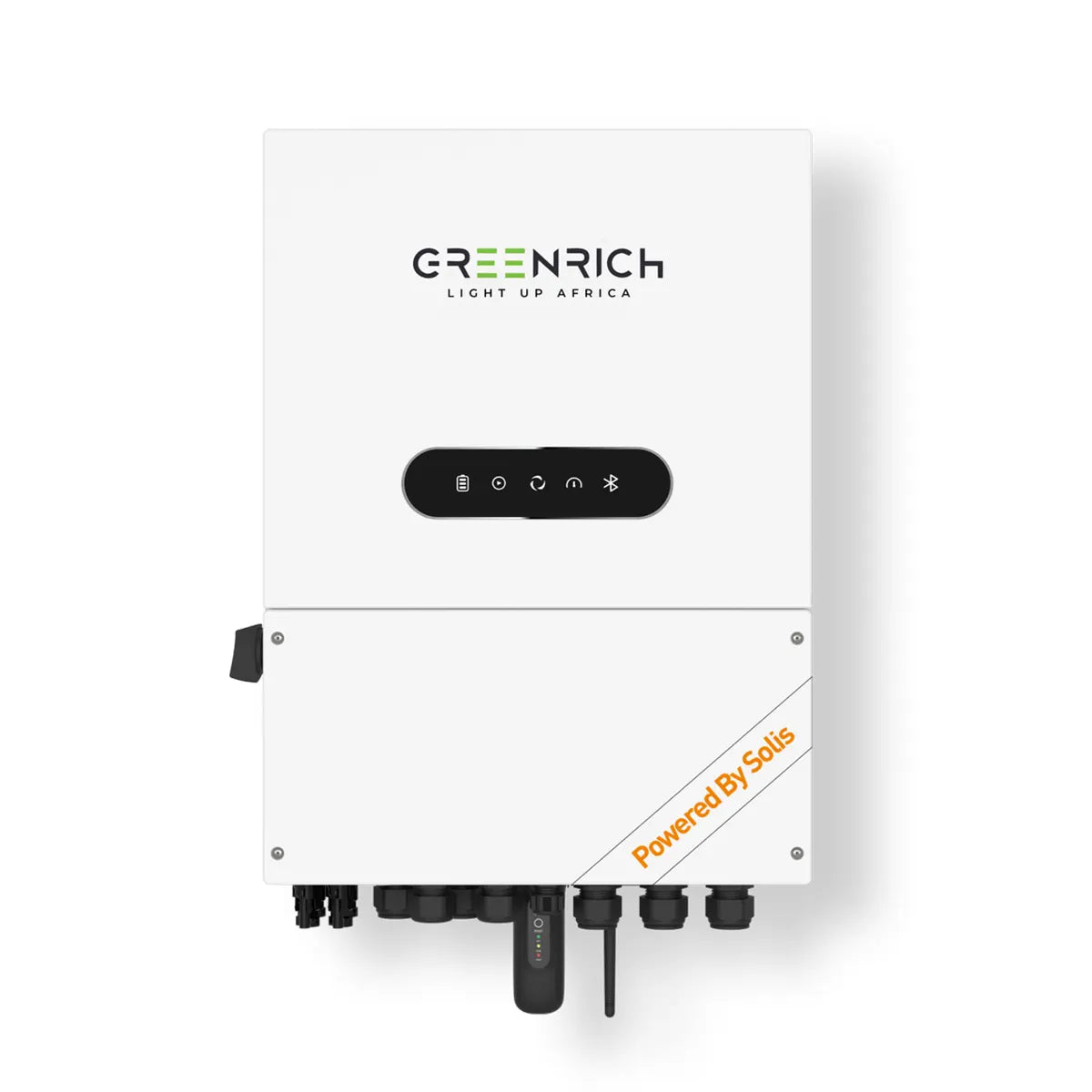

Greenrich 8kW Hybrid Inverter

Greenrich 8kW Hybrid Inverter - GR‑8K1P‑L‑PRO

Product Features:

• 200% Power Surge Overload (10 seconds)
• Smart App
• IP66 Weather Rating
• 150% More Solar Power
• Bluetooth Connectivity

Specifications:

Input DC (PV side)

• Recommended max. PV power: 12.8 kW
• Max. input voltage: 600 V
• Rated voltage: 90V
• Start-up voltage: 90 V
• MPPT voltage range: 90‑520V
• Max. input current: 32A/20A
• Max. short circuit current: 36A/30A
• MPPT number/Max. input strings number: 2/3

Input AC (Grid side)

• Input voltage range: 187-253 V
• Max. input current: 50A
• Frequency range: 45-55 Hz / 55-65 Hz

Output AC (Grid side)

• Rated output power: 8kW
• Max. apparent output power: 8.8 kVA
• Rated grid voltage: 220 V / 230 V
• Rated grid frequency: 50 Hz / 60 Hz
• Rated grid output current: 36.4 A/ 34.8 A
• Max. output current: 40A

Battery

• Battery type: Li-ion / Lead-acid
• Battery voltage range: 40-60 V
• Max. charge / discharge power: 8kW
• Max. charge / discharge current: 190A
• Communication: CAN/RS485

Physical

• Dimensions (W*H*D): 406x560x215 mm
• Weight: 25.7 kg
• Ingress protection: IP66
• Cooling concept: Natural convection
