Greenrich AF16000 16kWh LiFePO4 Floor Standing Wall Mount Lithium Battery

Greenrich AF16000 16kWh LiFePO4 Floor Standing Wall Mount Lithium Battery

R 29,923.00
R 31,500.00 R 29,923.00
Sale Sold out
Tax included. Shipping calculated at checkout.

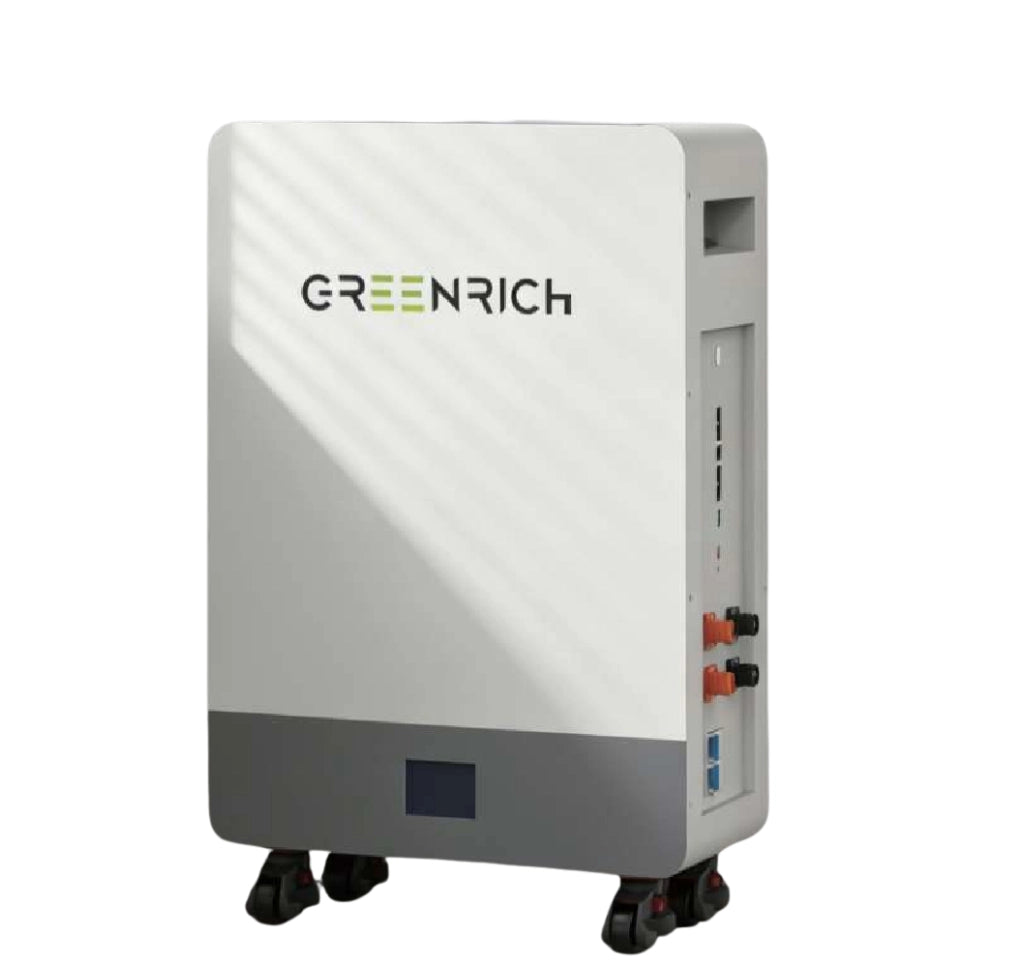

Greenrich AF16000 16kWh LiFePO4 Floor Standing Wall Mount Lithium Battery

The Greenrich AF16000 is a high-capacity, floor-standing lithium iron phosphate (LiFePO4) energy storage system designed for reliable power backup. Featuring a 16kWh nominal rating, this premium battery solution offers exceptional cycle life and advanced communication capabilities, making it ideal for scalable residential or commercial energy setups.

Product Features:

  • Premium LiFePO4 Chemistry: Utilizes advanced LiFePO4 technology for enhanced safety, thermal stability, and longevity.
  • Ultra-Long Cycle Life: Delivers up to 8,000 cycles at 0.5C (80% Depth of Discharge, 70% End of Life).
  • High Scalability: Supports the parallel connection of up to 15 units to easily expand your storage capacity.
  • Smart Interface & Control: Equipped with a built-in 3.5-inch display screen, quick-connect terminals, and an air switch for user-friendly operation.
  • Flexible Communication: Features integrated CAN and RS485 communication protocols for seamless inverter integration.

PRODUCT SPECIFICATIONS

- Model: AF16000
- Battery Chemistry: LiFePO4@GF
- Battery Configuration: 16S1P
- Nominal Voltage: 51.2V
- Operating Voltage Range: 40 to 58.4V
- Total Capacity: 314Ah (Optional)
- Nominal Rating: 16kWh
- Rated Charge / Discharge Current: 100A / 100A
- Max. Charge / Discharge Current: 200A / 200A
- Dimensions (W x D x H): 500 x 800 x 230 mm
- Net Weight: 124 kg
- IP Rating: IP20
- Operating Temperature: Charging: 0 to 55°C / Discharging: -20 to 55°C
- Max. Parallel Connections: Up to 15 units
- Standard Configuration Interface: Quick-connect terminals, indicator lights, 3.5-inch display screen, air switch (Optional rental function & remote shut-off)

IMPORTANT NOTICE

This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards.

Crystal Communications and its Supplier will not be held liable for any product malfunctions as a result of incorrectly installed systems.

Technical specifications and general features are provided on our website, however, as individual needs and requirements may differ, it is recommended that our sales team is contacted for any specific questions before a purchase is made to ensure that the item being purchased will satisfy your requirements.

The images shown are for illustration purposes only and may not be an exact representation of the product.
