Hina ESS: Battery Lithium Ion Hi-5 Version 3 5.12KWH 51.2V 100Ah

Hina ESS: Battery Lithium Ion Hi-5 Version 3 5.12KWH 51.2V 100Ah

R 13,528.00
R 13,528.00
Sale Sold out
Tax included. Shipping calculated at checkout.

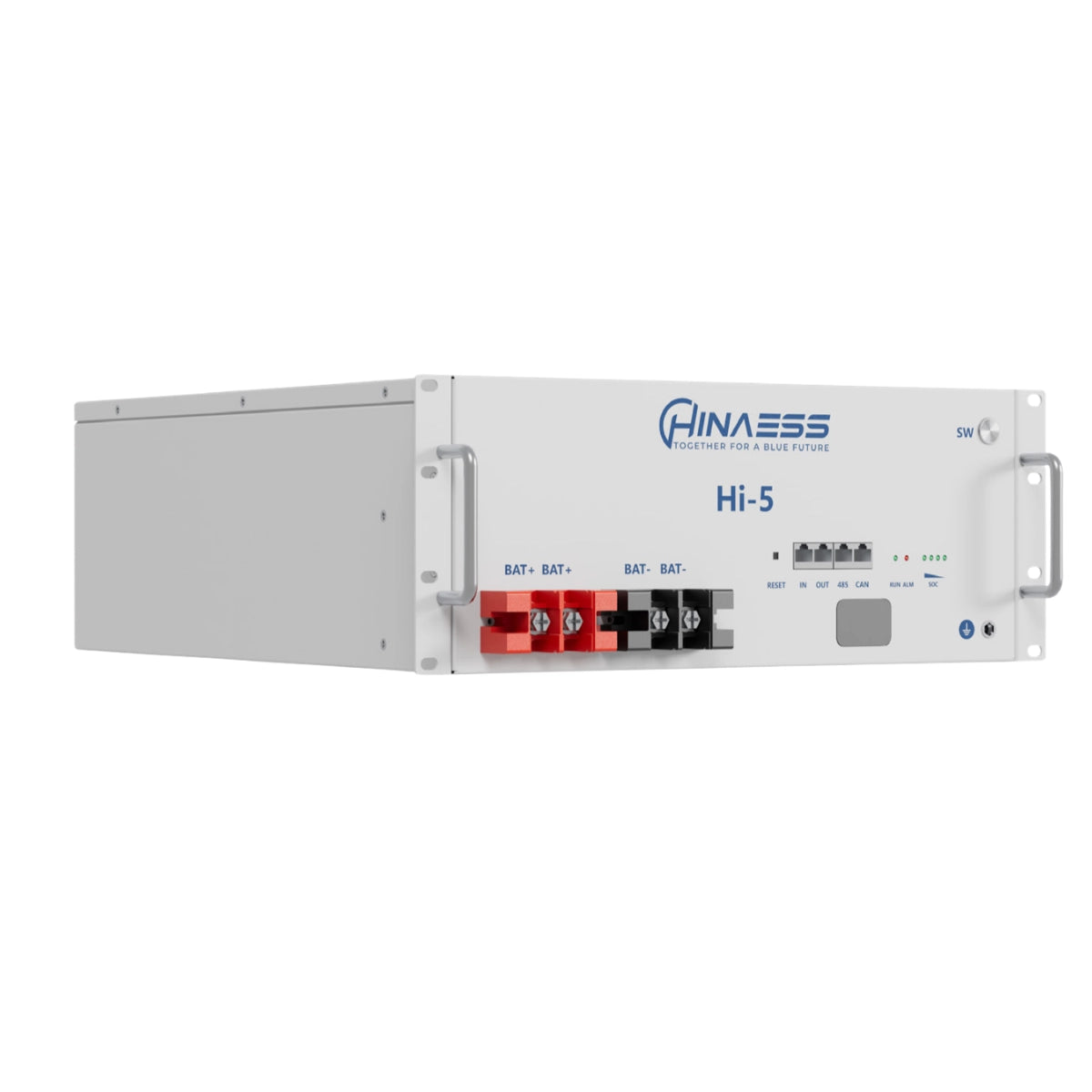

Hina ESS: Battery Lithium Ion Hi-5 Version 3 5.12KWH 51.2V 100Ah (Wall Mount)

Elevate your energy storage capabilities with the Hina ESS Hi-5 Version 3, a high-performance, wall-mounted lithium-ion battery designed for reliability, safety, and seamless integration. Boasting a 5.12kWh capacity and utilizing Ultra-Safe LFP (Lithium Iron Phosphate) technology, this unit is built to provide consistent power for residential and light commercial solar setups.

Product Features:

  • 1C continuous Charge / Discharge
  • Integrated Fire Suppression
  • Integrated Wi-Fi & Bluetooth
  • Short Circuit Protection
  • Wall Mount Brackets Included
  • Flexible Remote Upgrade & Monitoring
  • Wide range Inverter compatibility
  • 10 Year / 6000 Cycles Warranty
  • DOD 90%
  • Ultra Safe LFP
  • Parallel up to 50 Modules
  • Multi protection to prevent Over Discharge
  • Smart BMW Management
  • IP20
  • V3 can parallel with V2 – but NOT with V1

PRODUCT SPECIFICATIONS

- Cell Type: LFP
- Rated Power: 5.12kWh
- Rated Capacity:100Ah
- Rated Voltage: 51.2V
- Charge Voltage: 57.2V
- Max Charge/Discharge Current: 100A
- Discharge Peak Current: 105A / 15s, 120A / 0.5s
- Parallel: Up to 50 units parallel w/o extra device needed, 256 units parallel with hub, slave battery drops offline or come back alive does not affect system running
- IP Level: IP20
- Dimension: 438*165*546mm
- Weight: 49.4Kg
- Compatible Inverter: Victron, Luxpower, Deye, Voltronic, SMA, Ingeteam Goodwe, Growatt, Solis, Sofar, Solark, SRNE, Must
- Warranty *: 10 year, 6000 cycles
- Humidity: 5%~85% RH (No condensation)
- Work Temperature: -20 ℃ ~ +55 ℃
- Dod: 90%
- Remote Maintenance: Flexible remote monitor and maintenance,Original firmware backup to prevent upgrade failure
- Protection: Overcharge/discharge/current/voltage/temperature protection
Short circuit protection, Reverse connection protection
Charge balance, Low SOC protection

IMPORTANT NOTICE

Please ensure that the battery bank's power and storage capacity is sufficient for the inverter and
installation requirements.

This product must be installed by a qualified electrician/technician. All installations must adhere to
local wiring regulations and standards. Crystal Communications and its Supplier will not be held
liable for any product malfunctions as a result of incorrectly installed systems.

Technical specifications and general features are provided on our website, however, as individual
needs and requirements may differ, it is recommended that our sales team is contacted for any
specific questions before a purchase is made to ensure that the item being purchased will satisfy
your requirements.

The images shown are for illustration purposes only and may not be an exact
representation of the product.
