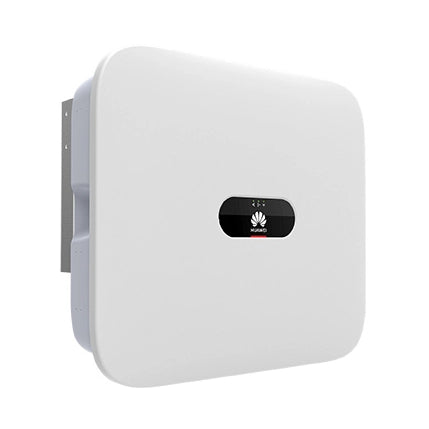

Huawei 20KW 3PH FusionSolar Commercial Inverter

Huawei 20KW 3PH FusionSolar Commercial Inverter

The 20KW 3PH FUSIONSOLAR COMMERCIAL INVERTER is a high-performance three-phase inverter designed for commercial solar energy systems. Engineered with advanced AI-powered safety features and superior energy efficiency, it maximizes solar yields while ensuring reliable and safe operation. With flexible communication options, including WLAN and 4G support, this inverter offers seamless monitoring and control via the FusionSolar app.

Product features

• Active Safety – AI-powered arcing protection ensures enhanced safety.
• Higher Yields – Optimizer support delivers up to 30% more energy.
• Flexible Communication – WLAN, Fast Ethernet, and 4G communication supported.

Specifications

Efficiency:

• Max Efficiency: 98.61%
• European Weighted Efficiency: 98.30%

Input (DC):

• Recommended Max. PV Power: 30,000 W
• Max. Input Voltage: 1,080 V
• Operating Voltage Range: 160 V - 950 V
• Start-up Voltage: 200 V
• Rated Input Voltage: 600 V
• Max. Input Current per MPPT: 22 A
• Max. Short-circuit Current: 30 A
• Number of MPPT Trackers: 2

Output (AC):

• Rated Output Power: 20,000 W
• Max. Apparent Power: 22,000 VA
• Rated Output Voltage: 220 V / 380 V, 3W + N + PE
• Rated AC Grid Frequency: 50 Hz / 60 Hz
• Max. Output Current: 33.5 A
• Adjustable Power Factor: 0.8 leading to 0.8 lagging
• Total Harmonic Distortion: ≤ 3%

Features & Protections:

• Input-side Disconnection Device
• Anti-islanding Protection
• AC Over-current Protection
• AC Short-circuit Protection
• AC Over-voltage Protection
• DC Reverse-polarity Protection
• DC Surge Protection (Type II)
• Residual Current Monitoring Unit
• Arc Fault Protection
• Ripple Rejection Control
• Integrated PID Recovery

General Data:

• Operating Temperature: -25°C to +60°C
• Max. Operating Altitude: 4,000 m (Derating Above 2,000 m)
• Cooling: Natural Convection
• Display: LED Indicators, FusionSolar App
• Communication: RS485, WLAN (Optional), Smart Dongle (WLAN/4G)
• Weight: 25 kg
• Dimensions: 525 × 470 × 262 mm
• Degree of Protection: IP65
• Nighttime Power Consumption: ≤ 5 W
