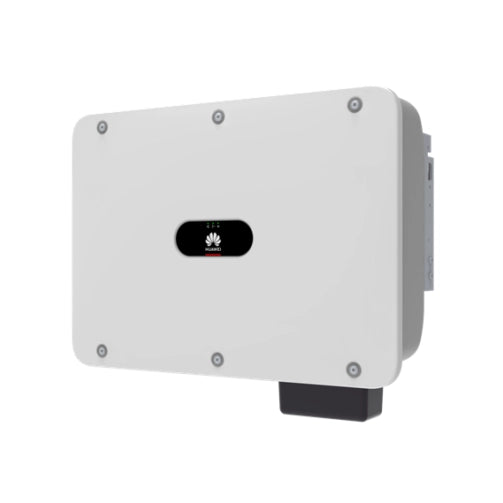

Huawei 30KW 3PH FusionSolar Commercial Inverter

Huawei 30KW 3PH FusionSolar Commercial Inverter

The Huawei 30KW FusionSolar 3PH Commercial Inverter is a high-performance 30kW 3-phase commercial inverter, engineered for maximum efficiency, safety, and reliability in large-scale solar installations. With an impressive 98.7% maximum efficiency, 8 MPPTs for smart monitoring, and advanced safety features, it delivers superior energy conversion and long-term durability.

Product features

• Smart Monitoring – 8 MPPTs for precise performance tracking
• High Efficiency – 98.7% maximum efficiency for optimal energy output
• Enhanced Safety – Fuse-free design with built-in surge protection
• Reliable & Durable – IP66 protection and Type II surge arresters for DC & AC


Specifications

Efficiency

• Maximum Efficiency: 98.7%
• European Efficiency: 98.4%

Input

• Maximum Input Voltage: 1,100V
• Maximum Current per MPPT: 25A
• Maximum Short Circuit Current per MPPT: 40A
• Start Voltage: 200V
• MPPT Operating Voltage Range: 200V - 1,000V
• Rated Input Voltage: 600V
• Number of Inputs: 8
• Number of MPPT Trackers: 4

Output

• Rated AC Active Power: 30,000W
• Maximum AC Apparent Power: 33,000VA
• Rated Output Voltage: 230V / 400V / 480V, 3W/N/PE
• Rated Grid Frequency: 50Hz / 60Hz
• Rated Output Current: 43.3A
• Maximum Output Current: 47.9A
• Adjustable Power Factor Range: 0.8 leading – 0.8 lagging
• Maximum Total Harmonic Distortion: <3%

Protection

• Input-side Disconnection Device: Yes
• Anti-Islanding Protection: Yes
• AC Overcurrent Protection: Yes
• DC Reverse-polarity Protection: Yes
• PV Array String Fault Monitoring: Yes
• DC Surge Arrester: Yes
• AC Surge Arrester: Yes
• DC Insulation Resistance Detection: Yes
• Residual Current Monitoring Unit: Yes
• Arc Fault Protection: Yes
• Ripple Rejection: Yes
• Integrated PID Recovery: Yes

Communication

• Display: LED Indicators, Integrated WLAN + FusionSolar APP
• RS485: Yes
• Smart Dongle: WLAN/Ethernet via Smart Dongle-WLAN-FE (Optional)
• Smart Dongle-4G: 4G / 3G / 2G via Smart Dongle-4G (Optional)
• Monitoring Bus (MBUS): Yes (Isolation Transformer Required)

General Data

• Dimensions (W x H x D): 640 × 530 × 270 mm (25.2 × 20.9 × 10.6 inches)
• Weight (with mounting plate): 43 kg (94.8 lb.)
• Operating Temperature Range: -25°C to +60°C (-13°F to +140°F)
• Cooling Method: Natural Convection
• Maximum Operating Altitude: 4,000 m (13,123 ft.) (Derating above 2,000 m)
• Relative Humidity: 0 – 100%
• DC Connector: Staubli MC4
• AC Connector: Waterproof Connector or OT/DT Terminal
• Protection Degree: IP66
• Topology: Transformerless
• Nighttime Power Consumption: <5W

Optimizer Compatibility

• DC MBUS Compatible Optimizer: SUN2000-450W-P
