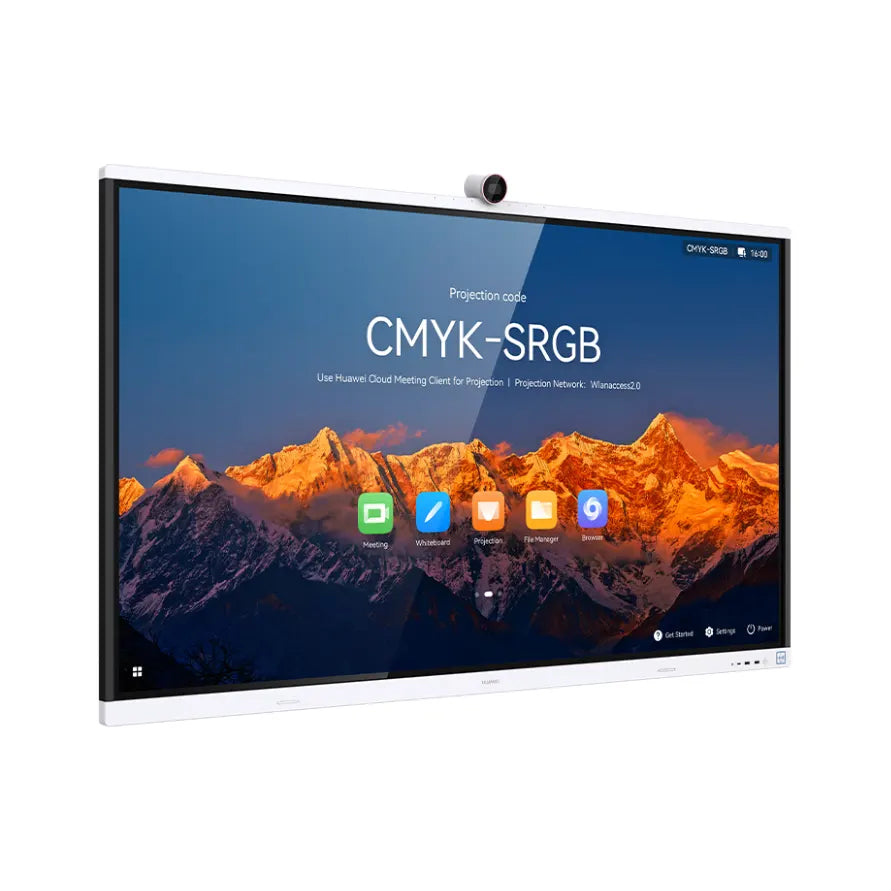

HUAWEI IdeaHub S2 IHS2-75SA 75-Inch Intelligent Collaboration Display

HUAWEI IdeaHub S2 IHS2-75SA 75-Inch Intelligent Collaboration Display

The HUAWEI IdeaHub S2 delivers enterprise-grade collaboration through its advanced hardware foundation, supporting Bring Your Own Meeting (BYOM) capabilities and seamless integration with leading cloud platforms. This 75-inch display combines crystal-clear video conferencing with responsive digital whiteboarding, powered by Wi-Fi 6 connectivity for instant wireless sharing. Engineered for versatility across boardrooms, private offices, and collaborative workspaces, it transforms how teams connect and ideate with professional-grade performance and minimal input lag.

Product Features:

• BYOM - Bring Your Own Meeting (BYOM) with seamless transfer from personal devices to HUAWEI IdeaHub S2.
• Wi-Fi 6 for Direct Projection - One-step projection using Wi-Fi Direct without the need for devices to share the same local area network (LAN).
• Collaboration Unbounded - Multi-Window and App Multiplier deliver an enriched office ecosystem.
• Professional-Level 4K Video Camera - 2 μm² ultra-large photosite size doubles the signal-to-noise ratio (SNR). Huawei-developed AI algorithm ensures true-to-life, natural clarity.
• AI-powered Audio and Video - Voice tracking, Auto-Framing, and acoustic baffle deliver immersive experience. 12-meter sound pickup, DNN-based de-reverberation, and AEC algorithm ensure clear voice from far away.
• Intelligent Whiteboard - Annotate on full screen in full color with an all-new toolbar. Writing is effortlessly smooth with intelligent recognition and ultra-low latency.

Specifications:

• General:
  • Product Name: HUAWEI IdeaHub S2
  • Product model: 75": IHS2-75SA
  • Product dimensions (H x W x D): 75": 1071.9 mm x 1705.7 mm x 91.8 mm
  • Net weight: 75": 47.0 kg
• Component:
  • Stylus pens: 2
  • Cable: Power cable x 1

  • Wall-mounted bracket: Optional (65", 75", and 86")

  • Rolling stand: Optional (65", 75", and 86")

  • IdeaShare Key: Optional (Type-A port)

  • OPS: Optional
• Screen:
  • Resolution: 4K (3840 x 2160 pixels)

  • Backlight type: D-LED

  • Screen Lamination: Zero-gap bonding
• Writing:
  • Latency: 16 ms

  • Touch sensing distance: ≤ 1.5 mm

  • Intelligent writing recognition: Supports recognition of Chinese, English, and 11 types of graphics
• Camera:
  • Resolution: 4K

  • Sharpness: 1800 lines

  • Lens cap for privacy protection: √

  • Horizontal FoV: 80°

  • TV distortion: ＜2%
• Speaker:
  • Frequency domain: 100 Hz to 20 kHz

  • Number of speaker units: 4

  • Total power: 40 W
• Microphone:
  • Sound pickup angle: 180°

  • Sound pickup distance: 12 m

  • Frequency domain: 80 Hz to 20 kHz

  • Optimized sound pickup: Sound location, echo cancellation, and automatic gain control
• Meeting:
  • Native meeting apps: Huawei Cloud Meeting and WeLink

  • Dual streams (audio/video + data sharing): 1080p30fps+1080p30fps/4K8fps

  • BYOM: √
• AI Function:

  • Auto-Framing: √

  • Intelligent tracking: √

  • Acoustic baffle: √

  • DNN-based dereverberation: √
• System:
  • RAM: 8 GB

  • Flash: 64 GB

  • OS: HarmonyOS, Windows (OPS required)

  • Security: Embedded encryption chip that supports H.235, STARTTLS, TLS, SRTP encryption, Chinese cryptographic algorithms, secure boot, and TEE

  • Language: Simplified Chinese, English, French, Japanese, Arabic, Spanish, Russian, Portuguese, and Italian
• Wireless connection:
  • Wi-Fi module: Wi-Fi 6

  • Wi-Fi frequency: 2.4 GHz + 5 GHz

  • NFC: √
• Port:
  • Video input: HDMI cable x 1

  • Video output: HDMI cable x 1

  • Audio input:
    • 3.5 mm (line-in) x 1

    • HD-AI x 1

  • Audio output: 3.5 mm (line-out) x 1

  • Other ports:

    • USB Type-A 3.0 x 3

    • USB Type-C x 1

    • RJ45 (10/100/1000 Mbit/s LAN) x 1
