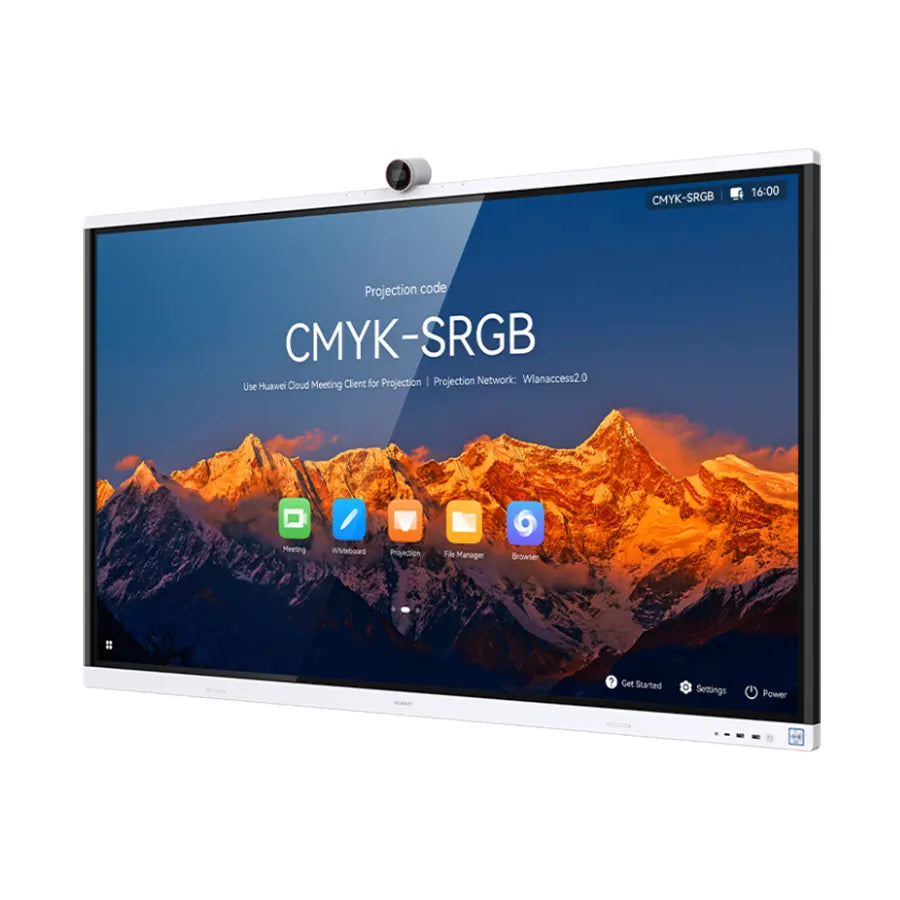

HUAWEI IdeaHub S2 IHS2-86SA 86-Inch Intelligent Collaboration Display
HUAWEI IdeaHub S2 IHS2-86SA 86-Inch Intelligent Collaboration Display
Couldn't load pickup availability
HUAWEI IdeaHub S2 IHS2-86SA 86-Inch Intelligent Collaboration Display
The HUAWEI IdeaHub S2 delivers enterprise-grade collaboration through its advanced hardware foundation, supporting Bring Your Own Meeting (BYOM) capabilities and seamless integration with leading cloud platforms. This 86-inch display combines crystal-clear video conferencing with responsive digital whiteboarding, powered by Wi-Fi 6 connectivity for instant wireless sharing. Engineered for versatility across boardrooms, private offices, and collaborative workspaces, it transforms how teams connect and ideate with professional-grade performance and minimal input lag.
Product Features:
- BYOM - Bring Your Own Meeting (BYOM) with seamless transfer from personal devices to HUAWEI IdeaHub S2.
- Wi-Fi 6 for Direct Projection - One-step projection using Wi-Fi Direct without the need for devices to share the same local area network (LAN).
- Collaboration Unbounded - Multi-Window and App Multiplier deliver an enriched office ecosystem.
- Professional-Level 4K Video Camera - 2 μm² ultra-large photosite size doubles the signal-to-noise ratio (SNR). Huawei-developed AI algorithm ensures true-to-life, natural clarity.
- AI-powered Audio and Video - Voice tracking, Auto-Framing, and acoustic baffle deliver immersive experience. 12-meter sound pickup, DNN-based de-reverberation, and AEC algorithm ensure clear voice from far away.
- Intelligent Whiteboard - Annotate on full screen in full color with an all-new toolbar. Writing is effortlessly smooth with intelligent recognition and ultra-low latency.
PRODUCT SPECIFICATIONS
PRODUCT SPECIFICATIONS
General:
- Product Name: HUAWEI IdeaHub S2
- Product model: 86": IHS2-86SA
- Product dimensions (H x W x D): 86": 1212.0 mm x 1953.0 mm x 91.8 mm
- Net weight: 86": 62.0 kg
Component:
- Stylus pens: 2
- Cable: Power cable x 1
- Wall-mounted bracket: Optional (65", 75", and 86")
- Rolling stand: Optional (65", 75", and 86")
- IdeaShare Key: Optional (Type-A port)
- OPS: Optional
Screen:
- Resolution: 4K (3840 x 2160 pixels)
- Backlight type: D-LED
- Screen Lamination: Zero-gap bonding
Writing:
- Latency: 16 ms
- Touch sensing distance: ≤ 1.5 mm
- Intelligent writing recognition: Supports recognition of Chinese, English, and 11 types of graphics
Camera:
- Resolution: 4K
- Sharpness: 1800 lines
- Lens cap for privacy protection: √
- Horizontal FoV: 80°
- TV distortion: ＜2%
Speaker:
- Frequency domain: 100 Hz to 20 kHz
- Number of speaker units: 4
- Total power: 40 W
Microphone:
- Sound pickup angle:180°
- Sound pickup distance: 12 m
- Frequency domain: 80 Hz to 20 kHz
- Optimized sound pickup: Sound location, echo cancellation, and automatic gain control
Meeting:
- Native meeting apps: Huawei Cloud Meeting and WeLink
- Dual streams (audio/video + data sharing): 1080p30fps+1080p30fps/4K8fps
- BYOM: √
AI Function:
- Auto-Framing:√
- Intelligent tracking: √
- Acoustic baffle: √
- DNN-based dereverberation: √
System:
- RAM: 8 GB
- Flash: 64 GB
- OS: HarmonyOS, Windows (OPS required)
- Security: Embedded encryption chip that supports H.235, STARTTLS, TLS, SRTP encryption, Chinese cryptographic algorithms, secure boot, and TEE
- Language: Simplified Chinese, English, French, Japanese, Arabic, Spanish, Russian, Portuguese, and Italian
Wireless connection:
- Wi-Fi module: Wi-Fi 6
- Wi-Fi frequency: 2.4 GHz + 5 GHz
- NFC: √
Port:
- Video input: HDMI cable x 1
- Video output: HDMI cable x 1
Audio input:
- 3.5 mm (line-in) x 1
- HD-AI x 1
Audio output: 3.5 mm (line-out) x 1
Other ports:
- USB Type-A 3.0 x 3
- USB Type-C x 1
- RJ45 (10/100/1000 Mbit/s LAN) x 1
