Huawei iSitePower-M 5kw Power Module

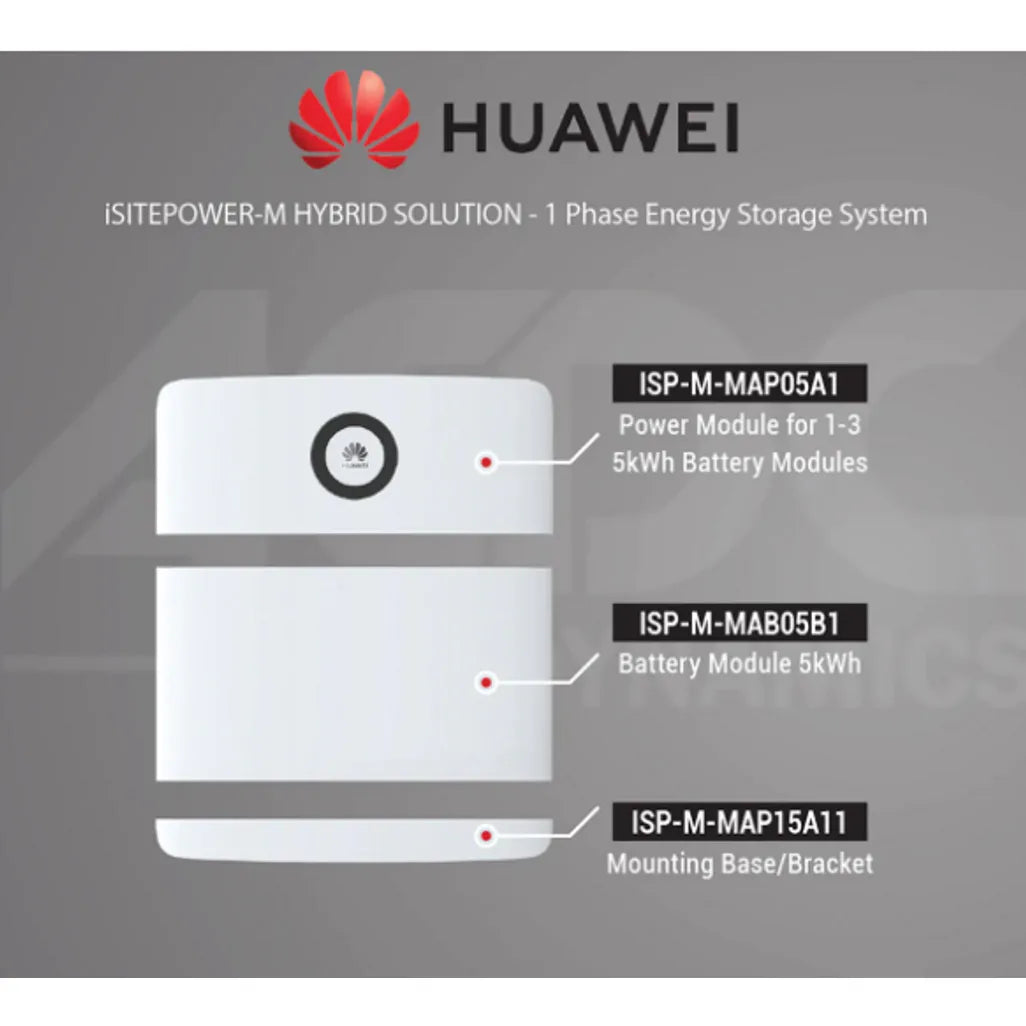

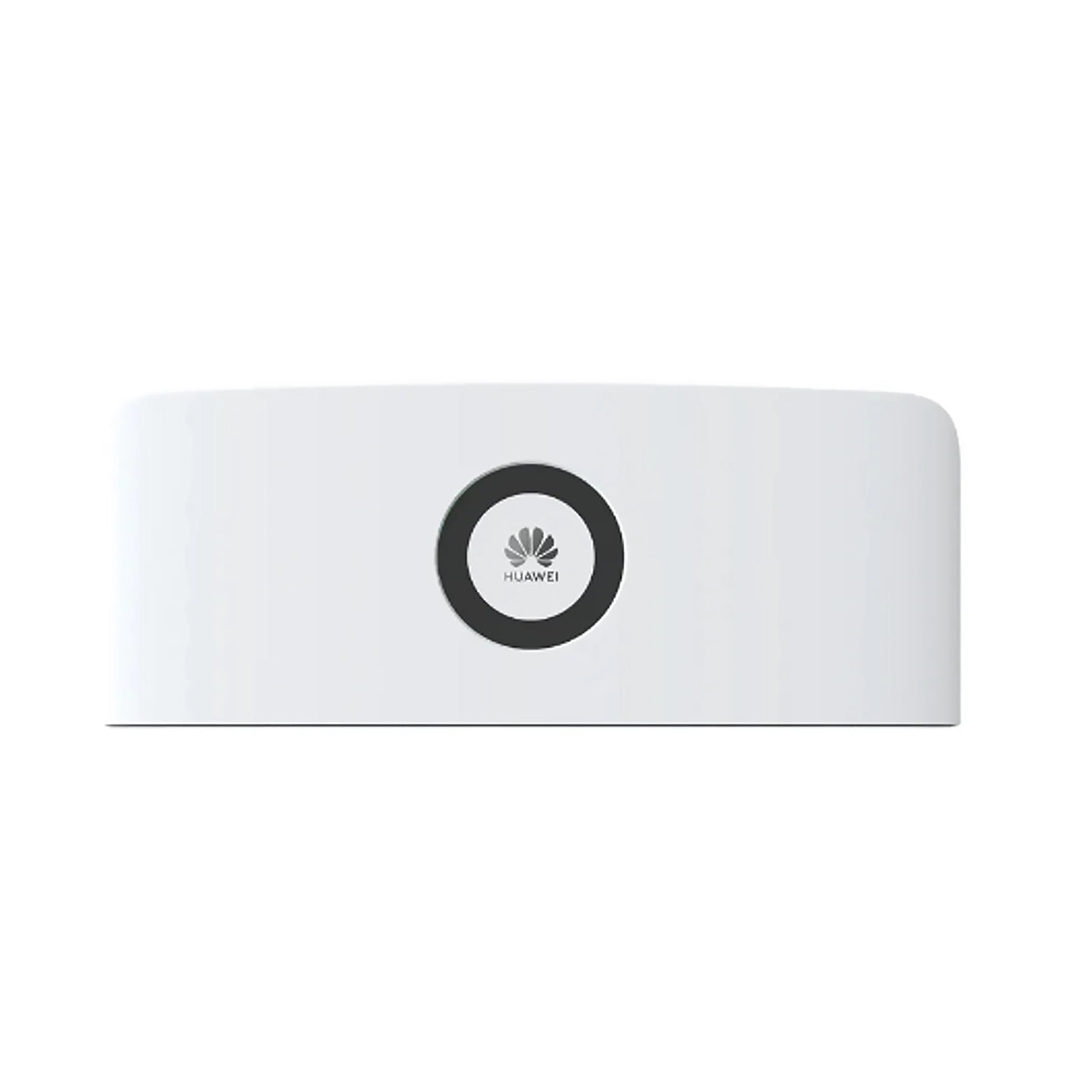

- Power module: iSitePower-M-MAP05A1
- Output/Input power per module: 2.5 kW
- Battery module: iSitePower-M-MAB05B1
- Battery module capacity: 5 kWh
- Number of power modules: 1

Number of battery modules:
1 Battery Module:
- Battery usable capacity: 5 kWh
- Max. output power: 2.5kW

2 Battery Modules:
- Battery usable capacity: 10 kWh
- Max. output power: 5 kW

3 Battery Modules:
- Battery usable capacity: 15 kWh
- Max. output power: 5 kW

4 Battery Modules:
- Battery usable capacity: 20 kWh
- Max. output power: 5 kW

5 Battery Modules:
- Battery usable capacity: 25 kWh
- Max. output power: 5 kW

6 Battery Modules:
- Battery usable capacity: 30 kWh
- Max. output power: 5 kW

Communication:
- Display: SOC status indicator
- Communication: CAN (for parallel communications between power modules, between battery modules and power modules, and between battery modules); WLAN/FE/4G (for connecting to the SmartPVMS)

General Specification:
- Power module dimension (W x H x D): 700 mm x 246 mm x 152 mm
- Power module weight: 17 kg
- Battery module dimension (W x H x D): 700 mm x 390 mm x 158 mm
- Battery module weight: 50 kg

Base dimension (W x H x D):
- 700 mm x 65 mm x 147 mm (floor installation)
- 643 mm x 110 mm x 176 mm (wall-mounted installation)

Base weight:
- 1.5 kg (floor installation)
- 5.5 kg (wall-mounted installation)

- Installation mode: Wall-mounted/Floor-mounted
- IP rating: IP 66
- Cell technology: Lithium-iron phosphate (LiFePO4)

AC Input:
- Input voltage: 200/208/220/230/240 V AC
- Input current: Max. 30 A
- Frequency: 50/60 Hz
- Maximum bypass input power: 6 kW

Lightning protection:
- Differential mode (between live and neutral): 3 kA; 8/20 μs
- Common mode (between live or neutral and PE, between live/neutral pair and PE): 5 KA; 8/20 μs

PV input:
- MPPT voltage range: 90 ~ 420 V DC
- Maximum input capacity of the MPPT: 5.5 kWp
- PV string quantity: 2 strings
- Number of MPPT channels: 1 channel
- Maximum input current for one string: 12.5 A
- Maximum short circuit current per string: 18 A
- Lightning protection: Common mode (between PV+/PV- pair and PE): ±10 KA; 8/20 μs

AC output:
- Output: Single-phase 200/208/220/230/240 V AC. The default value is 220V AC
- Output frequency: 50/60 Hz. The default value is 50 Hz.
- Maximum output current: 30 A
- Output power: 6 kVA/5 kW
- Power factor: 0.8

Overload capacity:
- 102% ≤ Load ≤ 125%: 30s
- 125% < Load ≤ 150%: 10s
- >150%/short circuit: 0.3s

AC Parallel Box:
- Dimensions (W * H * D): 350 mm x 450 mm x 150 mm
- Weight: Approx. 12 kg
- Input voltage: 200/208/220/230/240 V AC. The default value is 220 V AC.
- Input current: Max. 90 A
- Output voltage: 200/208/220/230/240 V AC. The default value is 220 V AC.
- Output current: Max. 90 A
- Cable outlet mode: Bottom in and bottom out
- Installation mode: Wall-mounted or pole-mounted installation
- IP rating: IP55

Standards Compliance:
- Certifications: IEC62920: 2017, CISPR11: 2015+A1: 2016/EN55011: 2016+A1: 2017, EN62040-2, ETSI EN 301 489-1, ETSI EN 301 489-17, IEC61000-3, IEC 62619, IEC 62109-1, IEC 62109-2, RoHS, EN 50385, RCM, UKCA,ICE 60730, UN38.3
