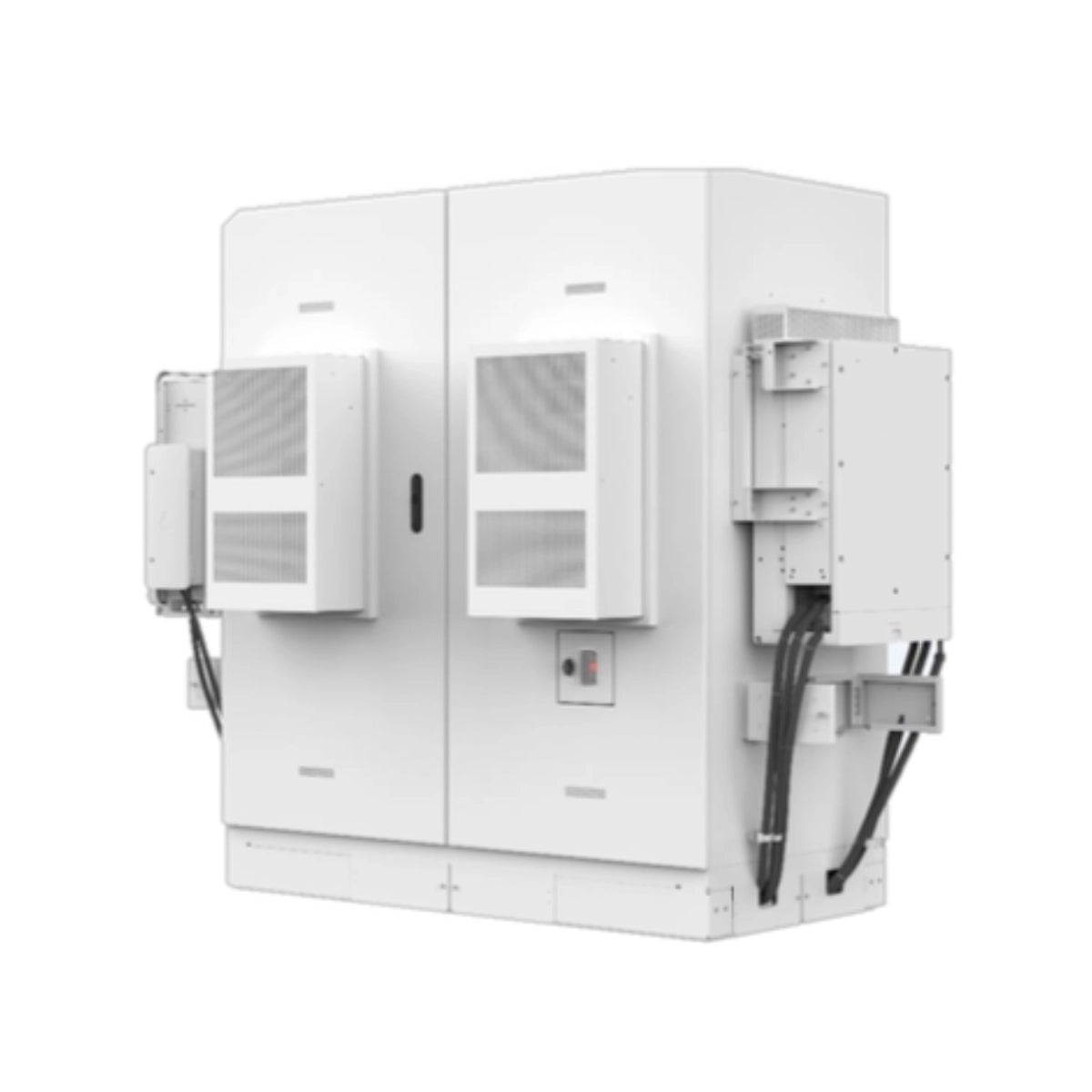

Huawei LUNA2000-200kWH-2H1 Smart String ESS Inverter/Battery

Huawei LUNA2000-200kWH-2H1 Smart String ESS Inverter/Battery

The Huawei LUNA2000-200kWH-2H1 Smart String ESS is a high-capacity, modular energy storage solution designed for large-scale commercial and industrial applications. Combining advanced Lithium Iron Phosphate (LFP) battery technology with Huawei’s intelligent power conversion and management system, it delivers reliable, safe, and efficient energy storage. With up to 193.5 kWh capacity per unit and scalable to multi-megawatt-hour systems, this solution is ideal for peak shaving, renewable integration, backup power, and grid stabilization.

Product features

• High Energy Capacity – Up to 193.5 kWh per system, scalable for multi-MWh applications.
• High Power Output – Supports ≤100 kW charging and discharging power.
• Modular & Scalable – Expandable architecture with up to 20 ESS units in parallel (up to 3,870 kWh).
• Smart Cooling & Thermal Management – Industrial-grade air conditioning ensures stable performance.
• Safe & Reliable – Integrated fire suppression system, LFP cell chemistry, and multiple protection functions.
• Wide Operating Conditions – Works in extreme environments (-30°C to +55°C, up to 4,000m altitude).
• Intelligent Communication – Ethernet / SFP interface with Modbus TCP protocol for seamless integration.
• High Efficiency – System efficiency ≥98.5% with advanced power electronics.
• Rugged & Durable – Outdoor-rated (IP55 protection, Class A EMC compliance).
• Certified Quality – Complies with international standards (UL9540A, UN38.3, IEC, RoHS, ISO).


Specifications

• Model: LUNA2000-200KWH-2H1
• Battery Configuration: 12S1P
• Maximum Capacity: 193.5 kWh
• Max. Charging Power: ≤100 kW
• Max. Discharging Power: ≤100 kW
• Dimensions (W x H x D):
  • Without PCS/Controller: 1810 × 2135 × 1200 mm
  • With PCS/Controller: 2570 × 2135 × 1200 mm
• Weight (with battery pack): ≤2950 kg
• Weight (without battery pack): ≤1070 kg
• Operating Temperature Range: -30°C ~ +55°C
• Storage Temperature: -40°C ~ +60°C
• Operating Humidity: 0 ~ 100% (non-condensing)
• Max. Altitude: 4,000 m
• Installation: Outdoor
• Fire Suppression: Integrated system
• Auxiliary Power Supply: 220 Vac, ≤4.2 kW
• Communication: Ethernet / SFP
• Protocol: Modbus TCP
• Protection Rating: IP55
• EMC Protection: Class A
• DC Lightning Protection: Type II
• Battery Pack:
• Cell Type: Lithium Iron Phosphate (LFP)
• Nominal Capacity (per pack): 16.13 kWh
• Charge/Discharge Rate: ≤0.5C (standard), ≤1C supported
• Weight (per pack): ≤140 kg
• Dimensions (W x H x D): 442 × 308 × 660 mm

Smart Rack Controller:

• Efficiency: ≥98.5%
• Rated Voltage: 691.2 V
• Operating Voltage Range: 40 V – 1050 V
• Bus Side Rated Voltage: 665 V
• Max. DC Voltage: 1100 V
• Rated Current: 152.6 A
• Dimensions (W x H x D): 600 × 820 × 270 mm
• Weight: ≤90 kg
• Cooling: Smart Air Cooling
• Protection: IP66
