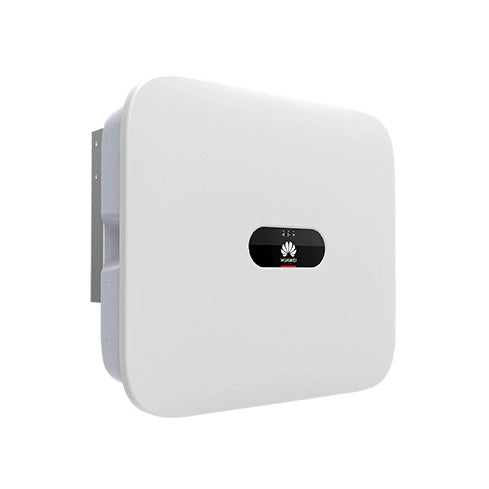

Huawei 15KW 3PH FusionSolar Commercial Inverter

Huawei 15KW 3PH FusionSolar Commercial Inverter

This highly efficient 15kW 3-phase inverter is designed for residential and commercial applications. With a maximum efficiency of up to 98.65%, it ensures optimal power conversion while incorporating advanced safety features such as anti-islanding protection, AC/DC surge protection, and short-circuit protection. The inverter supports multiple MPPT trackers, allowing for greater flexibility and higher energy yields in diverse solar panel configurations.

Product features

• Active Safety: AI-powered arcing protection for enhanced system security
• Higher Yields: Up to 30% more energy when paired with an optimizer
• Flexible Communication: Supports WLAN, Fast Ethernet, and 4G connectivity
• Optimized Efficiency: Smart PV controller with advanced performance curves
• Reliable Performance: Designed for long-term durability and stable power output


Specifications

Efficiency

• Maximum efficiency: 98.65%
• European weighted efficiency: 98.30%

Input

• Recommended max. PV power: Up to 30,000 Wp
• Max. input voltage: 1,080 V
• Operating voltage range: 160 V - 950 V
• Start-up voltage: 200 V
• Rated input voltage: 600 V
• Max. input current per MPPT: 22 A
• Max. short-circuit current: 30 A
• Number of MPPT trackers: 2
• Max. input number per MPPT tracker: 2

Output

• Grid connection: Three-phase
• Rated output power: 12,000 W - 20,000 W (varies by model)
• Max. apparent power: 13,200 VA - 22,000 VA
• Rated output voltage: 220 V / 380 V / 400 V
• Rated output frequency: 50 Hz / 60 Hz
• Max. output current: 20 A - 33.5 A (varies by model)
• Adjustable power factor: 0.8 leading - 0.8 lagging
• Max. total harmonic distortion: ≤ 3%

Features & Protections

• Safety Protections:
  • Input-side disconnection device
  • Anti-islanding protection
  • AC over-current, short-circuit, and over-voltage protection
  • DC reverse polarity and surge protection
  • Residual current monitoring unit
  • Arc fault protection
  • Ripple receiver control
  • Integrated PID recovery

General Data

• Operating temperature range: -25°C to +60°C
• Relative humidity: 0 - 100% RH
• Max. operating altitude: Up to 4,000 m
• Cooling: Natural convection
• Display: LED indicators, Integrated WLAN + FusionSolar App
• Communication:
  • RS485, WLAN/Ethernet (via Smart Dongle)
  • 4G / 3G / 2G (via Smart Dongle 4G optional)
• Weight: 25 kg
• Dimensions (W × H × D): 525 × 470 × 262 mm
• Degree of protection: IP65
• Nighttime power consumption: < 5.5 W

Optimizer Compatibility

• Compatible with SUN2000-450W-P

Standard Compliance

• CEI/EN 62109-1, EN 62109-2
• Grid codes: G98, G99, EN 50549, CEI 0-21, CEI 0-16, VDE AR-N 4105, AS 4777.2, C10/11, etc.
