Hubble AM2+ 48V 5.5kWh Lithium Battery

Hubble AM2+ 48V 5.5kWh Lithium Battery

R 18,099.00
R 21,761.00 R 18,099.00
Sale Sold out
Tax included. Shipping calculated at checkout.

Hubble AM2+ 48V 5.5kWh Lithium Battery

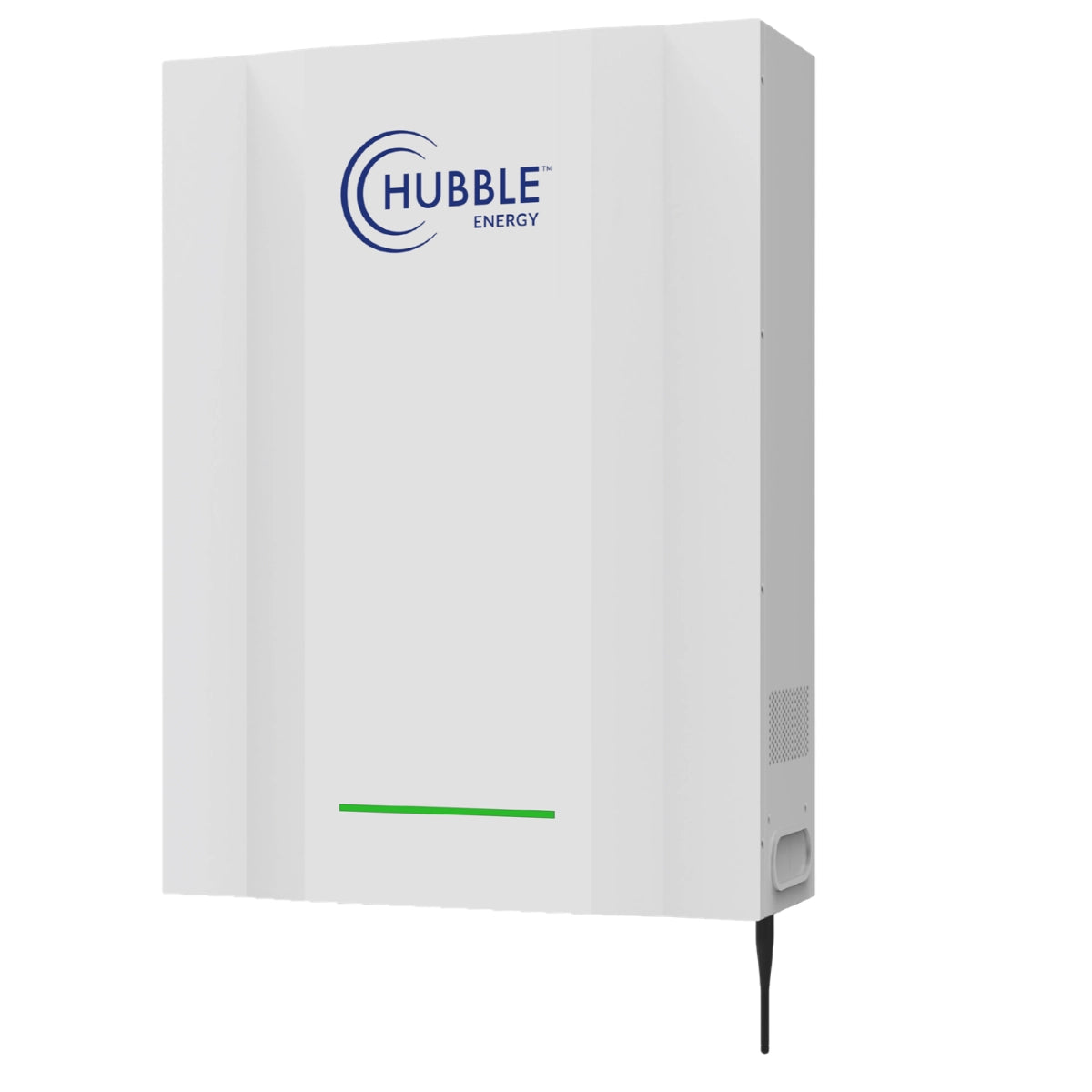

The Hubble AM2+ is a high-performance 48V lithium battery featuring a 5.5kWh design capacity and a 1C high-performance rating. It includes integrated 24/7 remote monitoring via the Hubble Cloudlink and is built with an advanced Battery Management System (BMS) with current limiting functions. Designed for easy wall-mounting or shelf-rack installation, it offers high cycle/service life and compatibility with most major inverter and charger brands.

Product Features:

  • Integrated 24/7 monitoring with Hubble Cloudlink
  • 1C high-performance lithium battery
  • Advanced BMS with current limiting function
  • Easy wall mount or shelf rack installation
  • Heavy-duty side handles for easy handling and wall mounting
  • High cycle and service life
  • Compatible with most inverters and chargers
  • Built-in protection for over-charge, over-discharge, and over-temperature
  • CAN Bus for full integration and communication with leading inverter brands

PRODUCT SPECIFICATIONS

- Model: Hubble AM2+
- Rated Capacity (SHR): 117 Ah
- Nominal Voltage: 48 V
- Design Capacity: 5.5 kWh
- Equalized Charge Voltage: 53.8 V
- Max. Continuous Charging Current: 105 A
- Max. Continuous Discharging Current: 105 A
- C Rating: 1.0 C
- Depth of Discharge: 100%
- Weight: Approx. 42 kg
- Monitoring: Hubble Cloudlink
- Scalability/Parallel: Parallel connection up to 15 packs with full communications
- Dimensions (WxDxH): 375mm x 145mm x 467mm
- Ports: 1x CAN-bus, 2x Battery Link Ports
- Cells: New Li-ion Prismatic Cells
- Design Life: +/-15 Years
- Cycle Life: +/-1500 Cycles at 100% DOD
- Certification: CE, UN38.3, GBT31484-2015, GBT31485-2015, GBT31486-2015
- Outer Package Material: White bake lacquer steel case
- Operating Temperature: Charging: 0 to +55°C | Discharging: -20 to +55°C | Storage: -20 to +55°C
- Protection: Electronic Circuit Breaker, BMS Voltage Protection, Current Limiting

IMPORTANT NOTICE

Please ensure that the battery bank's power and storage capacity is sufficient for the inverter and
installation requirements.

This product must be installed by a qualified electrician/technician. All installations must adhere to
local wiring regulations and standards. Crystal Communications and its Supplier will not be held
liable for any product malfunctions as a result of incorrectly installed systems.
