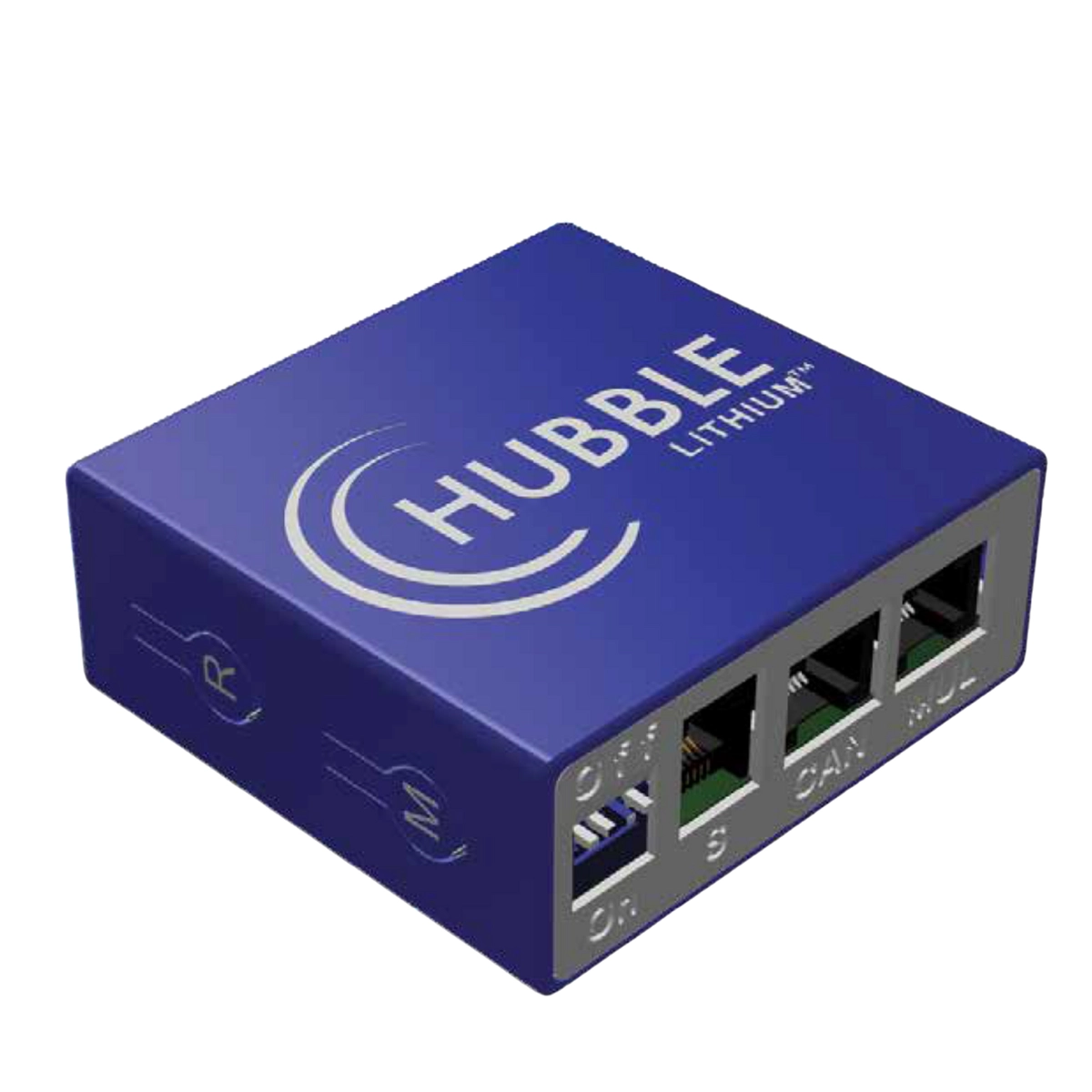

Hubble Cloudlink V2.0 – CAN Bus & Cloud Monitor

Hubble Cloudlink V2.0 – CAN Bus & Cloud Monitor

The Hubble Cloudlink V2.0 is an advanced CAN bus converter and cloud monitoring interface designed to seamlessly integrate Hubble Lithium batteries with compatible inverters. Engineered for precision control and real-time monitoring, the Cloudlink V2.0 empowers users with remote access to inverter performance, battery status, and energy usage insights. Ideal for residential and commercial energy systems, it combines intelligent features, encrypted communication, and effortless installation to deliver a reliable, future-ready energy management solution.

Product Features

• CAN bus converter for Hubble Lithium BMS systems
• Remote monitoring of batteries and selected inverters via cloud
• Remote control functionality for Voltronic Axpert Inverters
• Integrated Artificial Intelligence processor
• Multiple CAN bus protocols for enhanced inverter compatibility
• Embedded support for Hubble Cloudlink, Victron, SMA, and Pylontech
• Reports inverter metrics like load, grid, and PV wattage to the cloud
• Real-time and historical data display with smart widget interface
• Data export functionality for offline analysis
• Annual and monthly power saver statistics
• Encrypted Over-the-Air (OTA) firmware updates
• Easy “Plug & Play” installation via RS232 for select inverters
• Compatible with 1-phase and 3-phase energy meters for cloud monitoring
• Designed and assembled in South Africa


Specifications:

Power & Indicators

• Input Voltage: 20V to 75V DC
• Power Consumption: <2W
• LED Indicators: Power, 3G connection, CAN communication, CPU status
• Buzzer: Used for configuration mode
• Mode Button: Multi-function (configuration, factory reset)

Compatibility

• Battery Models: Hubble AM Series and X Series
• Inverters: Compatible with multiple brands (refer to full compatibility list)

Communications

• CAN Bus: 2 x RJ45, built-in termination
• RS485 Modbus: Configurable
• RS232 Serial: RJ11 with TX/RX pinout
• Wi-Fi: Supports 802.11b/g/n/e/i (up to 150 Mbps), multiple modes
• Wi-Fi Security: WPA/WPA2/Enterprise/WPS
• Bluetooth: V4.2 BR/EDR & BLE, Class 1/2/3 transmitter, -98 dBm receiver sensitivity

Energy Monitoring

• Measures power quality, THD%, phase angle
• Real-time voltage, amperage, and kWh tracking

Physical Dimensions

• Size: 80mm x 75mm x 32mm
