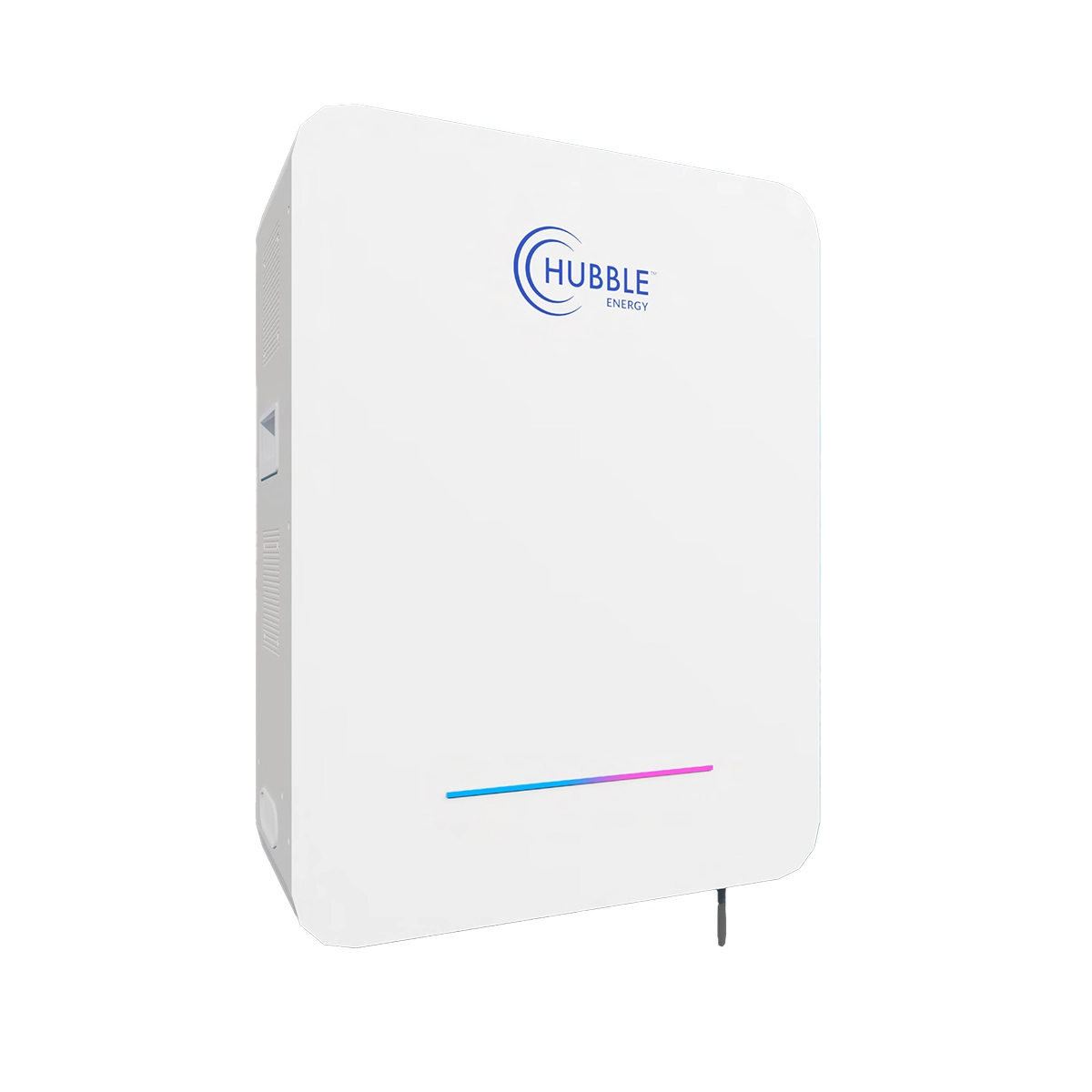

Hubble Lithium AM10+, 10kWh 51.2V Battery

Battery Parameters
- Model: Hubble AM-10+
- Battery Type: LiFePO4 (LFP) with 16 cells per battery
- Nominal Voltage: 51.2 Vdc
- Nominal Energy: 10 kWh
- Design Capacity: 200 Ah
- Operating Voltage Range: 43.2 Vdc – 58.4 Vdc
- Charging Voltage: 55.2 Vdc
- Charge Current (Max): 115 A
- Discharge Current (Max): 200 A
- Cell Service Life: Unlimited cycles within the 10-year warranty (Terms & Conditions Apply)
- Design Lifetime: 15 years

Battery Management System (BMS)
- Power Consumption: ≤ 2 W
- Cell Balancing: Passive, activated when cells are near full charge voltage
- Intelligent Current Limiter: Limits charging current to 20 A if it exceeds 200 A
- Protection: Over-charge, over-discharge, over-current, short circuit, and over/under-temperature

Cloudlink (Monitoring)
- Power Consumption: ≤ 2 W
- Wi-Fi Protocol: 802.11 b/g/n/e/i (supports 802.11n up to 150 Mbps)
- Communication Interfaces: CAN / RS485 / RS232

Physical
- Dimensions: 675 mm (Height) × 510 mm (Width) × 230 mm (Depth)
- Weight: 89 kg
- Installation: Wall-mounted with a mounting bracket

Please ensure that the battery bank's power and storage capacity is sufficient for the inverter and
installation requirements.

This product must be installed by a qualified electrician/technician. All installations must adhere to
local wiring regulations and standards. Crystal Communications and its Supplier will not be held
liable for any product malfunctions as a result of incorrectly installed systems.

Technical specifications and general features are provided on our website, however, as individual
needs and requirements may differ, it is recommended that our sales team is contacted for any
specific questions before a purchase is made to ensure that the item being purchased will satisfy
your requirements.

The images shown are for illustration purposes only and may not be an exact
representation of the product.
