Hubble Lithium AM16+, 16.1kWh 51.2V Battery

Hubble Lithium AM16+, 16.1kWh 51.2V Battery

R 39,005.00
R 39,005.00
Sale Sold out
Tax included. Shipping calculated at checkout.

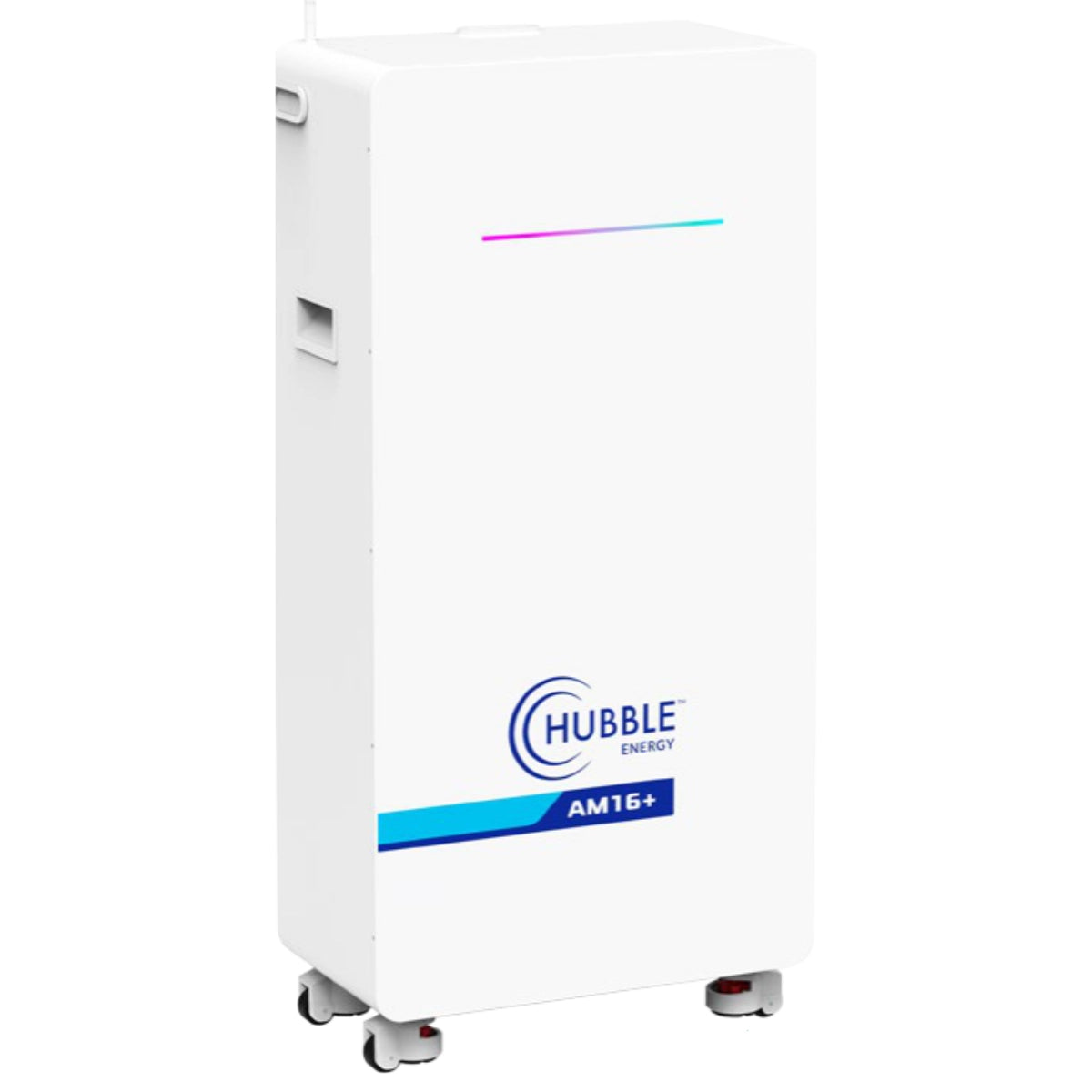

Hubble Lithium AM16+, 16.1 kWh 51.2V Battery

Take control of your energy independence with the Hubble Lithium AM-16+. Engineered for high-performance residential and commercial applications, this 16.1kWh powerhouse combines massive capacity with a sleek, user-centric design. Utilizing premium Prismatic LiFePO4 cells, the AM-16+ delivers exceptional thermal stability and longevity, ensuring your home or business stays powered through outages and peak demand periods.

Product Features

  • Unlimited Cycle Warranty (Terms & Conditions Apply)
  • Prismatic LiFePO4 Cells for enhanced durability and performance
  • Integrated 24/7 Monitoring with the Hubble Cloudlink
  • Low center of gravity design, with anti-tip
    features. Models include wheels for mobility
  • Plug and play. No installation required; place
    directly on floor
  • Advanced BMS with current limiting functionality for optimal operation
  • Informative RGB LED Display Strip for at-a-glance system status
  • High Cycle and Service Life for long-term reliability
  • Compatible with Most Inverters and Chargers for versatile integration
  • Built-in Protection against over-charge, over-discharge, and over-temperature
  • CAN Bus Compatibility for seamless communication with leading inverter brands
  • Scalable System design, supporting up to 15 units for expanded capacity

PRODUCT SPECIFICATIONS

- Battery Parameters
- Model: Hubble AM-16
- Battery Type: LiFePO4 (LFP) with 16 cells per battery
- Nominal Voltage: 51.2 Vdc
- Nominal Energy: 16.1 kWh
- Rated Capacity: 200 Ah
- Operating Voltage Range: 43.2 Vdc – 58.4 Vdc
- Charging Voltage: 55.2 Vdc
- Charge Current (Max): 130 A continuous
- Discharge Current (Max): 200 A
- Cell Service Life: Unlimited cycles within the 10-year warranty (Terms & Conditions Apply)

Battery Management System (BMS)
- Power Consumption: ≤ 2 W
- Cell Balancing: Passive, activated when cells are near full charge voltage
- Intelligent Current Limiter: Limits charging current to 20 A if it exceeds 137 A
- Protection: Over-charge, over-discharge, over-current, short circuit, and over/under-temperature


Cloudlink (Monitoring)
- Power Consumption: ≤ 2 W
- Wi-Fi Protocol: 802.11 b/g/n/e/i (supports 802.11n up to 150 Mbps)
- Communication Interfaces: CAN / RS485 / RS232


Physical
- Dimensions: 970 * 500 * 260mm (Height, Width, Depth)
- Weight: 131.5 kg
- Installation: No installation required, place directly on floor

IMPORTANT NOTICE

Please ensure that the battery bank's power and storage capacity is sufficient for the inverter and
installation requirements.

This product must be installed by a qualified electrician/technician. All installations must adhere to
local wiring regulations and standards. Crystal Communications and its Supplier will not be held
liable for any product malfunctions as a result of incorrectly installed systems.

Technical specifications and general features are provided on our website, however, as individual
needs and requirements may differ, it is recommended that our sales team is contacted for any
specific questions before a purchase is made to ensure that the item being purchased will satisfy
your requirements.

The images shown are for illustration purposes only and may not be an exact
representation of the product.
