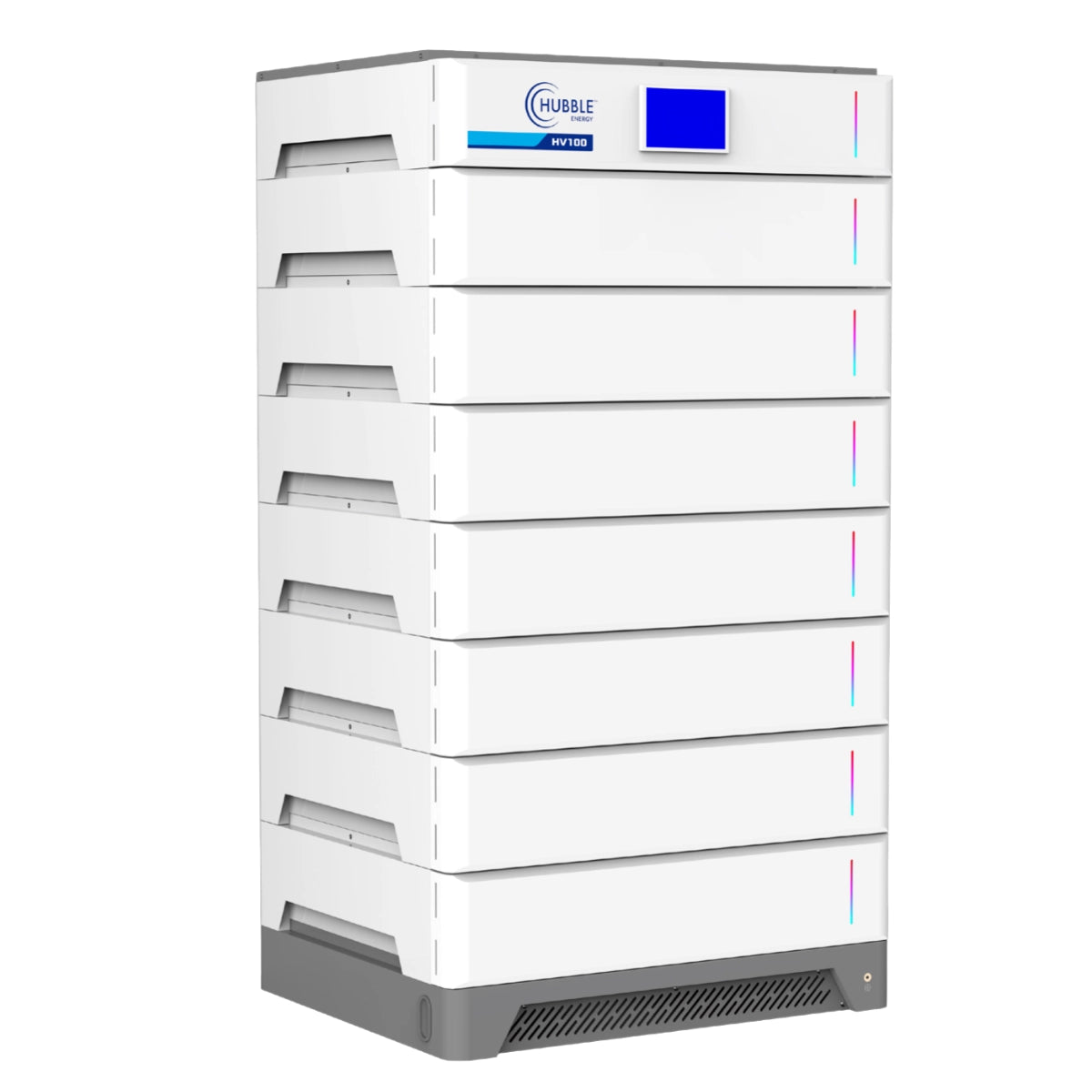

Hubble Lithium HV 51.2kWh Stackable System

Hubble Lithium HV 51.2kWh Stackable System

R 166,810.00
R 166,810.00
Sale Sold out
Tax included. Shipping calculated at checkout.

Hubble Lithium HV 51.2kWh Stackable System.

The Hubble Lithium HV 51.2kWh System is a high-voltage, high-performance Energy Storage System designed for demanding commercial and large-scale residential power needs. Engineered around safe, long-lasting LiFePO4 chemistry with 32 cells per module, this system features an innovative stackable design that simplifies transport and on-site installation. Equipped with a Smart BMU, an intuitive intelligent touchscreen, and a built-in Cloudlink, it delivers seamless 24/7 remote monitoring, over-the-air firmware updates, and direct CAN Bus communication with leading high-voltage inverter brands. Delivering a true 1C performance capability, it is a highly scalable, reliable, and future-proof backup and solar storage solution.

Product Features:

  • 1C High-Performance ESS for rapid charging and discharging.
  • Premium LiFePO4 cells (32 per module) ensuring high cycle and service life.
  • Nominal Voltage: 307V to 819V.
  • Capacity Range: 30.7kWh to 81.9kWh (100Ah rated).
  • Scalable architecture supporting up to 8 stacked battery modules.
  • Built-in Cloudlink for 24/7 remote monitoring and internet firmware updates.
  • Optional proactive monitoring and remote technical support service.
  • Intelligent touchscreen for real-time status and diagnostics.
  • Universal CAN Bus compatibility with leading high-voltage inverter brands.
  • Stackable, modular design for easy transport and rapid on-site commissioning.
  • Flexible front and rear cable entry for clean and safe installation.

PRODUCT SPECIFICATIONS

- Design Capacity: 51.2 kWh
- Rated Capacity: 100 Ah
- Nominal Voltage: 512 V
- Discharge Cutoff Voltage: 448 V
- Equalized Charge Voltage: 557 V
- Max. Continous Charging Current: 100 A
- C Rating: 1.0 C
- Recommended Depth of Discharge: 90%
- Cycle Life @ 1C: +/- 6000 Cycles @ 100% DOD with 70% SOH
- Design Life: +/- 15 Years
- Monitoring: Wi-Fi enabled cloud monitoring via the Cloudlink
- Parallel: Parallel connection up to 8 packs with full communications
- Ports: 1x CAN-bus, 2x Battery Link Ports
- Cells: New Li-ion Prismatic LiFePO4 Cells
- Cells Per Pack: 32 Cells per pack
- Total Cells: 160
- Status Indicator Light: Blue: battery system start status, Green: battery system running status, Red:
battery system fault status
- System Cooling Method: Fan Cooling
- Protection grade: IP20
- Protection: Electronic Circuit Breaker, BMS Voltage Protection, Current Limiting
- Operating Temperature: Charging: 0 to +55°C | Discharging: 0 to +55°C | Storage: 0 to +55°C
- Weight: 475 kg
- Dimensions (HxWxD) mm: 1060x760x650
- Certification: Cell UL 1973/IEC62619/UL9540A/TUV/CE/MSDS/UN38.3

IMPORTANT NOTICE

Please ensure that the battery bank's power and storage capacity is sufficient for the inverter and installation requirements.

This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. Crystal Communications and its Supplier will not be held liable for any product malfunctions as a result of incorrectly installed systems.

Technical specifications and general features are provided on our website, however, as individual needs and requirements may differ, it is recommended that our sales team is contacted for any specific questions before a purchase is made to ensure that the item being purchased will satisfy your requirements.

The images shown are for illustration purposes only and may not be an exact representation of the product.

Crystal Communications (Pty) Ltd may not have all the specific items or quantities of stock you have requested. Our dedicated Customer Service Team will use our extensive network to try to source the stock for you ASAP. You will be notified within 24 hours if we cannot source the required item, and a full refund will be processed on your order. Should you wish to contact us directly, please call 0118670488 or email sales@crystalcom.co.za
