IES 172R Battery 172.02KWh 614.4V 280AH

IES 172R Battery 172.02KWh 614.4V 280AH

R 492,860.00
R 492,860.00
Sale Sold out
Tax included. Shipping calculated at checkout.

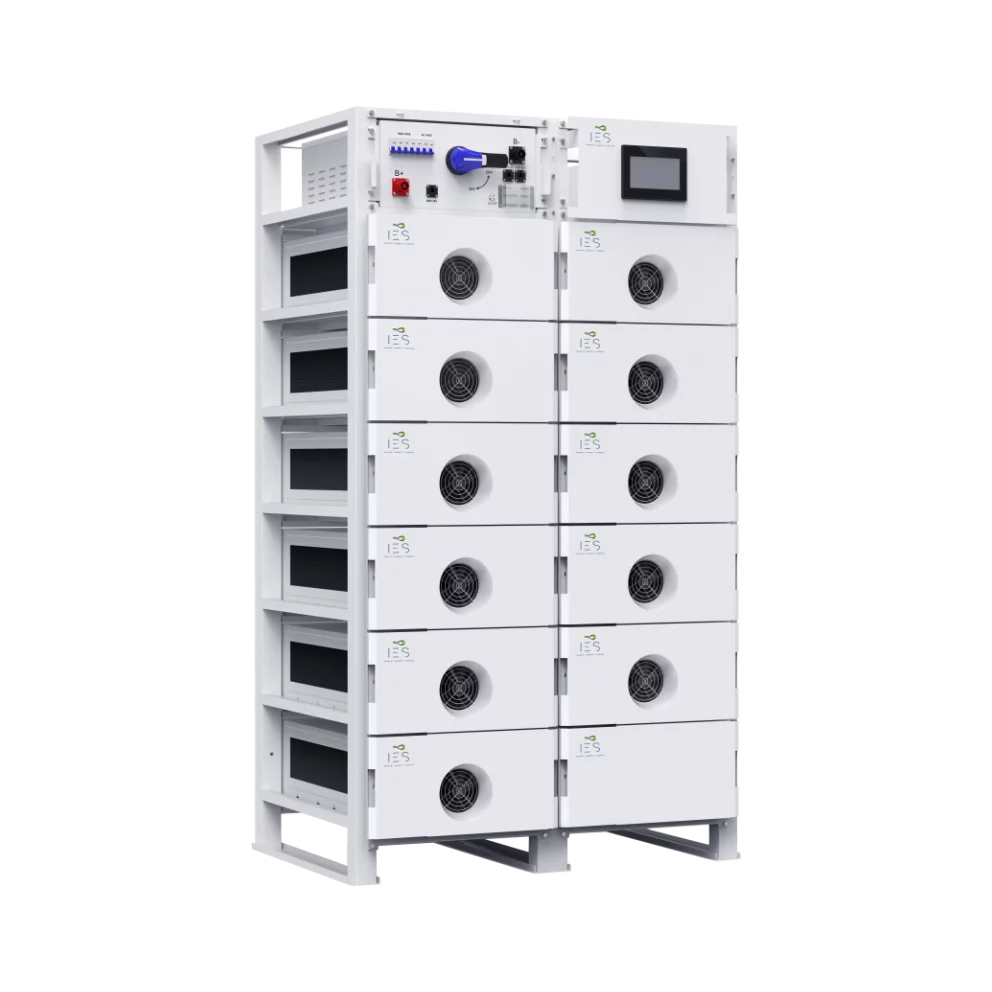

IES 172R Battery 172.02KWh 614.4V 280AH

IES advanced Battery Energy Storage Systems are not only innovative but have also delivered proven results. IES has a focus on quality and performance, and consistently exceed expectations, leading to high customer satisfaction rates. IES is committed with reliable, efficient energy solutions that truly make a difference.

Product Features:

  • Indoor battery rack with IP20 protection level, inbuild lithium-ion battery and BMS
  • Local and remote management, standard rack & module design, front maintenance
  • Self-developed 2-level / 3-level BMS, multiple protection, safe and reliable
  • Long cycle life, 8000 cycles
  • High capacity LFP battery
  • Advanced cell balancing

PRODUCT SPECIFICATIONS

Performance
- Battery module (Wh/V) 14.336 kWh, 51.2 V, 110 kg (242.5 lbs)
- Number of modules 10
- Cell technology LFP (LiFePO4)
- Battery usable energy [1] 143.36 kWh
- Nominal voltage 512 V
- Operating voltage 456-561.6 V
- Nominal output current 140 A / 280 A

Communication:
- Display - SOC status indicator, LED indicator, LCD display
- Communication - Ethernet / CAN / RS485

General Specification:
- Dimension (W*D*H) 66.8x33.1x69.9 inch
- Weight 1650kg (3395lbs)
- Operating temperature -20 to 60 °C (-4 to 140 °F)
- Environmental humidity ≤ 95%RH (No condensation)
- Protection rating IP 20
- Cycle life 8000 Cycles @ 80% DOD / 25℃ / 0.5C，70% EOL
- Scalability Yes
- Application ON Grid / ON Grid + Backup / OFF grid
- Compatible PCS Refer to compatible PCS list

Standard Compliance:
Certificates:
- Cell: UN38.3 / IEC62619 / UL 1642 / JET
- Pack: UN38.3 / IEC62619 / IEC61000
- System: UL 9540 (More available upon request)

Note: Delivery Not Included - Once your order has been placed, our sales team will contact you to confirm delivery fees.

IMPORTANT NOTICE

Please ensure that the battery bank's power and storage capacity is sufficient for the inverter and installation requirements.

This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. Crystal Communications and its Supplier will not be held liable for any product malfunctions as a result of incorrectly installed systems.

Technical specifications and general features are provided on our website, however, as individual needs and requirements may differ, it is recommended that our sales team is contacted for any specific questions before a purchase is made to ensure that the item being purchased will satisfy your requirements.

The images shown are for illustration purposes only and may not be an exact representation of the product.

Crystal Communications (Pty) Ltd may not have all the specific items or quantities of stock you have requested. Our dedicated Customer Service Team will use our extensive network to try to source the stock for you ASAP. You will be notified within 24 hours if we cannot source the required item, and a full refund will be processed on your order. Should you wish to contact us directly, please call 0118670488 or email sales@crystalcom.co.za
