• IES 215R Battery 215.04kWh 716.8V 280AH
1 1

IES

IES 215R Battery 215.04kWh 768.0V 280AH

IES 215R Battery 215.04kWh 768.0V 280AH

R 607,805.00
R 607,805.00
Sale Sold out
Tax included. Shipping calculated at checkout.

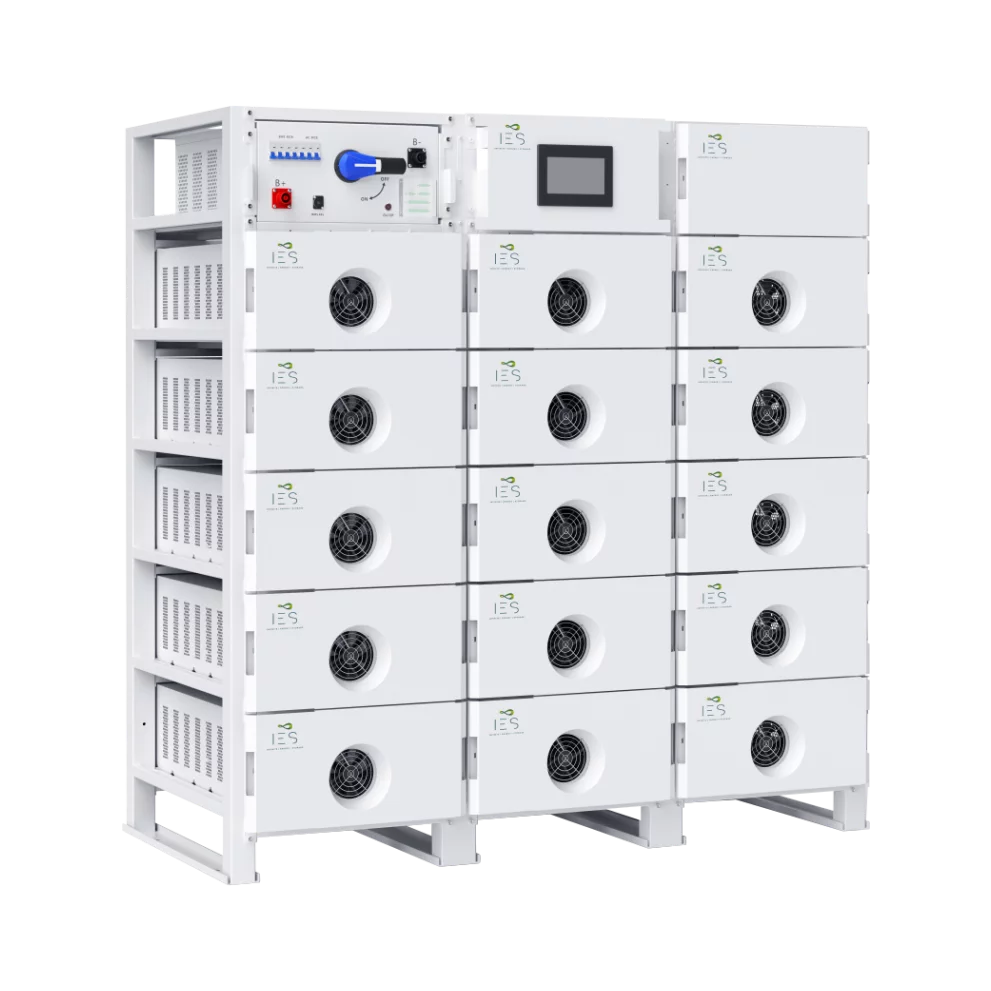

IES 215R Battery 215.04kWh 768.0V  280AH

IES advanced Battery Energy Storage Systems are not only innovative but have also delivered proven results. IES has a focus on quality and performance, and consistently exceed expectations, leading to high customer satisfaction rates. IES is committed with reliable, efficient energy solutions that truly make a difference.

Product Features:

  • Indoor battery rack with IP20 protection level, inbuild lithium-ion battery and BMS
  • Local and remote management, standard rack & module design, front maintenance
  • Self-developed 2-level / 3-level BMS, multiple protection, safe and reliable
  • Long cycle life, 8000 cycles
  • High capacity LFP battery
  • Advanced cell balancing

PRODUCT SPECIFICATIONS

Performance
- Battery module (Wh/V) 14.336 kWh, 51.2 V, 110 kg (242.5 lbs)
- Number of modules 15
- Cell technology LFP (LiFePO4)
- Battery usable energy [1] 215.04kWh
- Nominal voltage 768.0V
- Operating voltage 672-824.4V
- Nominal output current 140 A / 280 A

Communication:
- Display - SOC status indicator, LED indicator, LCD display
- Communication -Ethernet / CAN / RS485

General Specification:
- Dimension (W*D*H) 67.8x33.1x69.9 inch
- Weight 1980kg (4365lbs)
- Operating temperature -20 to 60 °C (-4 to 140 °F)
- Environmental humidity ≤ 95%RH (No condensation)
- Protection rating IP 20
- Cycle life 8000 Cycles @ 80% DOD / 25℃ / 0.5C，70% EOL
- Scalability Yes
- Application ON Grid / ON Grid + Backup / OFF grid
- Compatible PCS Refer to compatible PCS list

Standard Compliance:
Certificates:
- Cell: UN38.3 / IEC62619 / UL 1642 / JET
- Pack: UN38.3 / IEC62619 / IEC61000
- System: UL 9540 (More available upon request)

Note: Delivery Not Included- Once your order has been placed, our sales team will contact you to confirm delivery fees.

IMPORTANT NOTICE

Please ensure that the battery bank's power and storage capacity is sufficient for the inverter and installation requirements.

This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. Crystal Communications and its Supplier will not be held liable for any product malfunctions as a result of incorrectly installed systems.

Technical specifications and general features are provided on our website, however, as individual needs and requirements may differ, it is recommended that our sales team is contacted for any specific questions before a purchase is made to ensure that the item being purchased will satisfy your requirements.

The images shown are for illustration purposes only and may not be an exact representation of the product.
