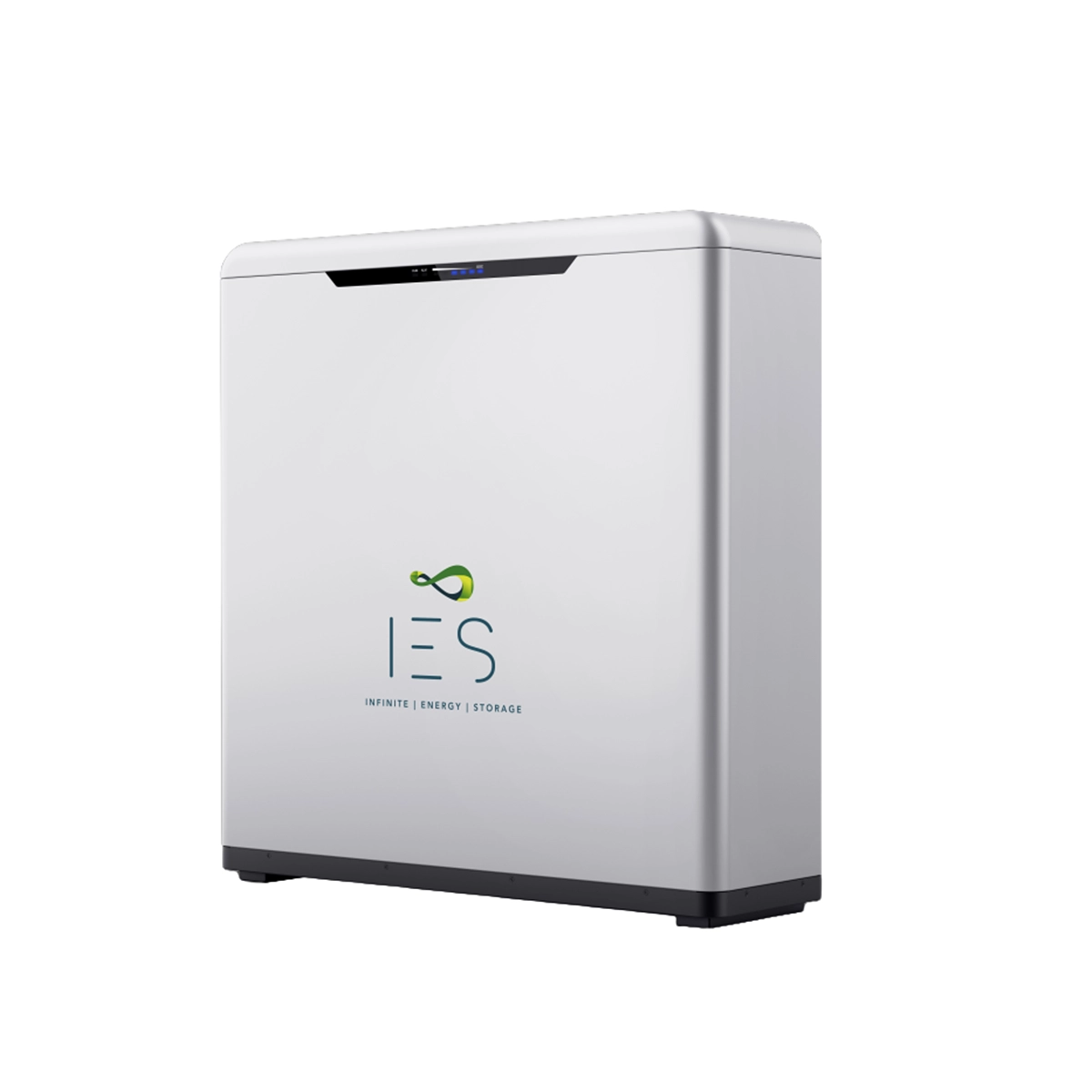

IES Battery 14.3kWh 280Ah 51.2V

IES Battery 14.3kWh 280Ah 51.2V

The IES-BATT-14.33 is a high-performance 14.33kWh Lithium Iron Phosphate (LFP) battery, designed for maximum efficiency and reliability. With deep cycle DOD control, it provides more usable energy, making it an ideal solution for both residential and commercial energy storage needs.

• Product Features:

  • High Usable Energy – Deep cycle DOD control ensures maximum efficiency and longer battery life.
  • Easy Installation – Flexible floor-standing or wall-mounted design for hassle-free setup.
  • Quick Commissioning – One-button ON/OFF and automatic ID assignment simplify system configuration.
  • Scalable & Flexible Investment – Connect up to 15 units in parallel to expand your energy storage capacity.
  • Safe & Reliable – Built with premium Lithium Iron Phosphate (LFP) technology for enhanced safety and durability.
  • Long Life Cycle – 8000 cycles ensure long-term reliability and cost-effectiveness.
  • Perfect Compatibility – Seamlessly integrates with major PCS brands for a smooth and efficient power solution.


Specifications:

Performance:

• Cell Technology: LFP (LiFePO₄)
• Battery Usable Energy: 14.33 kWh
• Nominal Voltage: 51.2V
• Operating Voltage Range: 44.8V – 56.1V
• Nominal Output Current: 140A / 280A
• SMS Protection Current: 300A / 1S

Communication:

• Display: SOC status indicator, LED indicator
• Communication Protocols: CAN / RS485 / RS232 / Wi-Fi (optional)

General Specifications:

• Dimensions (WDH): 800 × 250 × 839 mm (31.5 × 9.8 × 33.0 in)
• Weight: 145 kg (320 lbs)
• Installation: Floor Stand or Wall Mounted
• Operating Temperature: -20°C to 60°C (-4°F to 140°F)
• Environmental Humidity: ≤ 95% RH (No condensation)
• Protection Rating: IP20
• Cycle Life: 8000 Cycles (10 years @ 80% DOD / 25°C / 35°C, 70% EOL)
• Scalability: Max 15 batteries in parallel
• Application: On Grid / Off Grid + Backup / Off Grid
• Compatible Inverters: Refer to the compatible inverter list (Compatible with major PCS brands)

Standard Compliance:

• Cell Compliance: UN38.3 / IEC62619 / UL 1642 / JET
• Battery Pack Compliance: UN38.3 / IEC62619 / IEC61000 / UKCA (More available upon request)
