JA Solar

JA Solar 465W N-type Double Glass Monofacial LR Traceable Low Carbon 54 Cell Black Frame MC4

JA Solar 465W N-type Double Glass Monofacial LR Traceable Low Carbon 54 Cell Black Frame MC4

R 1,605.00
R 1,605.00
Sale Sold out
Tax included. Shipping calculated at checkout.

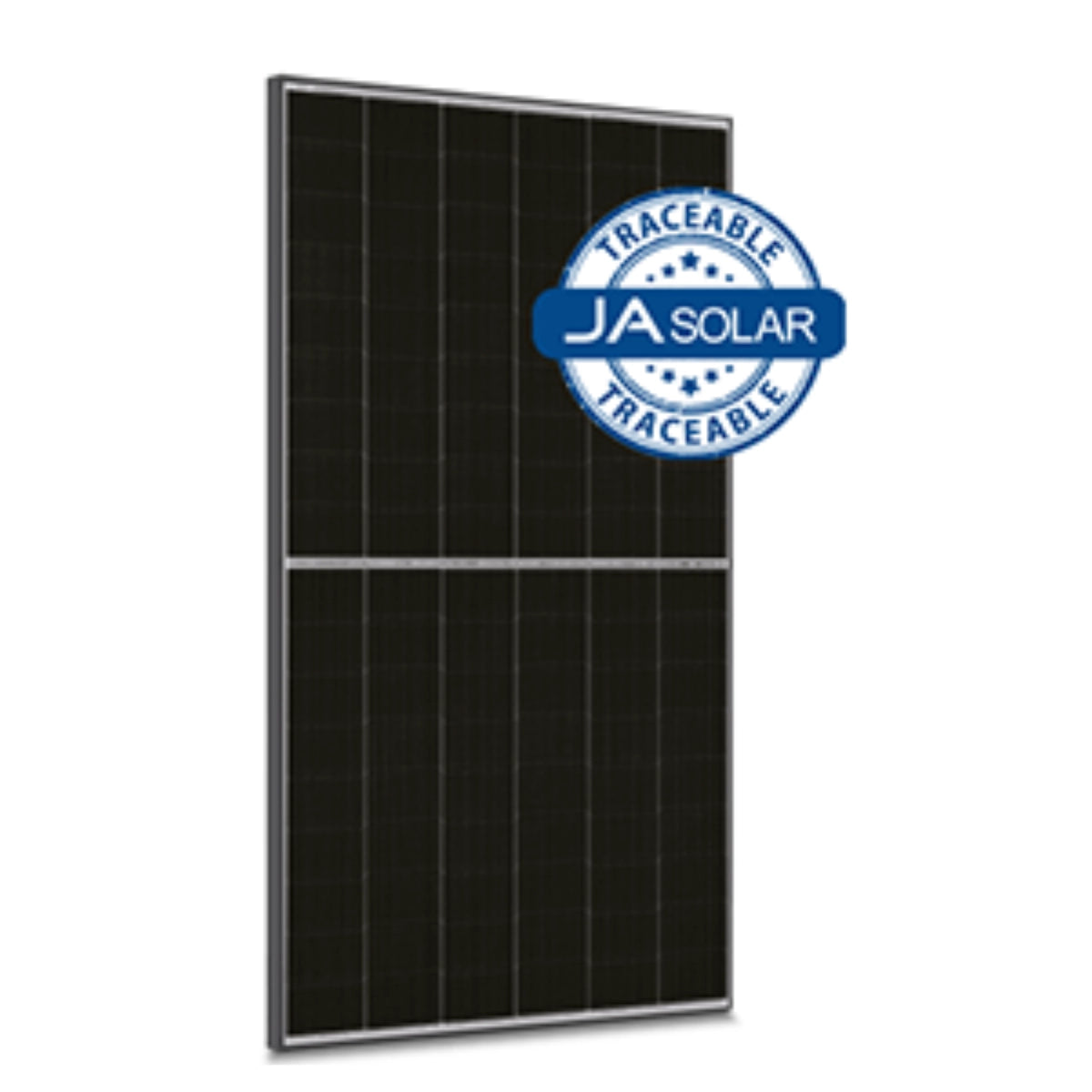

JA Solar 465W N-type Double Glass Monofacial LR Traceable Low Carbon 54 Cell Black Frame MC4

The JA Solar 465W N-type Double Glass Monofacial Module represents the next generation of solar engineering. Designed for residential, commercial, and industrial applications demanding maximum energy density, this 54-cell module delivers a massive 465W output and an industry-leading 23.3% efficiency within a compact 1,762mm x 1,134mm footprint.

Product Features:

  • High power generation with better LCOE.
  • N-type with very lower Light-Induced Degradation (LID).
  • Better weak irradiance response.
  • Higher efficiency of up to 23.3%.
  • Better temperature coefficient.

Shipping & Handling Notes:

  • Offloading Requirements: Due to the size of the panels and the spacing between pallet slats, a forklift is required on-site to safely offload these modules.
  • Free Shipping Policy: To qualify for free shipping, solar panel orders must consist of 6 units or more.
  • Outlying Areas: Additional shipping charges may apply to outlying regions and will be quoted accordingly following your order.

PRODUCT SPECIFICATIONS

- Weight: 22 kg
- Rated Power:465 W
- Length: 1,762 mm
- Width: 1,134 mm
- Depth: 30 mm
- VMPP: 33.5 V
- IMPP: 13.88 A
- Isc: 14.65 A
- Voc: 40.2 V
- Temp. Coefficient (Mpp): -0.29 %
- Clamp position on panel: Long and short side
- Connector Description: MC4
- Connector Type: MC4
- Module Efficiency: 23.3 %
- Pallet Size: Oversized

IMPORTANT NOTICE

This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. Crystal Communications and its Supplier will not be held liable for any product malfunctions as a result of incorrectly installed systems.

Technical specifications and general features are provided on our website, however, as individual needs and requirements may differ, it is recommended that our sales team is contacted for any specific questions before a purchase is made to ensure that the item being purchased will satisfy your requirements.

The images shown are for illustration purposes only and may not be an exact representation of the product.

Crystal Communications (Pty) Ltd may not have all the specific items or quantities of stock you have requested. Our dedicated Customer Service Team will use our extensive network to try to source the stock for you ASAP. You will be notified within 24 hours if we cannot source the required item, and a full refund will be processed on your order. Should you wish to contact us directly, please call 0118670488 or email sales@crystalcom.co.za
