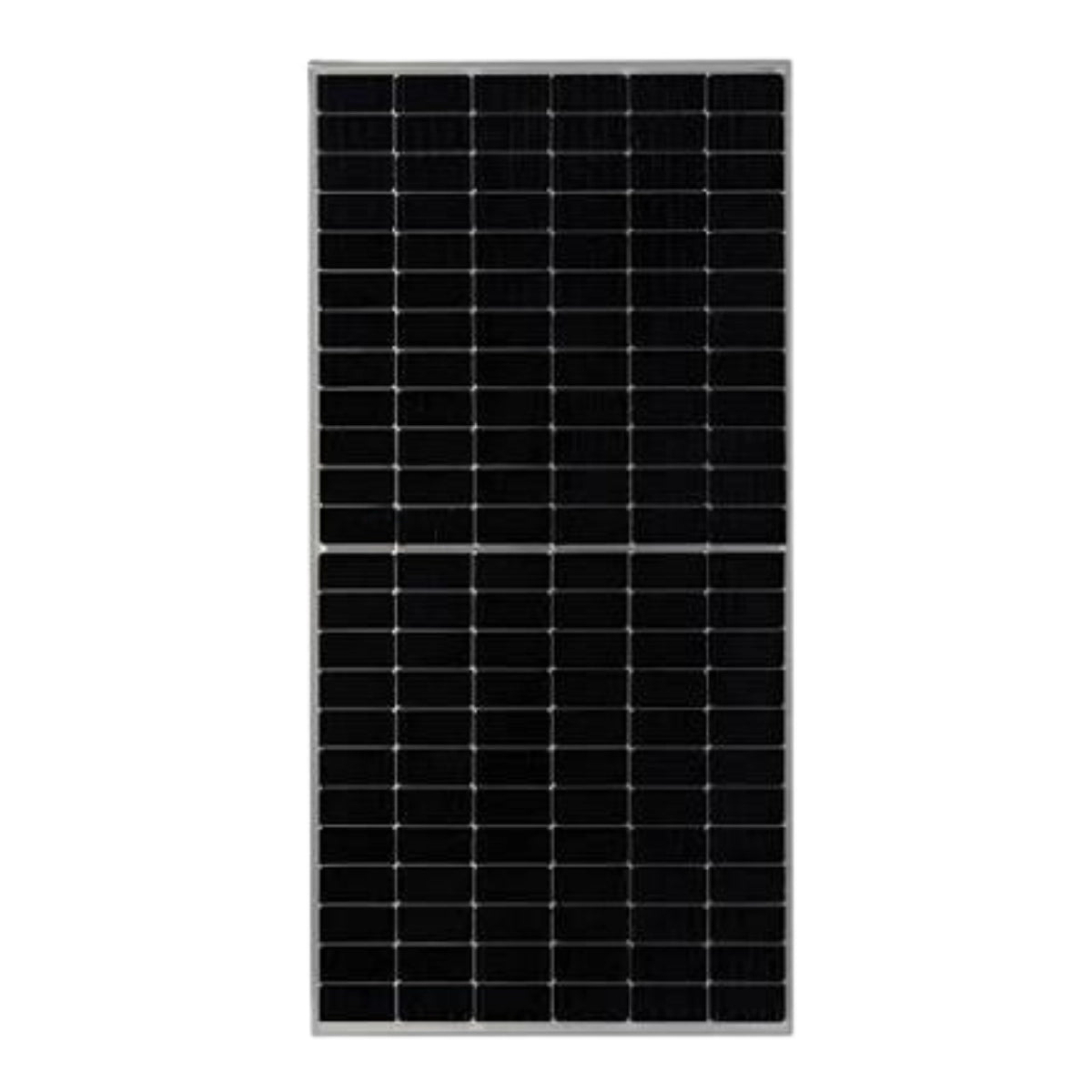

JA Solar 610W N-type TOPCon MBB Traceable Double Glass Bifacial Solar Panel

JA Solar 610W N-type TOPCon MBB Traceable Double Glass Bifacial Solar Panel

R 2,035.00
R 2,035.00
Sale Sold out
Tax included. Shipping calculated at checkout.

JA Solar 610W N-type TOPCon MBB Traceable Double Glass Bifacial 72 Cell Silver Frame MC4

Maximize your energy independence with the JA Solar 610W N-Type Bifacial Module. Engineered for high-performance solar installations, this advanced panel combines cutting-edge N-type cell technology with a robust double-glass design. Whether you are powering a large-scale commercial facility or optimizing a residential array, this module provides superior output, exceptional durability, and industry-leading reliability.

Product Features:

  • Extreme Power Output: At 610W, this module provides high-density energy generation, reducing the number of panels needed for your total system requirements.
  • Next-Generation N-Type Technology: N-type cells provide higher efficiency and lower Light-Induced Degradation (LID), ensuring your system performs better over its entire lifespan.
  • Superior Environmental Durability: The dual-glass construction offers enhanced protection against humidity, dust, and extreme temperature fluctuations, providing a longer service life compared to standard single-glass panels.
  • Bifacial Energy Capture: Dual-sided panels allow for additional power generation from the rear, effectively increasing your total energy harvest by capturing ambient and reflected sunlight.
  • Optimized Low-Light Performance: Engineered for better sensitivity in weak lighting, ensuring your system starts producing power earlier in the morning and continues later into the evening.
  • Industry-Leading Reliability: Built with the JA Solar Integrated Traceable System for total quality assurance and component monitoring.
  • Ready for Installation: Includes 1200mm landscape cables to streamline your wiring process during setup.

Shipping & Handling Notes:

  • Offloading Requirements: Due to the size of the panels and the spacing between pallet slats, a forklift is required on-site to safely offload these modules.
  • Free Shipping Policy: To qualify for free shipping, solar panel orders must consist of 6 units or more.
  • Outlying Areas: Additional shipping charges may apply to outlying regions and will be quoted accordingly following your order.

PRODUCT SPECIFICATIONS

General Information
- Model Number: JAM72D40-610/LB
- Rated Power: 610 W
- Module Efficiency: 23.1%
- Weight: 32.5 kg

Electrical Parameters
- Voltage at Max Power (Vmp): 44.11 V
- Current at Max Power (Imp): 13.83 A
- Open Circuit Voltage (Voc): 52.8 V
- Short Circuit Current (Isc): 14.57 A
- Temp. Coefficient (Pmax): -0.29 %/°C

Mechanical Dimensions
- Length: 2,333 mm
- Width: 1,134 mm
- Depth: 30 mm
- Clamp Position: Long side only

Connectivity & Logistics
- Connector Type: MC4-EVO2A
- MCS Reference: BABT 8515-341-610W
- Pallet Size: Oversized

Warranty & Reliability
- Product Warranty: 12 years
- Linear Power Output Warranty: 30 years
- Technology: N-type Bifacial Double Glass

IMPORTANT NOTICE

This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. Crystal Communications and its Supplier will not be held liable for any product malfunctions as a result of incorrectly installed systems.

Technical specifications and general features are provided on our website, however, as individual needs and requirements may differ, it is recommended that our sales team is contacted for any specific questions before a purchase is made to ensure that the item being purchased will satisfy your requirements.

The images shown are for illustration purposes only and may not be an exact representation of the product.
