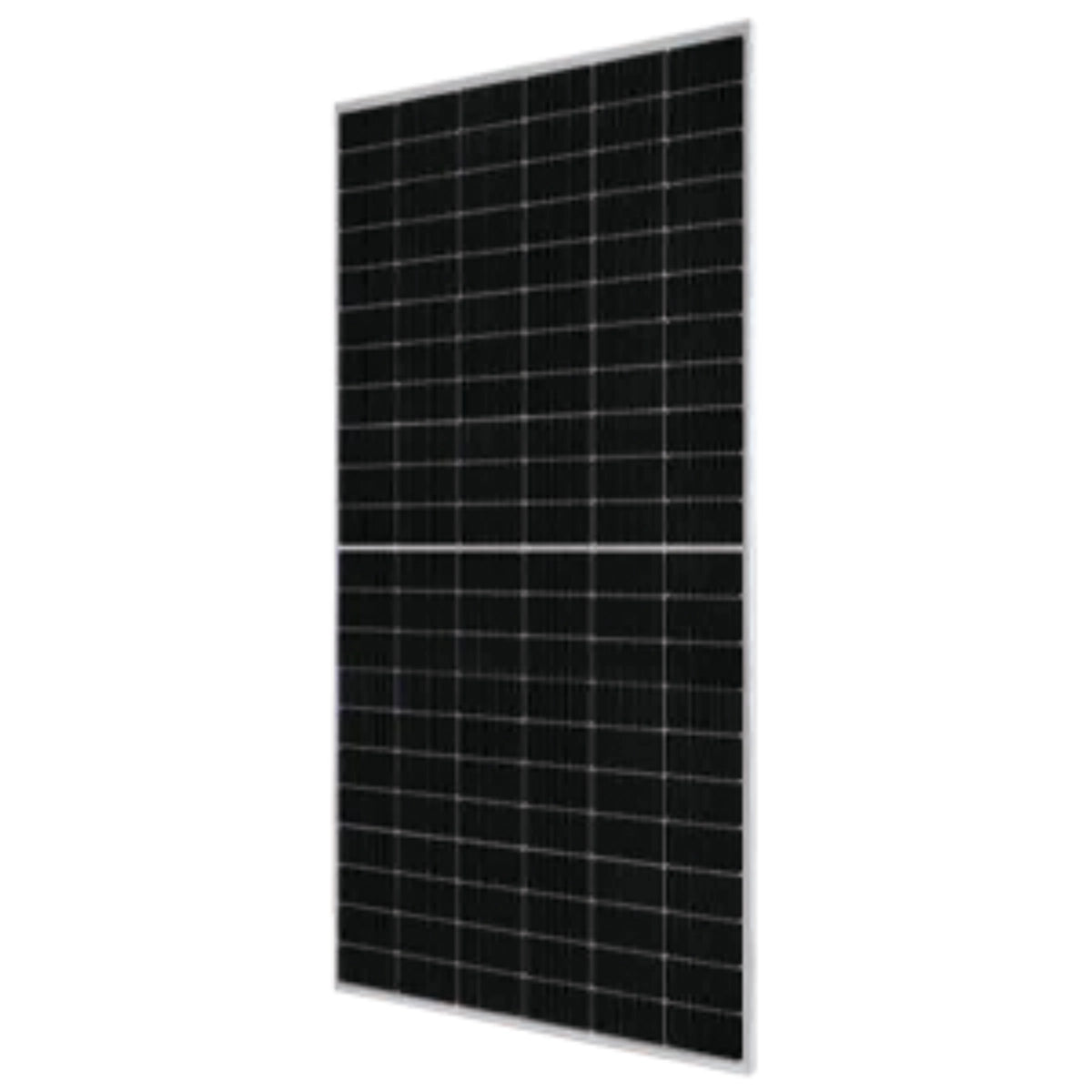

JinKO 615W Tiger Neo N-Type TOPCon 66 ogniw Bifacial Silver Frame

The JinkoSolar 615W Tiger Neo N-Type TOPCon is a high-performance bifacial solar module designed to set new standards in energy density and long-term reliability. By utilizing HOT 3.0 Technology and a 66-cell architecture, this panel is engineered to maximize power harvest while significantly reducing the Levelized Cost of Energy (LCOE) for any solar installation.

Product Features:

  • High Power Output – 615W
    Delivers exceptional energy generation to maximize the efficiency of your solar array.
  • Advanced N-Type TOPCon Technology
    Features HOT 3.0 technology for lower LID/LeTID degradation and significantly better performance in low-light conditions.
  • Bifacial Energy Gain
    Dual-sided power generation captures reflected light from the back, increasing total yield and reducing LCOE.
  • SMBB (Super Multi Busbar) Technology
    Provides better light trapping and improved current collection, enhancing both module power output and structural reliability.
  • Superior Low-Light Performance
    Maintains high efficiency and reliable output during cloudy days, early mornings, and late afternoons.
  • Enhanced Mechanical Load Tolerance
    Certified to withstand heavy environmental stress, including a 5400 Pa front-side and 2400 Pa rear-side static test load.
  • Anti-PID Guarantee
    Minimizes power loss from Potential Induced Degradation through optimized cell production and stringent material control.
  • Long-Term Warranty Protection
    Includes a 12-Year Product Warranty and a 30-Year Linear Power Warranty, ensuring 87.4% output after three decades.
  • Ultra-Low Degradation
    Experience only a 1% degradation in the first year and a minimal 0.40% annual degradation over 30 years.

Shipping Note: To qualify for free shipping, solar panel orders must consist of 6 units or more. Additional shipping charges may also apply to outlying areas and will be quoted accordingly.

PRODUCT SPECIFICATIONS

- Maximum Power (Pmax) - 615W
- Maximum Power Voltage (Vmp) - 40.60V
- Maximum Power Current (Imp) [A] - 15.15A
- Open-circuit Voltage (Voc) - 48.88 V
- Short-circuit Current (Isc) - 16.02 A
- Module Efficiency STC (%) - 22.77 %
- Dimensions : 2382×1134×30 mm
- Connector Type: JK03M/MC4/Others*
