Lemoen Lithium Ion Battery BOX39S 2.56KWH 25.6V 100Ah 1C

Lemoen Lithium Ion Battery BOX39S 2.56KWH 25.6V 100Ah 1C

R 7,178.00
R 7,178.00
Sale Sold out
Tax included. Shipping calculated at checkout.

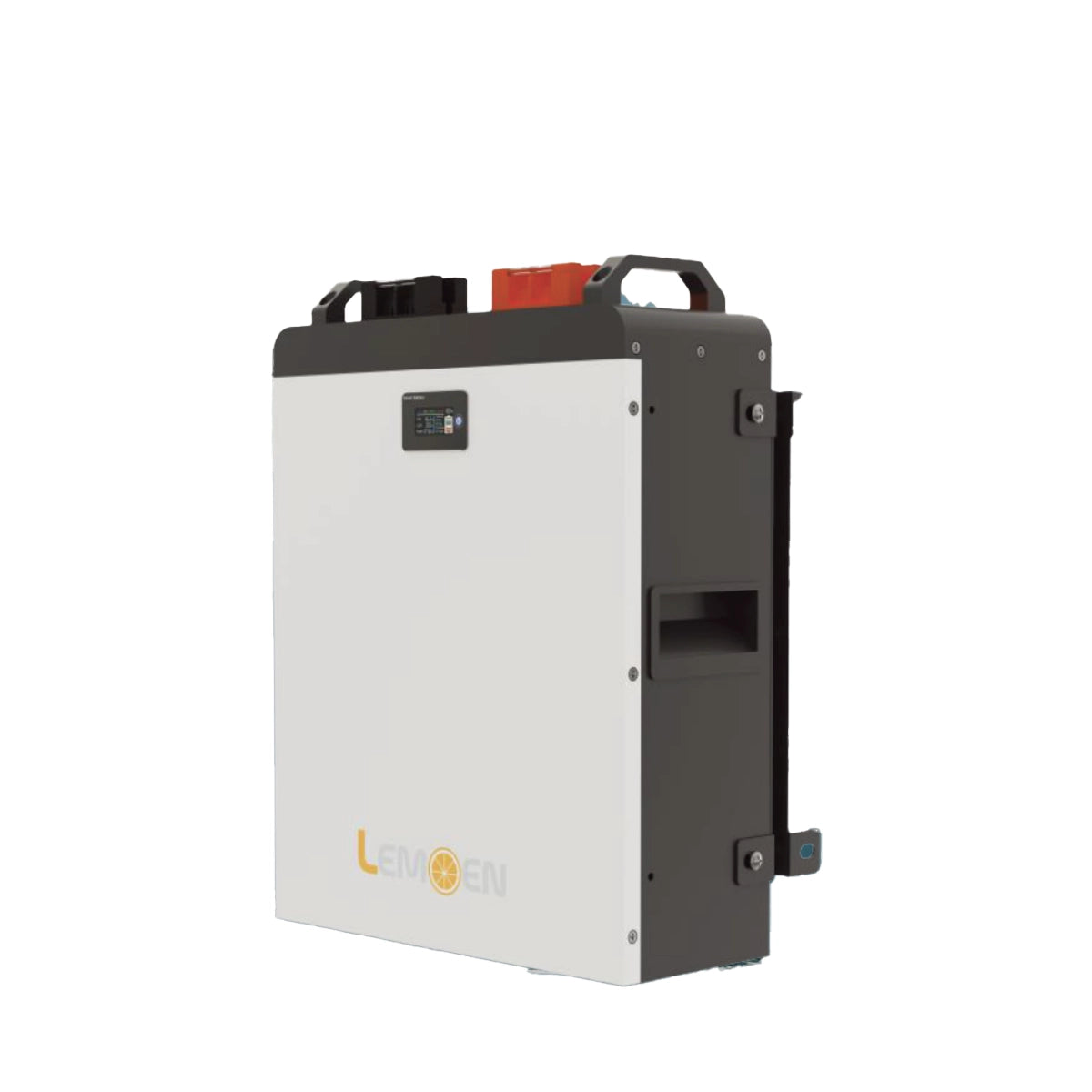

Lemoen Lithium Ion Battery BOX39S 2.56KWH 25.6V 100Ah 1C (Wall Mount / Stackable) (LemoenBOX39S)

The Lemoen BOX39S is a compact and highly efficient residential energy storage battery designed to meet the evolving energy demands of modern homes. With a nominal energy capacity of 2.56kWh and advanced Lithium Iron Phosphate (LFP) cell technology, it offers reliable backup power and seamless integration with solar inverters. The system supports both wall-mounted and stackable rack installations, providing flexible deployment options for homeowners and installers. An integrated Battery Management System (BMS) ensures safety and compatibility with multiple leading inverter brands, while the built-in LCD screen enables real-time monitoring and control.

Product Features:

  • Compatible with various inverter brands via integrated BMS
  • Flexible installation options: wall-mounted or stackable rack
  • High safety and performance using LFP battery cells
  • Integrated LCD display for real-time system status
  • Optional Bluetooth functionality for enhanced connectivity
  • Supports 2 series and 2 parallel connections
  • Over 6000 cycles at 80% Depth of Discharge (DOD)
  • Certifications: CE, MSDS, UN38.3, IEC 62619, UL1973

PRODUCT SPECIFICATIONS

- Product Model: ES-BOX39S
- Nominal Energy: 2.56kWh
- Nominal Voltage: 25.6V
- Nominal Capacity: 100Ah
- Cell Type: LFP (Lithium Iron Phosphate)
- Standard Charge Voltage: 28V
- Discharge Cut-off Voltage: 22.4V
- Max. Discharge Current: 100A
- Series & Parallel Function: Supports 2S2P configuration
- Display: Integrated LCD screen
- Cycle Life: ≥6000 cycles (25°C±2°C, 0.2C/0.2C, 80%DOD)
- Charge Temperature Range: 0–65°C
- Discharge Temperature Range: -20–65°C
- Installation Method: Wall-mounted or stackable rack
- Dimensions: 340 × 420 × 140 mm
- Weight: 27 kg
- Optional Function: Bluetooth
- Warranty: 3 years (under warranty terms)

IMPORTANT NOTICE

Please ensure that the battery bank's power and storage capacity is sufficient for the inverter and installation requirements.

This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. Crystal Communications and its Supplier will not be held liable for any product malfunctions as a result of incorrectly installed systems.

Technical specifications and general features are provided on our website, however, as individual needs and requirements may differ, it is recommended that our sales team is contacted for any specific questions before a purchase is made to ensure that the item being purchased will satisfy your requirements.

The images shown are for illustration purposes only and may not be an exact representation of the product.
