Lemoen

Lemoen Reservoir16 16KWH 51.2V 314AH Lithium Ion Battery

Lemoen Reservoir16 16KWH 51.2V 314AH Lithium Ion Battery

R 28,583.00
R 30,000.00 R 28,583.00
Sale Sold out
Tax included. Shipping calculated at checkout.

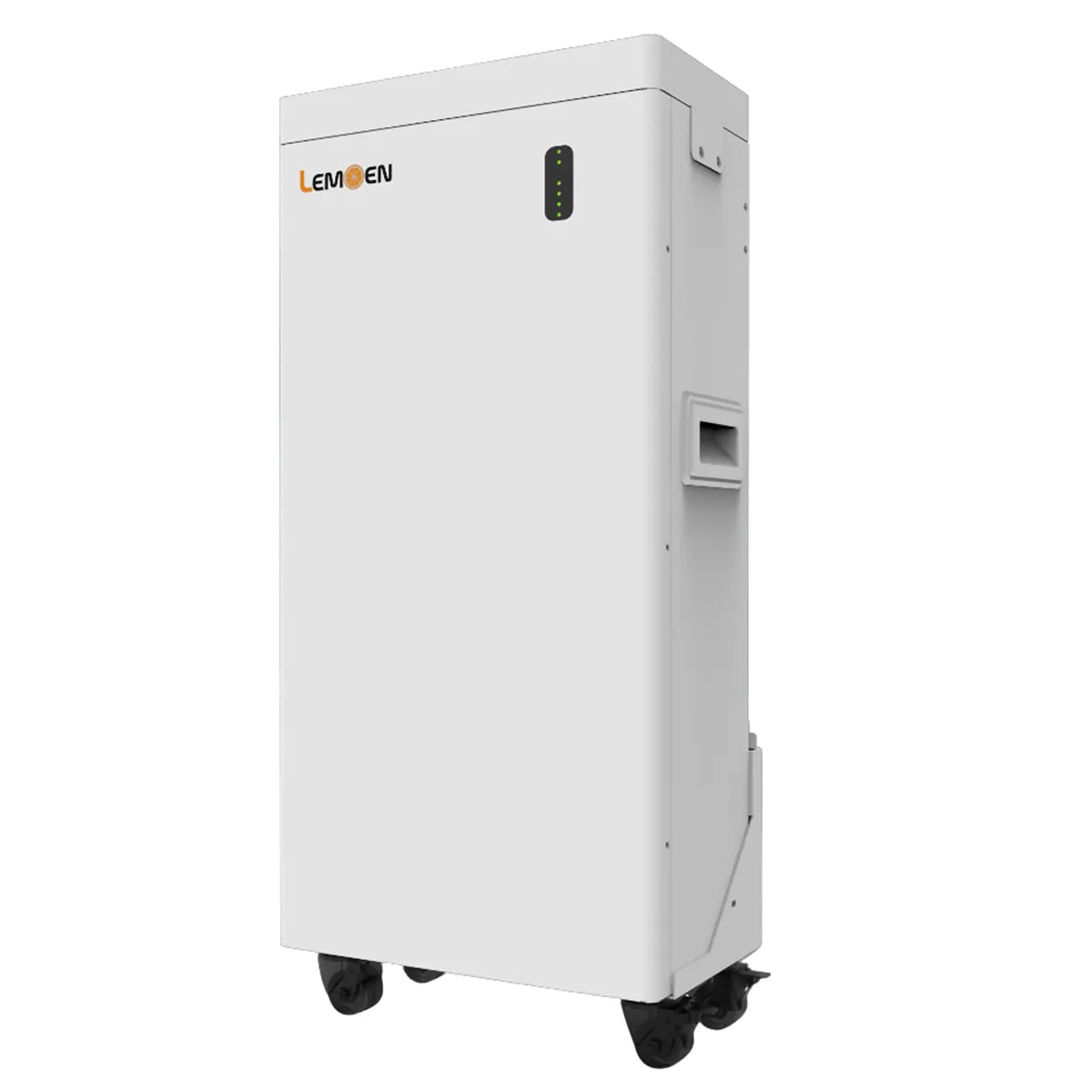

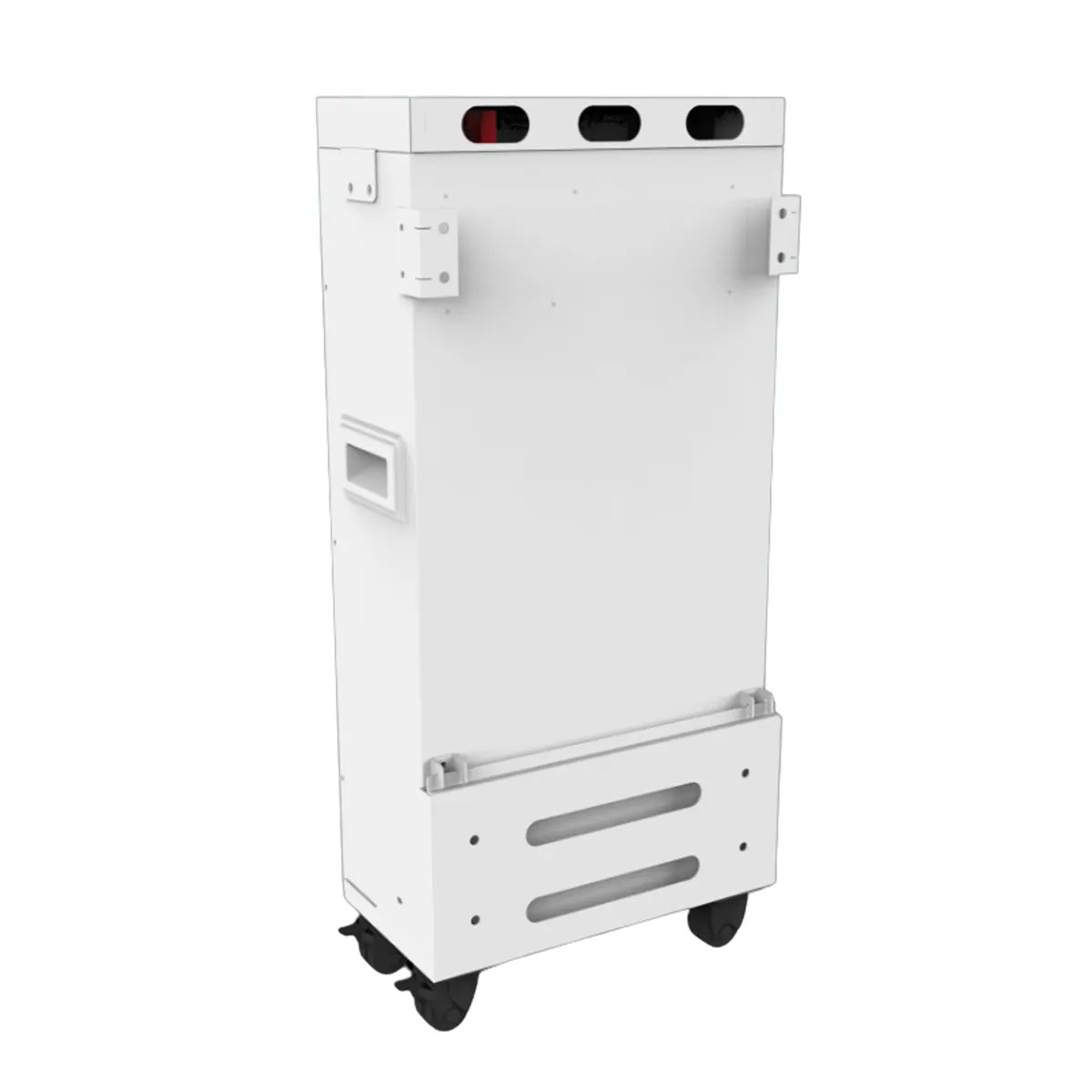

Lemoen Reservoir16 16KWH 51.2V 314AH Lithium Ion Battery

The Lemoen Reservoir16 delivers 16kWh of dependable, high-performance energy storage with advanced LFP (LiFePO₄) chemistry for ultimate safety and longevity. Designed for both residential and commercial systems, it features integrated fire suppression, short-circuit protection, and smart BMS management to maximise battery lifespan. With a robust 200A continuous power output and the ability to connect up to 35 units in parallel, it’s built for scalable energy demands.

Enjoy easy monitoring and remote upgrades via WiFi or Bluetooth, plus wide inverter compatibility for seamless integration. The Reservoir16 offers versatile installation options — stackable, wall-mounted, or floor-standing — and includes both foot and wall-mount brackets. Backed by a 10-year / 8000-cycle warranty, this battery is engineered for safety, durability, and reliable off-grid or hybrid power performance.

Product Features:

  • 200A Continuous Power
  • 10 Year Warranty
  • 35 Units Stackable
  • 3 ways to install
  • 8000 Cycles
  • Ultra safe LFP material
  • Short circuit protection
  • Flexible remote upgrade
  • WiFi / Bluetooth available
  • Wide range inverter compatibility
  • Multi protection to avoid over discharge
  • Smart BMS management for longer lifespan
  • Heating system optional, quality design for robust applications
  • Stackable / floor-standing / wall-mount installations
  • Fire suppression built in, wheels or foot brackets options

PRODUCT SPECIFICATIONS

- Cell Type: LFP
- Rated Energy: 16.076kWh
- Rated Capacity: 314Ah
- Rated Voltage: 51.2V
- Charge Voltage (Vdc): 57.2V

Battery Charge Current(A):
- 160(max continuous)
- 165 (start limit current to 10A, retest every 10 minutes)
- 180 (peak1 15S)
- 200 (peak2 500ms)

Battery Discharge Current(A):
- 200(max continuous)
- 205(start giving over-current alarm but not stop discharging)
- 210 (peak1 2minutes)
- 220 (peak2 500ms)
- Parallel: Up to 35 units parallelable w/o extra device needed, slave battery drops offline or come back alive does not affect system running

- IP Level: IP20
- Dimension(W*D*H,mm): 900*445*230mm
- Weight: 120Kg
- Communication: CAN/RS485
- Applications: Auto-addressing and stronger protection
- DOD: 90%
- Cycles: 8000
- Compatible Inverter: Victron, Luxpower, Deye, Voltronic, SMA, Goodwe, Growatt, Sofar, Solark, SRNE
- Remote Maintenance: Flexible remote upgrade,Original firmware backup to prevent upgrade failure
- Warranty: 10 year, 8000 cycles
- Certification: CE UN38.3 IEC62619
- Protection: Over -charge/discharge/current/voltage/temperature protection.Short circuit protection, Reverse connection protection.Charge balance, Low SOC protection

IMPORTANT NOTICE

Please ensure that the battery bank's power and storage capacity is sufficient for the inverter and installation requirements.

This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards.

Crystal Communications and its Supplier will not be held liable for any product malfunctions as a result of incorrectly installed systems.

Technical specifications and general features are provided on our website, however, as individual needs and requirements may differ, it is recommended that our sales team is contacted for any specific questions before a purchase is made to ensure that the item being purchased will satisfy your requirements.

The images shown are for illustration purposes only and may not be an exact representation of the product.
