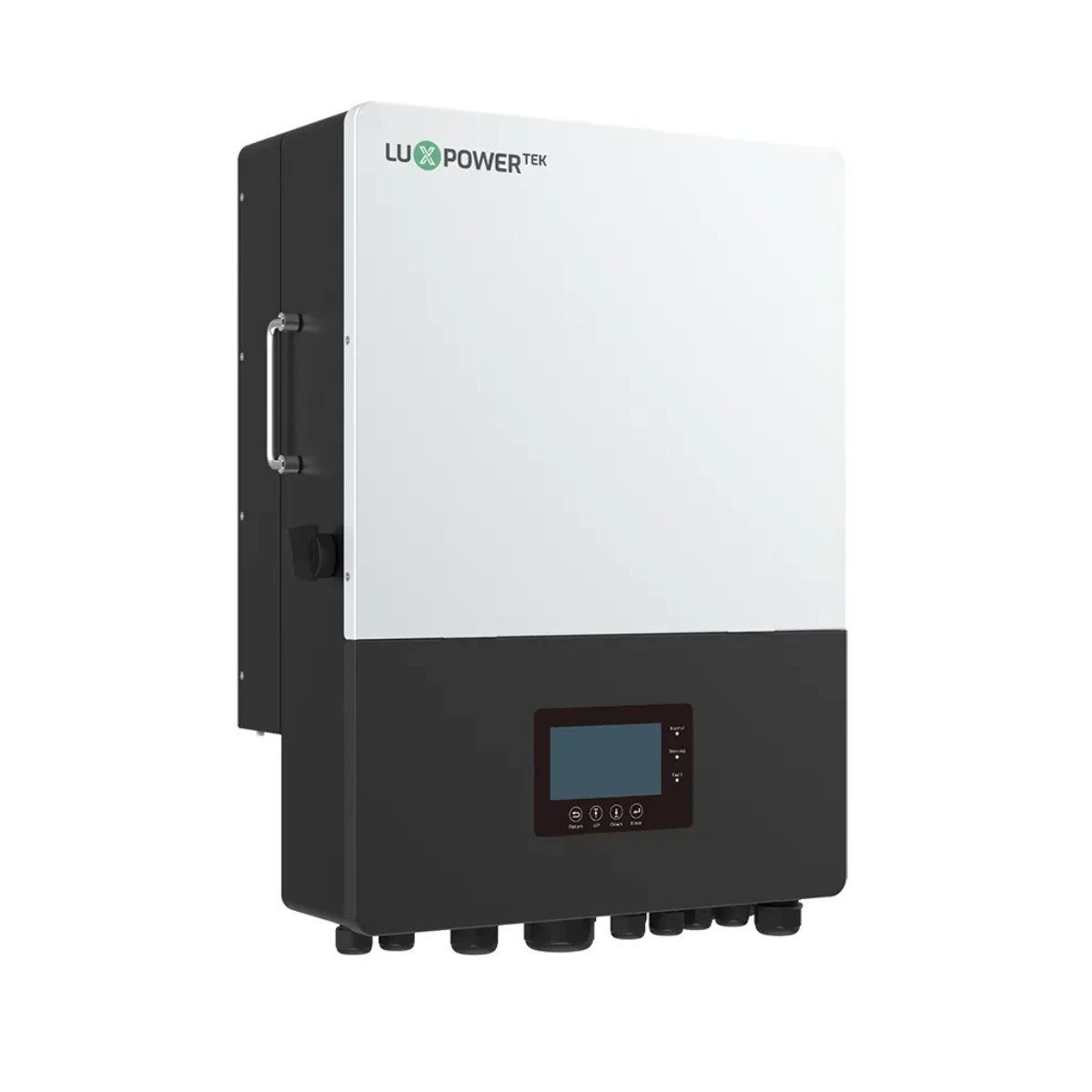

Luxpower 10KW LV Single Phase Hybrid Inverter

Luxpower 10KW LV Single Phase Hybrid Inverter

A recently developed off-grid inverter for solar and energy storage, the LXP Hybrid Inverter is versatile enough to be installed in on-grid solar, off-grid solar, and backup systems. This inverter allows for a programmable and scheduled smart solar energy storage system, aiding in boosting your self-consumption of solar energy, safeguarding your home appliances during grid shortages, and optimizing your energy usage to reduce your overall energy bills.

Product Features:

• Advanced Parallel up to 120Kw
• Separate Generator Interface Available
• Transformerless Design
• Colour LCD, IP65
• Self-consumption mode: Solar power will be utilized to meet the household load initially; any surplus solar power will then be directed to charge the battery. Once the battery is fully charged, any excess solar power can be fed into the grid.
• Force charge and discharge mode: The Off-Grid Solar Inverter will charge or discharge the battery based on the user-set time parameters.
• Charge first mode: Solar power will be employed to charge the battery initially, followed by meeting the household load, and finally, any remaining power will be fed into the grid. This off-grid inverter mode is particularly suitable for areas where grid power supply is unreliable.
• The LXP Off-Grid Solar Inverter MG series supports parallel connection functionality.

Specifications:

• INPUT (PV DC):
  • Max. PV array power(W): 15000
  • Rated PV input voltage(V): 360
  • Number of independent MPPT inputs: 2
  • PV input voltage range(V): 100 - 600
  • MPPT voltage range(V): 120 - 480
  • Start-up voltage(V): 140
  • Max. PV input current per MPPT(A): 25/25
  • Max. PV short-circuit current input per MPPT(A): 31/31
• Battery:
  • Compatible battery type: Lithium-ion/Lead-Acid
  • Rated battery voltage(Lithium-ion/Lead-Acid)(V): 48
  • Battery voltage range(V): 40 - 60
  • Max. charging/discharging current(A): 210

  • Max. charging/discharging power(W): 10000
• Grid:
  • Rated AC voltage(V): 230
  • Rated AC frequency(Hz): 50
  • Rated AC output current(A): 43.5
  • Rated AC output power(W): 10000
  • Max. AC intput current(A): 90
  • Max. AC intput power(W): 20700
  • PF: 0.99
  • THDI: <3%
  • Rated AC current of BYPASS relays(A): 90
