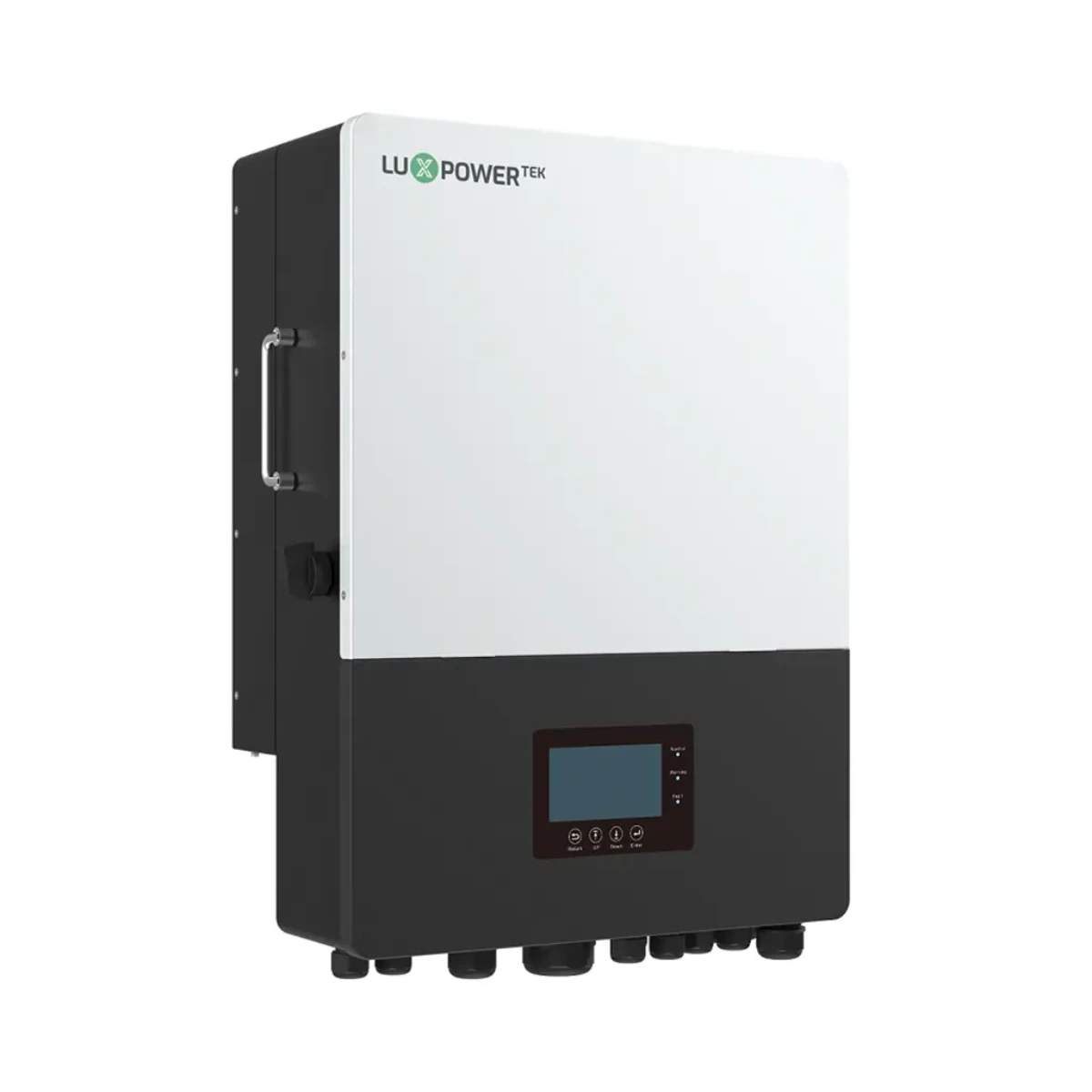

Lux Power 12KW Single Phase Hybrid Inverter

Lux Power 12KW Single Phase Hybrid Inverter

A recently developed off-grid inverter for solar and energy storage, the LXP Hybrid Inverter is versatile enough to be installed in on-grid solar, off-grid solar, and backup systems. This inverter allows for a programmable and scheduled smart solar energy storage system, aiding in boosting your self-consumption of solar energy, safeguarding your home appliances during grid shortages, and optimizing your energy usage to reduce your overall energy bills.

Product Features:

• Parallel up to 10 Units
• Separate Generator Interface Available
• Transformerless Design
• AC Coupling Function
• Self-consumption mode: Solar power will be utilized to meet the household load initially; any surplus solar power will then be directed to charge the battery. Once the battery is fully charged, any excess solar power can be fed into the grid.
• Force charge and discharge mode: The Off-Grid Solar Inverter will charge or discharge the battery based on the user-set time parameters.
• Charge first mode: Solar power will be employed to charge the battery initially, followed by meeting the household load, and finally, any remaining power will be fed into the grid. This off-grid inverter mode is particularly suitable for areas where grid power supply is unreliable.
• The LXP Off-Grid Solar Inverter MG series supports parallel connection functionality.

Specifications:

• Nominal Power: 12 000W
• Nominal AC Voltage: 240VAC
• Operating Voltage Range: 180VAC-270VAC
• Maximum Continuous AC Current: 50A @ 240VAC
• Compatible Battery Type: Lead-acid / Lithium
• Max DC Input for Single MPPT: 12 000W / 7 000W / 7 000W
• Maximum PV Input: 18 000W
• DC Input Voltage Range: 100VDC-600VDC
• Nominal DC Input Voltage: 360VDC
• Full Power MPPT Voltage Range: 230VDC-500VDC
• Maximum DC Input Current: 25A / 15A / 15A
• MPPT Number / Strings per MPPT: 3(2/1/1)
• UPS Max Output Power: 10 000W
• UPS Nominal Output Voltage: 240VAC
• Switching Time: <20ms
• Peak Power: 14Kw 10Min / 16Kw 5 Min / 20Kw 500ms
