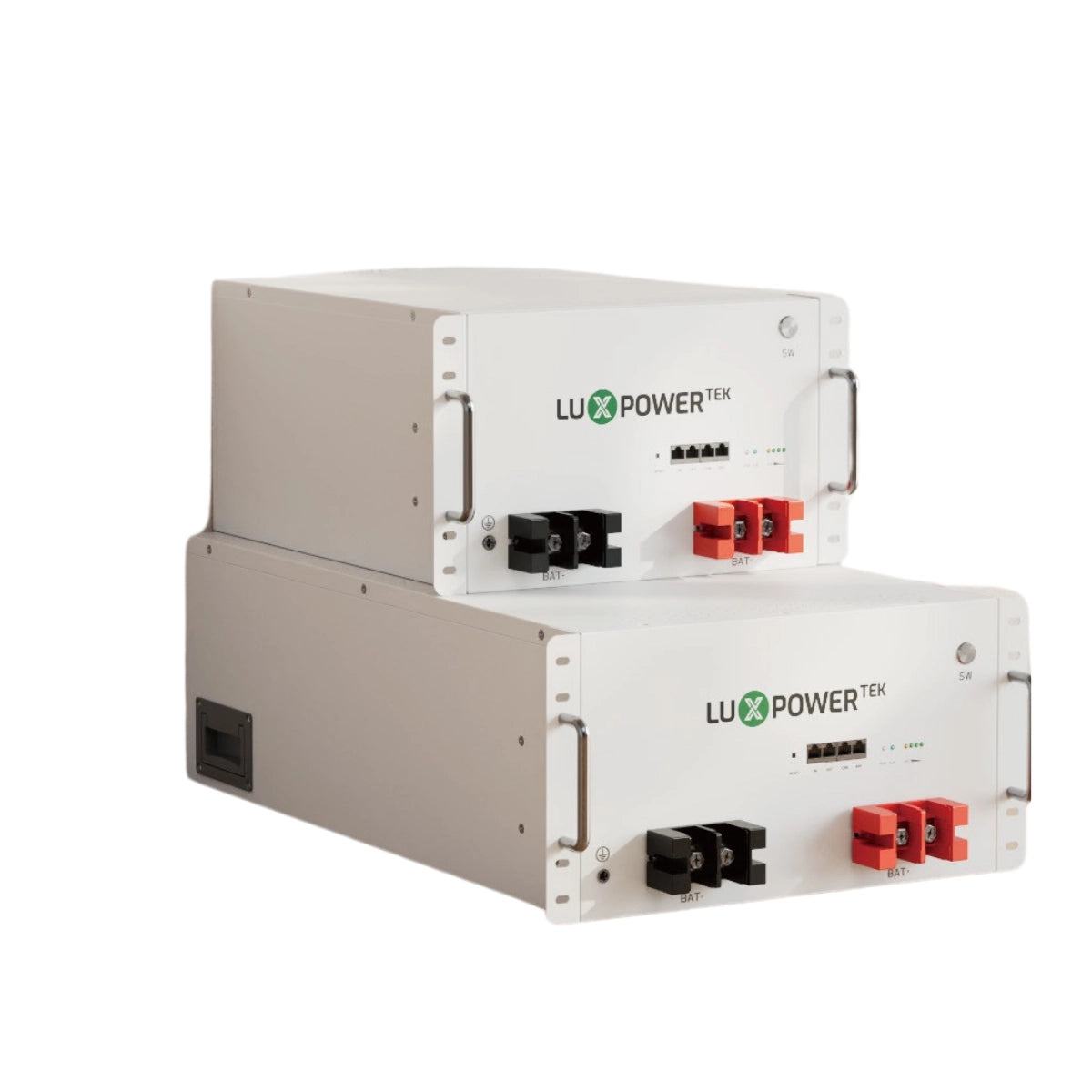

Lux Power LV Battery Lithium Ion Low Voltage 15Kwh 51.2V 300Ah

Lux Power LV Battery Lithium Ion Low Voltage 15Kwh 51.2V 300Ah

R 25,657.00
R 25,657.00
Sale Sold out
Tax included. Shipping calculated at checkout.

Lux Power LV Battery Lithium Ion Low Voltage 15Kwh 51.2V 300Ah Rack, Wall & Floor Mount

Streamline your energy storage setup with a high-performance, low-voltage lithium battery designed for maximum scalability and reliability. Capable of supporting up to 35 units in parallel without any additional control hardware, this system effortlessly expands alongside your power needs. It features a robust 0.5C charge/discharge rate with a 140A current, a dependable 6000-cycle lifespan, and a seamless hot-swap design that ensures offline or online slave units never disrupt ongoing operations. Complete with multi-level Smart BMS protection, flexible mounting options, and wide voltage choices, it serves as the ultimate drop-in replacement for traditional lead-acid systems.

Product Features:

  • Massive Parallel Scalability: Connect up to 35 units in parallel with no extra devices required for larger systems.
  • Hot-Swap Capable: Slave batteries going offline or coming online does not disrupt system operation.
  • Flexible Installation: Versatile design supports rack-mounted, wall-mounted, or floor-standing configurations.
  • Remote Maintenance: Easily manage updates with remote firmware upgrades, diagnostics, and built-in backup protection.
  • High-Efficiency Power: Optimized 0.5C charge/discharge rate delivering a robust 140A current capacity.
  • Longevity & Warranty: Long-lasting performance rated for 6000 cycles, backed by a 5-year warranty.
  • Lead-Acid Replacement: Available in 25.6V and 51.2V voltage options to modernize legacy setups.
  • Smart BMS Protection: Integrated multi-level safety guarding against overcharge, over-discharge, and short circuits.

PRODUCT SPECIFICATIONS

- Cell Type: LFP
- Rated Energy: 15kWh
- Rated Capacity: 300 Ah
- - Rated Voltage: 51.2V
- Charge / Discharge Current: 140A / 140A
- Parallel: Up to 35 units parallelable w/o extra device needed, slave battery drops offline or come back alive does not affect system running
- IP Level: IP20
- Dimension (W × H × D): 706 × 452 × 225 mm
- Weight: 98 kg
- Communication: CAN / RS485
- Humidity: 5% ~ 85%RH (No condensation)
- Work Temperature: -20 ~ +55°C
- Storage Temperature: -10 ~ +35°C
- Remote Maintenance: Flexible remote upgrade,
Original firmware backup to prevent upgrade failure
- Warranty *: 5 years / 6000 cycles

IMPORTANT NOTICE

Please ensure that the battery bank's power and storage capacity is sufficient for the inverter and installation requirements.

This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards.

Crystal Communications and its Supplier will not be held liable for any product malfunctions as a result of incorrectly installed systems.

Technical specifications and general features are provided on our website, however, as individual needs and requirements may differ, it is recommended that our sales team is contacted for any specific questions before a purchase is made to ensure that the item being purchased will satisfy your requirements.

The images shown are for illustration purposes only and may not be an exact representation of the product.

Crystal Communications (Pty) Ltd may not have all the specific items or quantities of stock you have requested. Our dedicated Customer Service Team will use our extensive network to try to source the stock for you ASAP. You will be notified within 24 hours if we cannot source the required item, and a full refund will be processed on your order. Should you wish to contact us directly, please call 0118670488 or email sales@crystalcom.co.za
