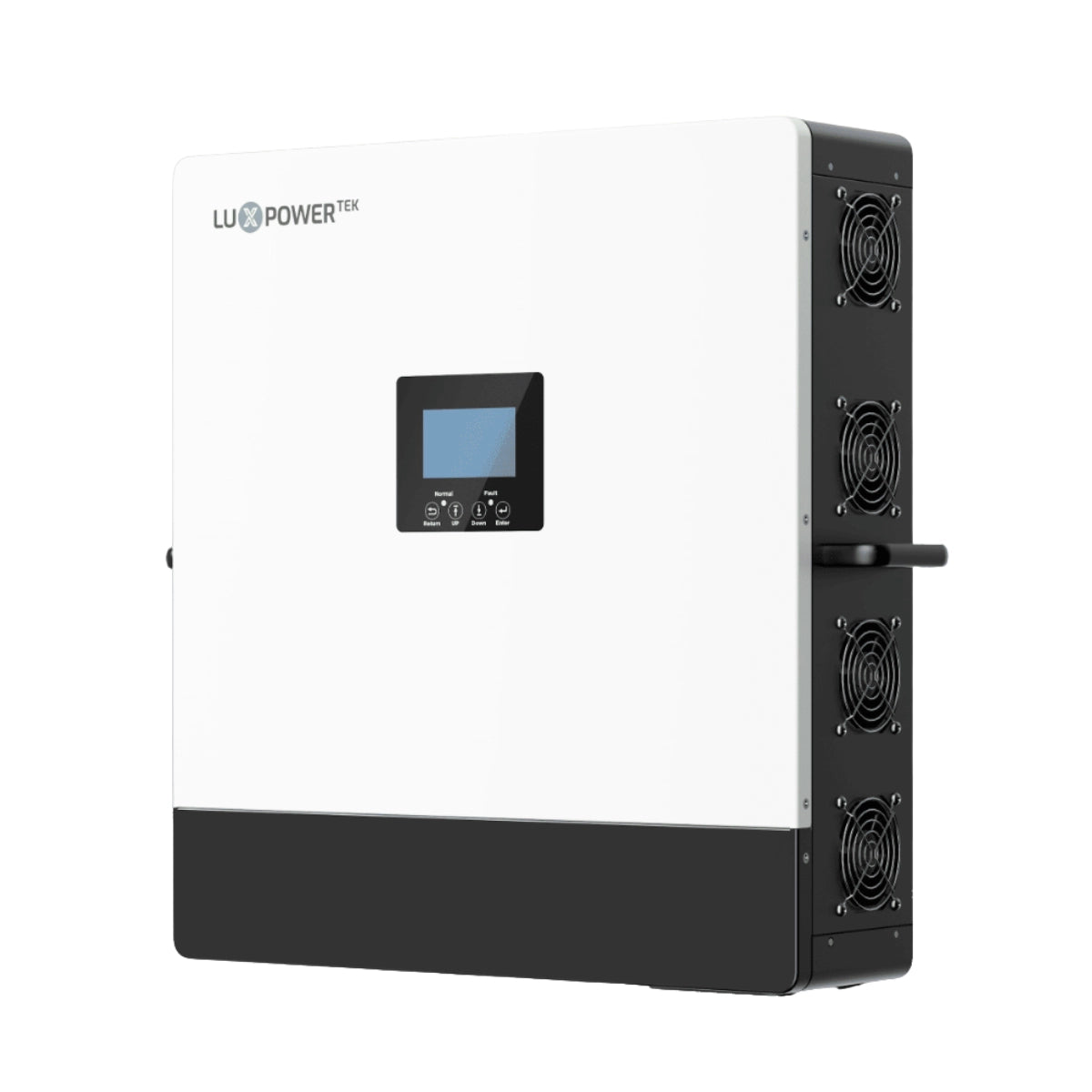

Luxpower Inverter 14Kw Off Grid ECO Hybrid Single Phase CT & WIFI Included (New Version)

Luxpower Inverter 14Kw Off Grid ECO Hybrid Single Phase CT & WIFI Included (New Version)

R 18,412.00
R 18,412.00
Sale Sold out
Tax included. Shipping calculated at checkout.

Luxpower 14kW Off-Grid ECO Hybrid Inverter | Single Phase (New Version)

The SNA-EU 14000 by Luxpower is a powerful and intelligent single-phase hybrid inverter designed to handle high-demand energy systems. With an impressive 14kW output power, support for up to 24kW PV input, and a massive maximum charging/discharging current of 250A, this inverter is built for peak performance and scalability. It supports up to 16 units in parallel and integrates seamlessly with solar, grid, generator, and battery sources—making it the ultimate solution for both residential and commercial off-grid and backup applications.

Product Features:

  • High PV Capacity: 2 MPPT trackers with 4 strings, supporting a maximum of 24kW PV input for superior solar harvesting.
  • Massive Current Handling: Maximum charging and discharging current of 250A to quickly manage large battery banks.
  • Powerful Off-Grid Performance: Delivers reliable 12kW–14kW output power for heavy-duty off-grid applications.
  • Dual AC Output Ports: Optimized for smart load management and multiple load connections.
  • Integrated Safety: Features a built-in load breaker and battery breaker for simplified installation and enhanced protection.
  • Smart Battery Wake-up: PV, AC, and Generator sources can all "wake up" a depleted battery automatically.
  • Extreme Scalability: Supports up to 16 units in parallel, allowing for massive system expansion.
  • Dedicated Generator Port: Includes a specific port for generators with support for up to 19.2kW Gen/AC coupling input.
  • Automatic Gen Control: Features Auto Generator Start and Stop control for seamless backup management.
  • Monitoring Included: CT clamps and Wi-Fi module are included for real-time remote monitoring and configuration.

PRODUCT SPECIFICATIONS

INPUT (PV DC)
- Max. PV input power (W): 24000 (12000/12000)
- Rated PV input voltage (V):320
- Number of independent MPPT inputs: Charge: 2/(2:2)
- PV input voltage range (V): 100-480
- MPPT voltage range (V): 120-440
- Start-up voltage (V): 100

Battery
Compatible battery type: Lithium-ion/Lead-Acid
Rated battery voltage (V): 48/51.2
Battery voltage range (V): 46.4~60/38.4~60
Max. charging / discharging current (A): 250

Grid
- Rated AC voltage (V): 230
- AC Start-up Voltage: 90
- Acceptable Input Voltage Range (V): 130~280
- Rated AC frequency (Hz): 50/600
- Rated AC input current (A): 100

Efficiency
- Max. efficiency: 93.5%
- Max. charging / discharging efficiency: 93.0%
- Max. MPPT efficiency: 99.0%

General
- Dimensions ( W*H*D mm ): 530*830*150mm / 17.72*25.59*5.9 in
- Weight: 43.5kg / 95.9lbs
- Ingress protection rating: IP20
- Operating environment temperature range(°C): 0~45
- Storage temperature range(°C): -15~60

IMPORTANT NOTICE

Please ensure that the battery bank's power and storage capacity is sufficient for the inverter and installation requirements.

This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. Crystal Communications and its Supplier will not be held liable for any product malfunctions as a result of incorrectly installed systems.

Technical specifications and general features are provided on our website, however, as individual needs and requirements may differ, it is recommended that our sales team is contacted for any specific questions before a purchase is made to ensure that the item being purchased will satisfy your requirements.

The images shown are for illustration purposes only and may not be an exact representation of the product.

Crystal Communications (Pty) Ltd may not have all the specific items or quantities of stock you have requested. Our dedicated Customer Service Team will use our extensive network to try to source the stock for you ASAP. You will be notified within 24 hours if we cannot source the required item, and a full refund will be processed on your order. Should you wish to contact us directly, please call 0118670488 or email sales@crystalcom.co.za
