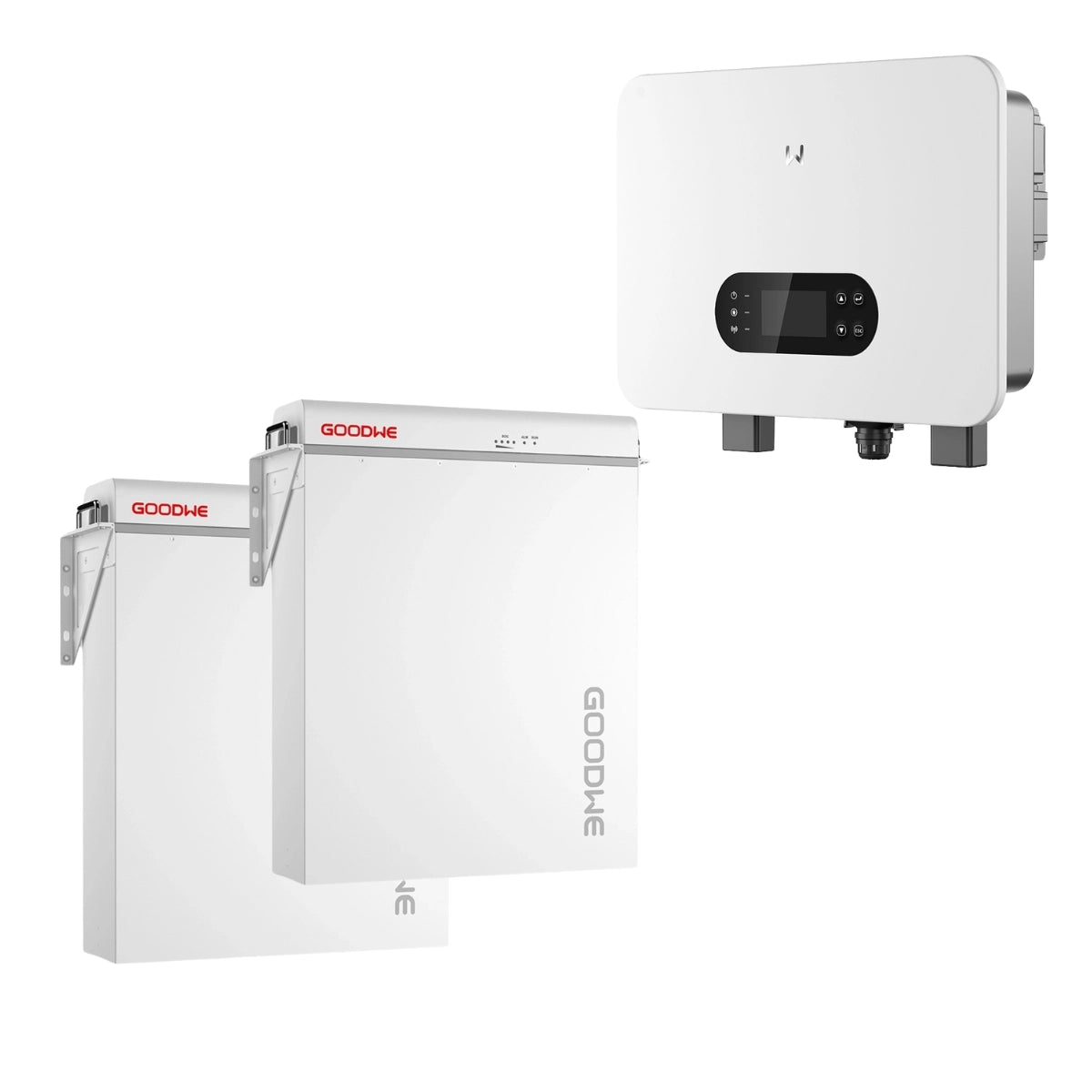

Upgrade your energy independence with this Combo, a premium solar storage solution combining the GoodWe ES Uniq 10kW Hybrid Inverter with two GoodWe Lynx A5 batteries (5kWh each) for a total of 10kWh capacity (9.6kWh usable).
Product Features:
GoodWe ES Uniq 10kW Hybrid Inverter
- 3-in-1 port for generator, smart loads & grid inverter.
- Micro-grid ready & supports parallel operation of up to 6 inverters.
- IP66 outdoor-rated protection for all-weather installation.
- Supports 200% PV oversizing with dual MPPT trackers.
- <4ms seamless backup switching during power outages.
- Smart load management & intuitive LCD touchscreen + app monitoring.
2 x GoodWe Lynx A5 Batteries (10kWh total / 9.6kWh usable)
- Safe & durable LiFePO₄ chemistry with over 6000 cycles.
- Compact, modular design supporting up to 30 units in parallel (up to 150kWh).
- Integrated Battery Management System (BMS) for safety & efficiency.
- Remote firmware updates & diagnostics when paired with compatible inverter.
- Flexible installation: rack, wall-mounted, or floor-mounted.
- Certified to international safety & environmental standards (UN38.3, IEC62619, RoHS).
Specifications:
Inverter: GoodWe ES Uniq 10kW
- Rated Power: 10.0kW (11.0kW max)
- Battery Voltage Range: 40 – 60V
- Max Charge / Discharge Current: 200A
- Max PV Input: 20kW | 600V | Dual MPPT (2×2 strings)
- AC Output: 10.0kVA nominal | 11.0kVA max | 16.5kVA with grid assist
- Efficiency: 97.6% max | 99.9% MPPT
- Protection: Surge, insulation resistance, anti-islanding, overcurrent, AFCI (optional)
- Ingress Protection: IP66 | Smart fan cooling
- Dimensions / Weight: 560 × 444.5 × 226 mm | 29kg
Battery: GoodWe Lynx A5 (x2)
- Battery Type: LiFePO₄ (Lithium Iron Phosphate)
- Nominal Capacity (per unit): 5.12kWh (5kWh usable)
- Total Capacity (Combo): 10.24kWh (9.6kWh usable)
- Nominal Voltage: 51.2V
- Max Continuous Discharge Power: 7.2kW
- Cycle Life: >6000 cycles @ 90% DoD, 70% SOH
- Dimensions / Weight per unit: 483 × 133 × 559 mm | 44kg
- Ingress Protection: IP20
- Communication: CAN | Remote monitoring supported
- Operating Temp: Charge 0°C to 55°C | Discharge -20°C to 55°C
- Scalability: Up to 30 units (150kWh total)
- Warranty: 10 years
