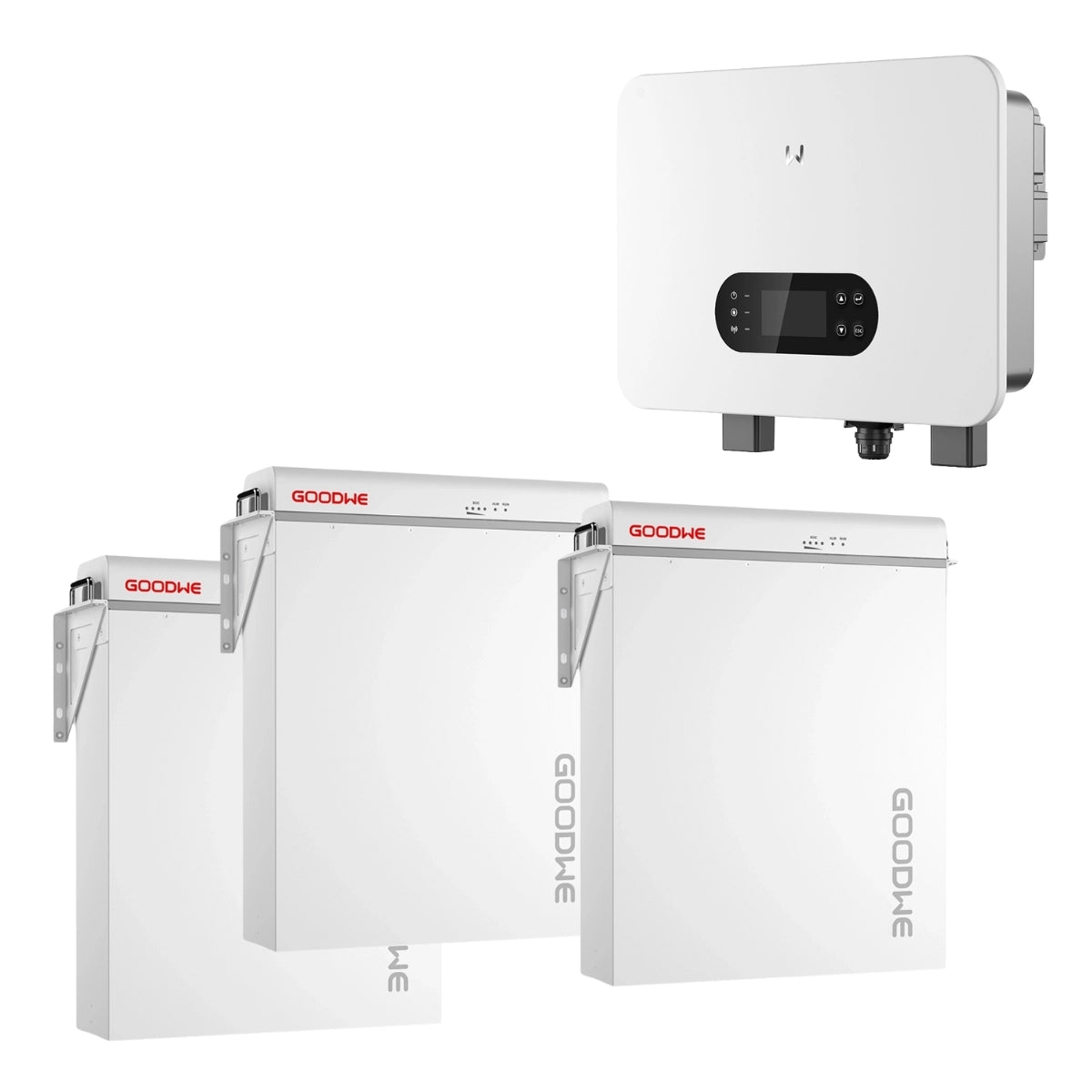

Upgrade your home’s energy independence with the GoodWe 12kW Combo, a premium solar storage solution that pairs the powerful GoodWe ES Uniq 12kW Hybrid Inverter with three GoodWe Lynx A5 lithium batteries (5kWh each) for a total of 15kWh capacity (14.4kWh usable).
Product Features:
GoodWe ES Uniq 12kW Hybrid Inverter (GW12K-ES-C10)
- 3-in-1 port for generator, smart loads & grid inverter.
- Micro-grid ready with support for parallel operation (up to 6 units).
- IP66 outdoor-rated protection for all-weather installation.
- Dual MPPT with 200% PV oversizing capability.
- <4ms seamless backup switching during outages.
- Smart load management, LCD touchscreen, and app-based monitoring.
3 × GoodWe Lynx A5 Batteries (15kWh total / 14.4kWh usable)
- Safe & durable LiFePO₄ chemistry with >6000 cycles.
- Modular, compact design supports up to 30 units in parallel (150kWh).
- Integrated Battery Management System (BMS) for safety & efficiency.
- Remote firmware updates & diagnostics when paired with a GoodWe inverter.
- Flexible installation: rack, wall-mounted, or floor-mounted.
- Certified to UN38.3, IEC62619, RoHS standards.
Specifications:
Inverter: GoodWe ES Uniq 12kW (GW12K-ES-C10)
- Rated Power: 12.0kW (13.2kW max)
- Battery Voltage Range: 40 – 60V
- Max Charge / Discharge Current: 240A
- Max PV Input: 24kW | 600V | Dual MPPT (2×2 strings)
- AC Output (Grid): 12.0kVA nominal | 13.2kVA max | 16.5kVA with grid assist
- AC Output (Backup): 12.0kVA nominal | 13.2kVA max | 24.0kVA surge (10s)
- Efficiency: 97.6% max | 99.9% MPPT
- Protection: Surge, insulation resistance, anti-islanding, overcurrent, AFCI (optional)
- Ingress Protection: IP66 | Natural convection + smart fan cooling
- Dimensions / Weight: 560 × 444.5 × 226 mm | 29kg
Battery: GoodWe Lynx A5 (x3)
- Battery Type: LiFePO₄ (Lithium Iron Phosphate)
- Nominal Capacity (per unit): 5.12kWh (5kWh usable)
- Total Capacity (Combo): 10.24kWh (9.6kWh usable)
- Nominal Voltage: 51.2V
- Max Continuous Discharge Power: 7.2kW
- Cycle Life: >6000 cycles @ 90% DoD, 70% SOH
- Dimensions / Weight per unit: 483 × 133 × 559 mm | 44kg
- Ingress Protection: IP20
- Communication: CAN | Remote monitoring supported
- Operating Temp: Charge 0°C to 55°C | Discharge -20°C to 55°C
- Scalability: Up to 30 units (150kWh total)
- Warranty: 10 years
