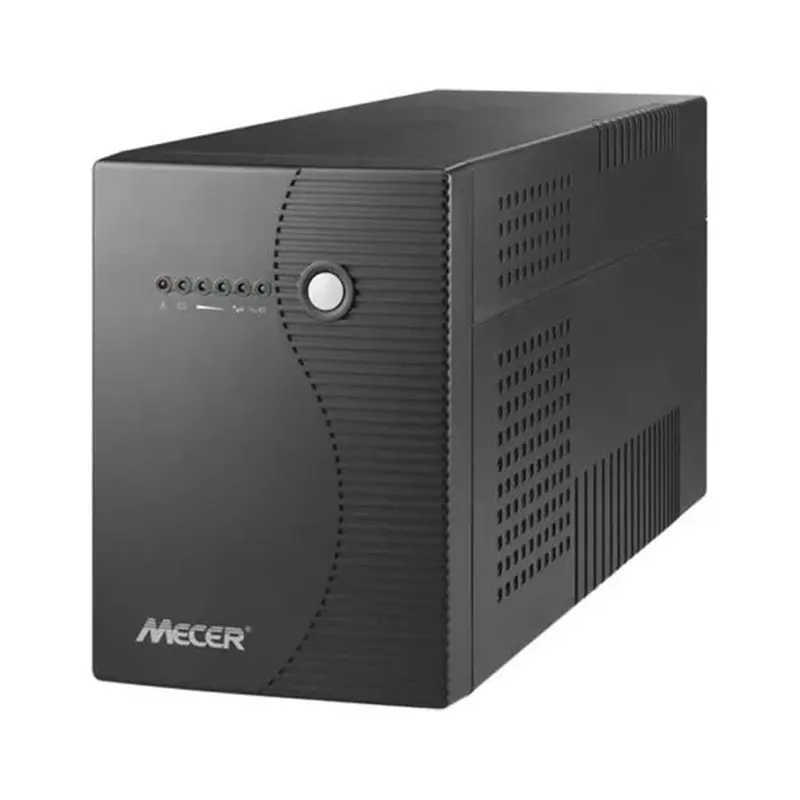

Mecer 1000VA Line Interactive UPS

Input:
- Voltage: 110/120 VAC or 220/230/240 VAC
- Voltage Range: 81-145 VAC / 162-290 VAC
- Frequency Range: 60/50 Hz (auto sensing)
Output:
- AC Voltage Regulation (Batt. Mode): ±10%
- Frequency Range (Batt. Mode): 60 Hz or 50 Hz ±1 Hz
- Transfer Time: Typical 2-6 ms, 10ms max.
- Waveform (Batt. Mode): Simulated Sine Wave
Battery:
- Battery Type & Number: 12 V/7 AH x 2
- Typical Recharge Time: 4-6 hours recover to 90% capacity
Indicators:
- AC Mode: The right green LED lighting & the 2nd to 5th green
- LEDs gradually lighting indicating load level
- Battery Mode: The right green LED lighting & the 2nd to 5th green
- LEDs gradually lighting indicating load level
Fault: Red LED lighting
Protection:
- Full Protection: Overload, discharge, and overcharge protection
Alarm:
- Battery Mode: Sounding every 10 seconds
- Low Battery: Sounding every second
- Overload: Sounding every 0.5 second
- Battery Replacement Alarm: Sounding every 2 seconds
- Fault: Continuously sounding
Physical:
- Dimension, D X W X H(mm): 350 x 146 x 160
- Net Weight (kgs): 8
