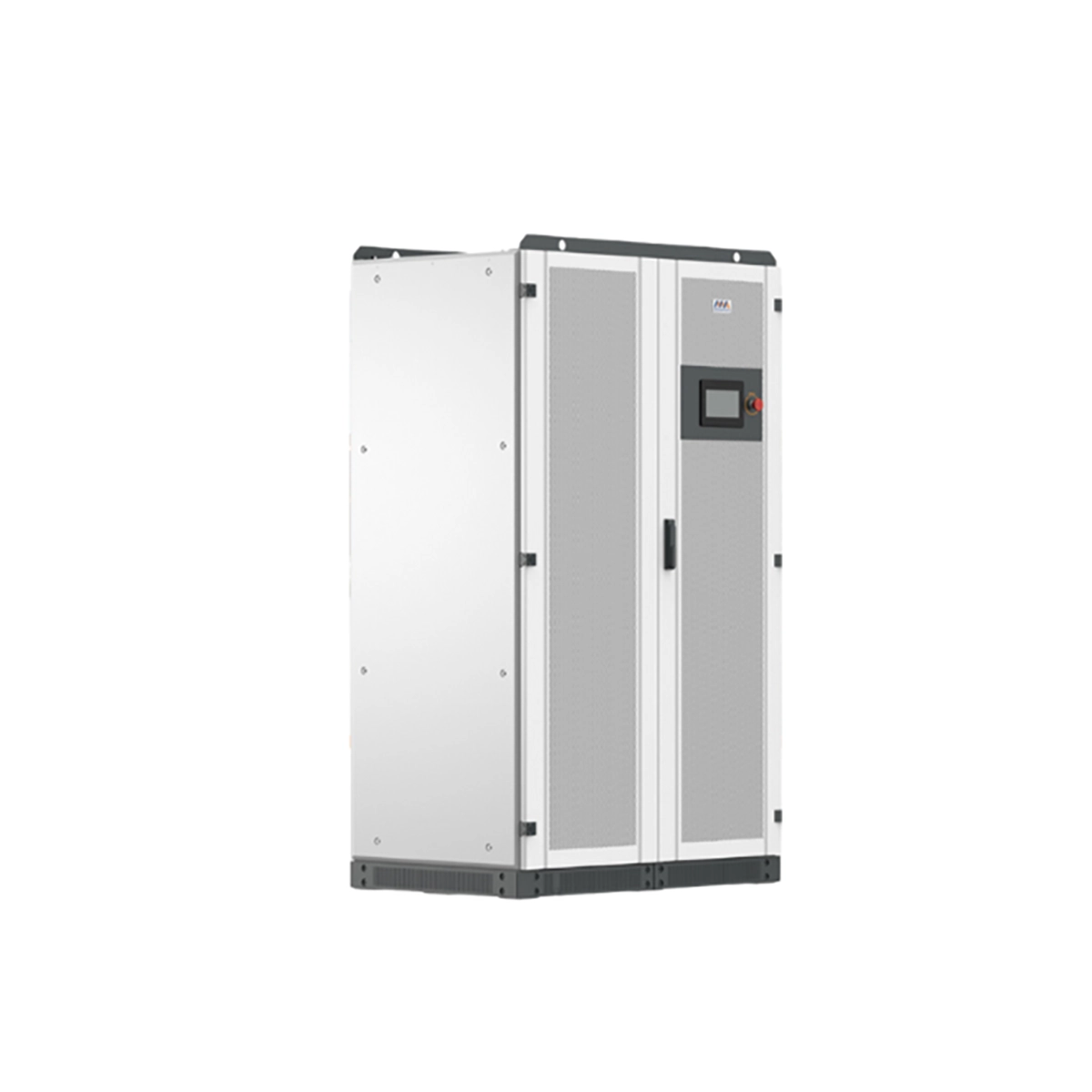

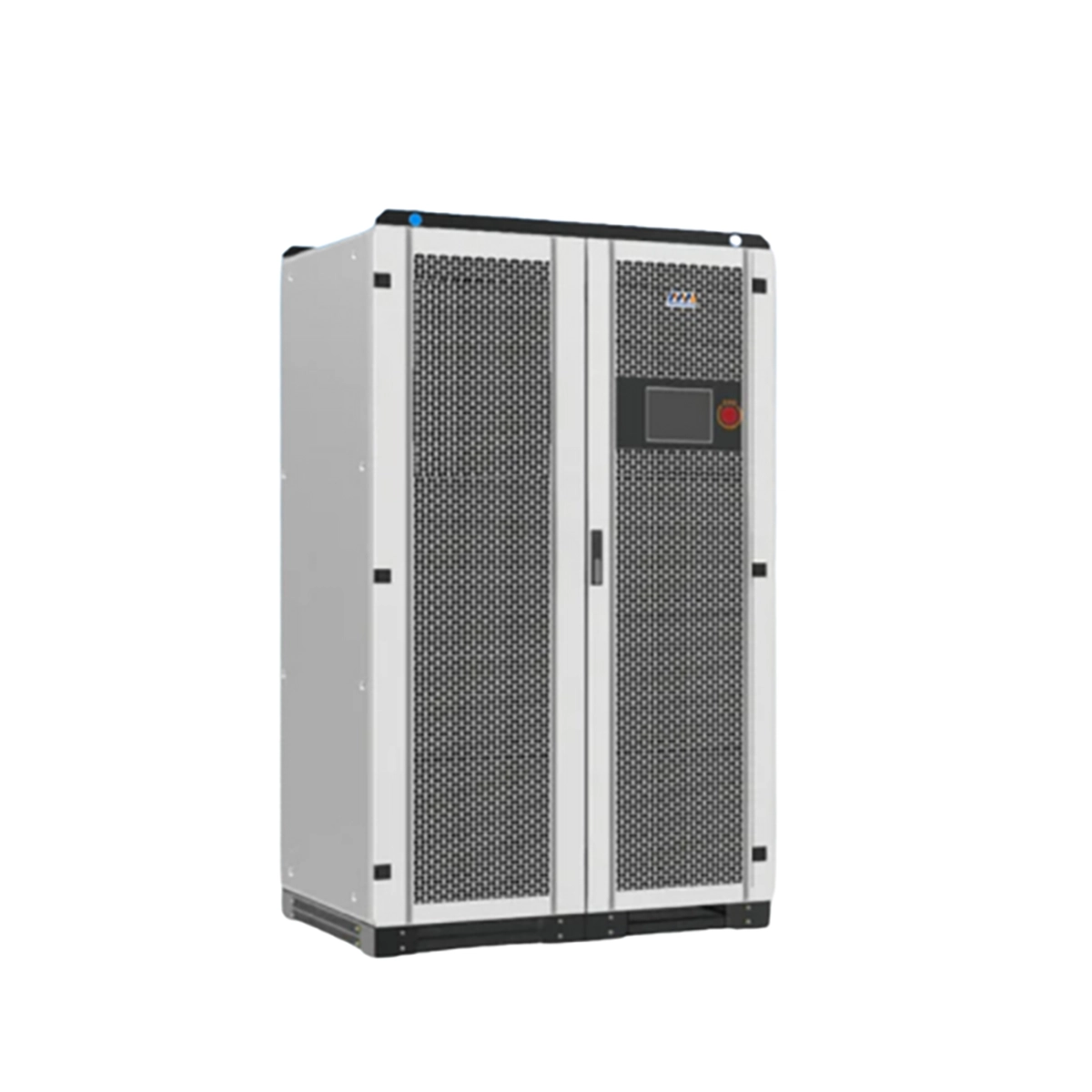

Megarevo MPS Microgrid 3 Phase Hybrid Inverter 150KW – PV 180KW 850V 216A (3 MPPT)

General Data:

• Internal integration
• PV Interfaces
• Battery Interfaces
• Load Interfaces
• Grid Interfaces
• Support simultaneous Single-Phase & Three-Phase Load Power Supply
• Easy expansion supporting PV Flexible Configuration
• Supports On-Grid PV function when Batteries are depleted
• DC-Coupled solution with 2% higher System Efficiency
• Control Power AC; and DC Redundant Power Supply, ensuring reliability
• Certification: South Africa NRS097-2-1:2017

Features

• Internal integration PV interfaces, battery interfaces, load interfaces and grid interfaces
• Support single-phase and three-phase load power supply at the same time.
• Easy expansion, support PV flexible configuration.
• Supports on-grid PV function when the battery is running out of power.
• DC-coupled solution with 2% higher system efficiency.
• Control power AC and DC redundant power supply, the system is more secure and reliable.


Technical Specifications:

AC(on-grid):

• Max output power (kVA): 165
• Rate output power (kW): 150
• Rated voltage(V): 400
• Voltage range (V): 320~460
• Rated current (A): 216
• Rated frequency (Hz): 50/60
• Frequency range (Hz): 45~55/55~65
• THDi: <3%
• Power factor: 1lagging-1leading（Settable）
• AC connection: 3W+N+PE
• Transformer ratio: 270/400

AC(off-grid):

• Max output power (kVA): 165
• Rated power (kW): 150
• Rated voltage (V): 400
• Rated current (A): 216
• THDu: ≤1% linear; or≤5% nonlinear
• Rated frequency (Hz): 50/60
• Overload capacity: 110% long-term

PV input:

• Max.PV input voltage (V): 1,000
• Max.PV power (kW): 120/180/240
• MPPT module quantity: 2/3/4
• MPPT voltage range (V): 250-850
• MPPT voltage range@full load (V): 450-850

Battery:

• Battery voltage range (V): 420~850
• Max. charging power (kW): 120/180/240

General data:

• Dimension W*D*H (mm): 1,200*800*2,050
• Net weight (kg): 1,250/1,280/1,310
• Operation temperature (℃): -30 ~ 55
• Ingress protection: IP20
• Noise emission (dB): <70
• Operating altitude: 5,000m(>3,000 Derating)
• Cooling: Air Cooling

Delivery and Packaging not included and to be calculated on request. Kindly contact our sales team to confirm stock availability and lead times.
